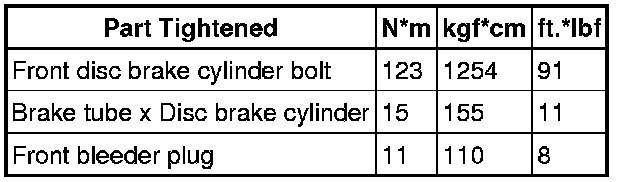

Torque Specifications





SPECIFICATIONS: BRAKE (FRONT): TORQUE SPECIFICATIONS

Front Brake





Front Brake Flexible Hose
