Cylinder Head Assembly

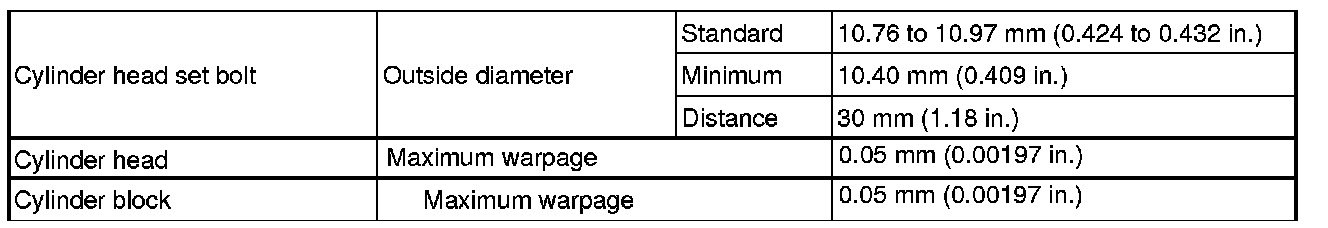

CYLINDER HEAD SUB-ASSEMBLYInstall the cylinder head bolts.
The cylinder head bolts are tightened in 3 successive steps.
Install the plate washers to the cylinder head bolts.
Apply a light coat of engine oil to the threads and under the heads of the cylinder head bolts.
Step 1:
Using several steps, install and uniformly tighten the 10 cylinder head bolts with plate washers in the sequence shown in the illustration.
Torque 39 Nm (398 kgf-cm, 29 ft-lbf)
Mark the front of each cylinder head bolt head with paint.
Step 2:
Tighten the cylinder head bolts 90° in the sequence shown in step 1.
Step 3:
Tighten the cylinder head bolts another 90° in the sequence shown in step 1.
Check that the paint marks are now at a 180° angle to the front.
CYLINDER HEAD
CAMSHAFT BEARING CAP
Install the 21 bolts and tighten them in the order shown in the illustration.
for bolt A - Torque 12 Nm (122 kgf-cm, 9 ft-lbf)
except bolt A - Torque 16 Nm (158 kgf-cm, 11 ft-lbf)
