Torque Specifications





SPECIFICATIONS: 2TR-FE LUBRICATION: TORQUE SPECIFICATIONS

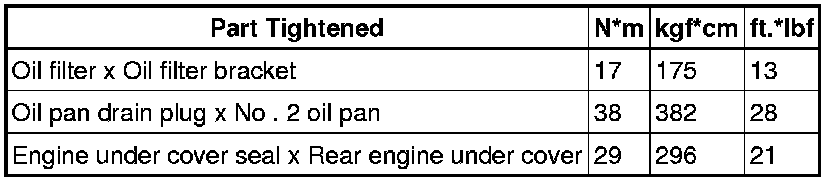

OIL AND OIL FILTER





OIL PRESSURE SWITCH

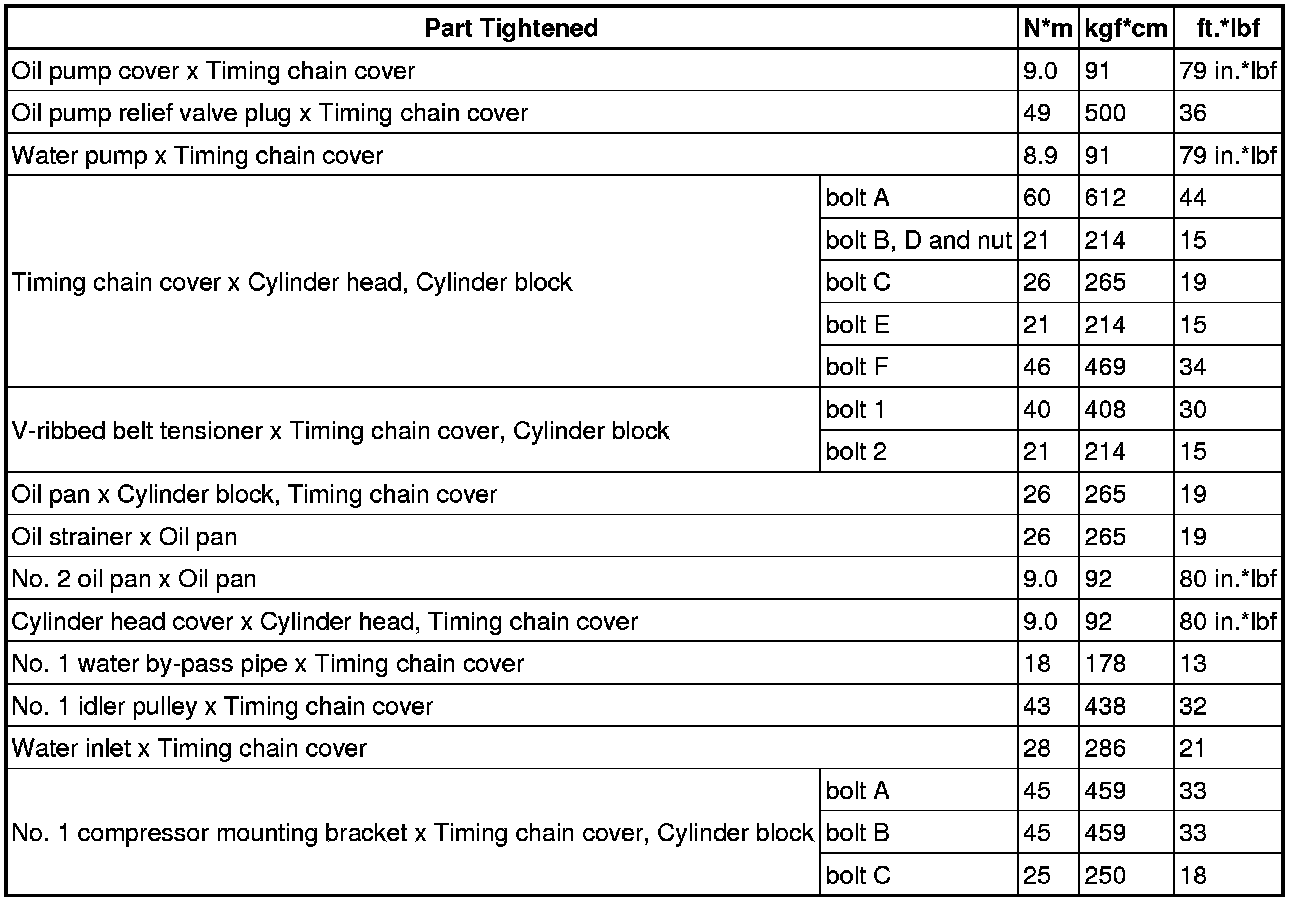

OIL PUMP
