Torque Specifications





SPECIFICATIONS: 2TR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

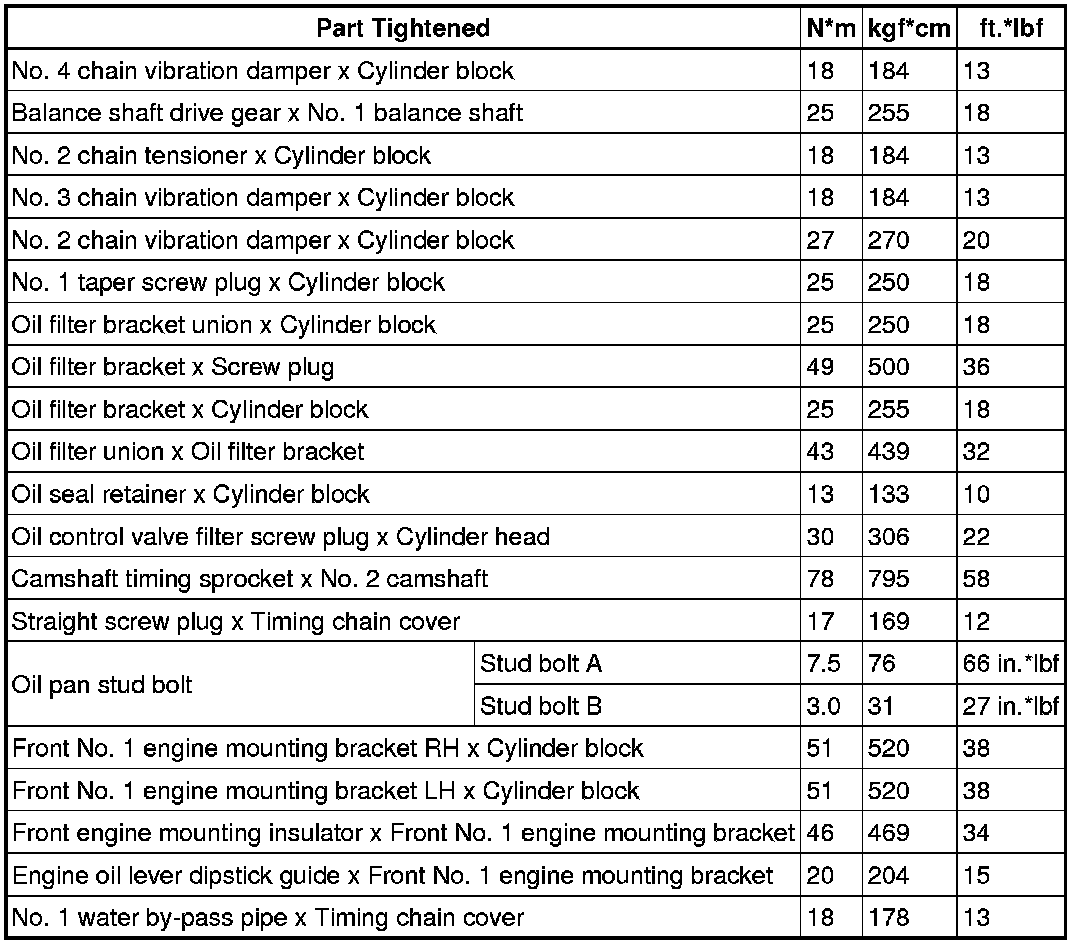

ENGINE

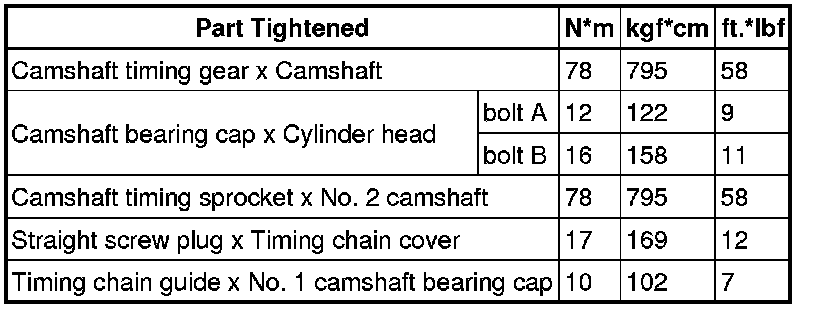

CAMSHAFT

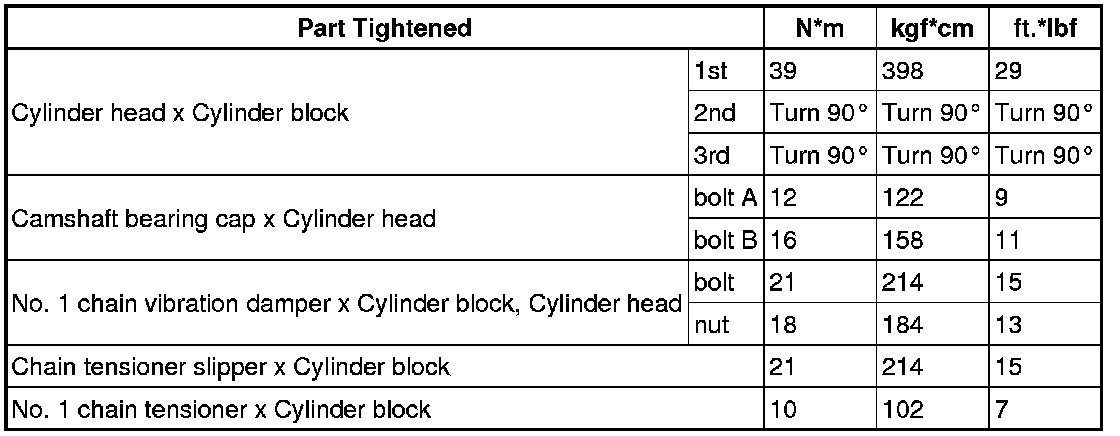

CYLINDER HEAD GASKET





FRONT CRANKSHAFT OIL SEAL





REAR CRANKSHAFT OIL SEAL

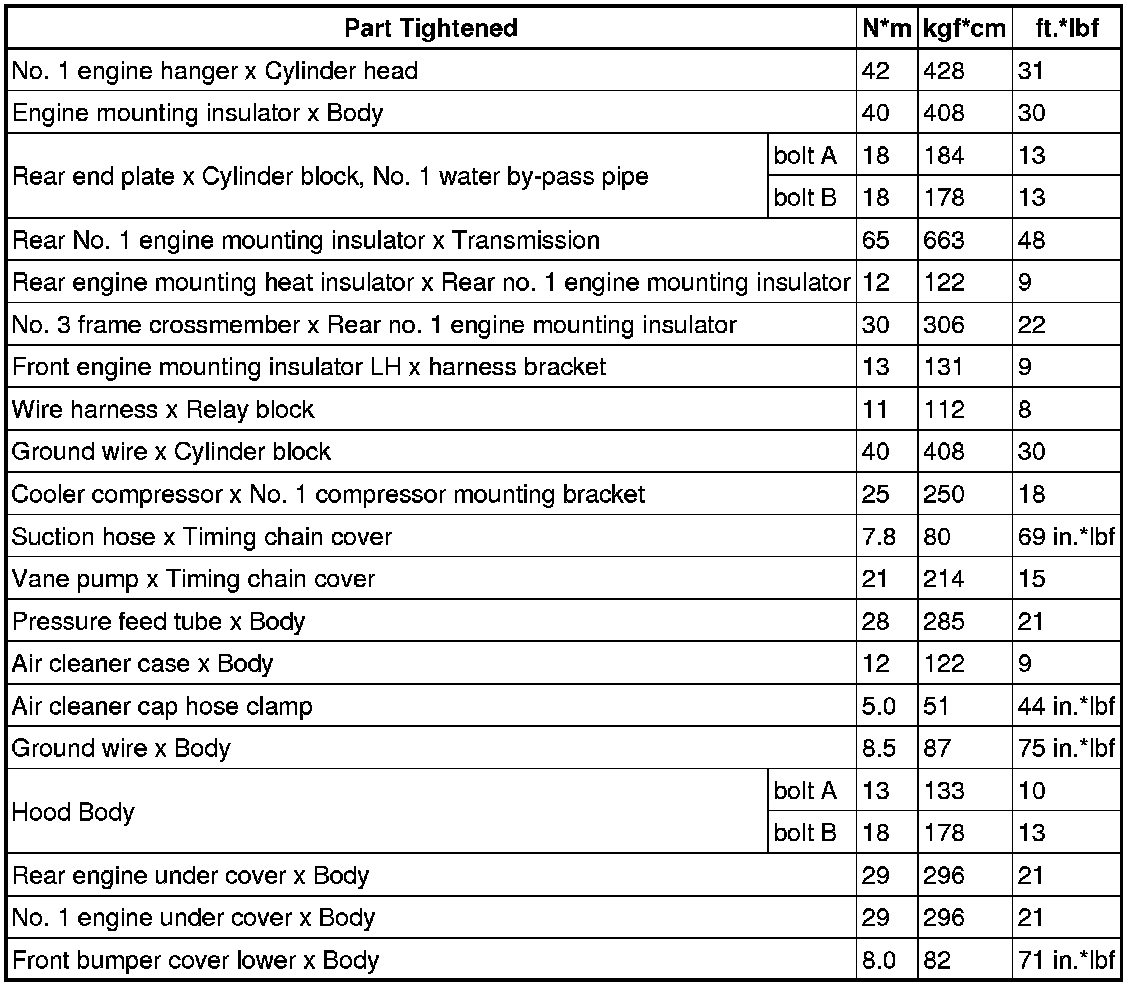

ENGINE ASSEMBLY

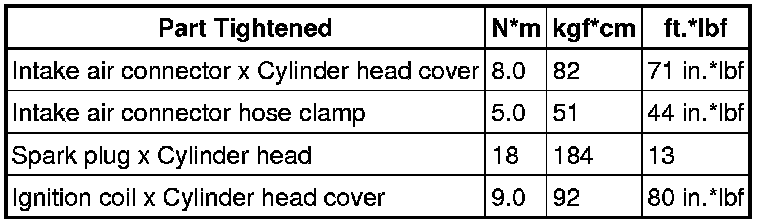

ENGINE UNIT





CYLINDER HEAD

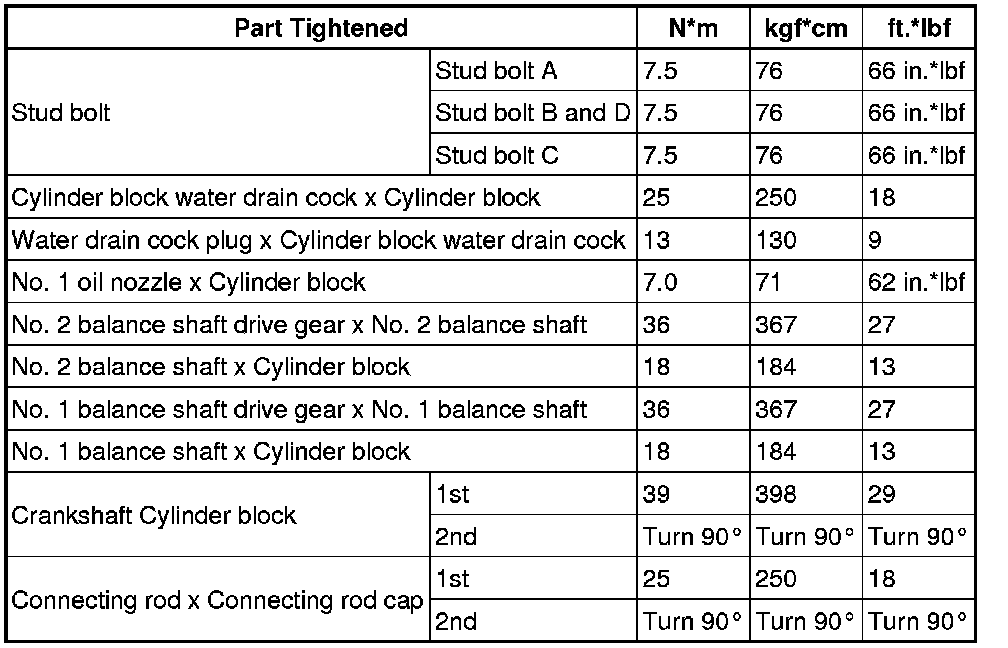

CYLINDER BLOCK
