Removal

A343E AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: REMOVAL

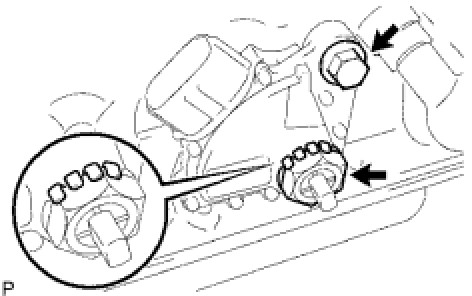

1. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Using a screwdriver, bend the tabs of the lock washer.

(b) Remove the lock nut and lock washer.

(c) Remove the bolt and park/neutral position switch.
