Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH THE TECHSTREAM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) POWER DOOR LOCK CONTROL SYSTEM

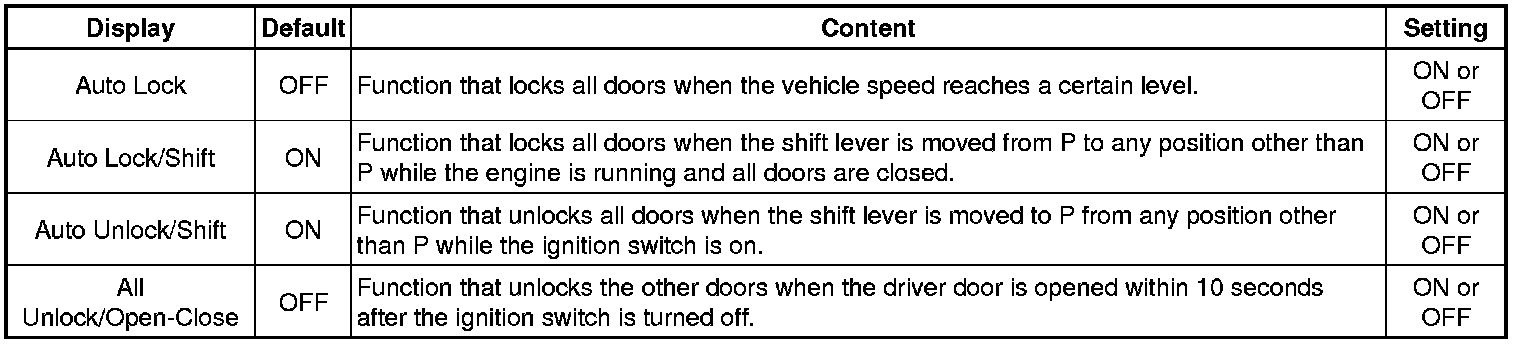

Door Lock

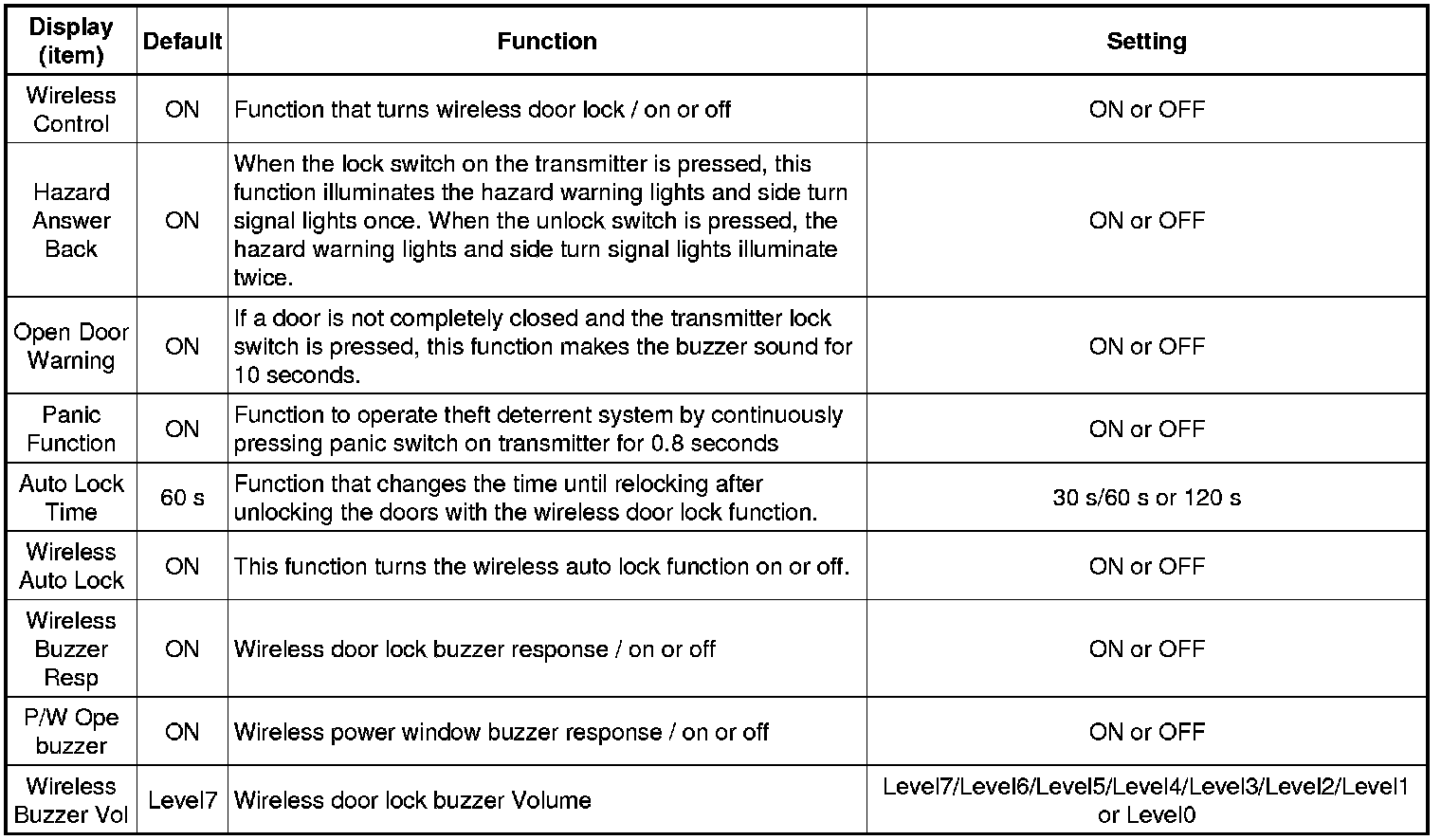

(b) WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)

Wireless Door Lock

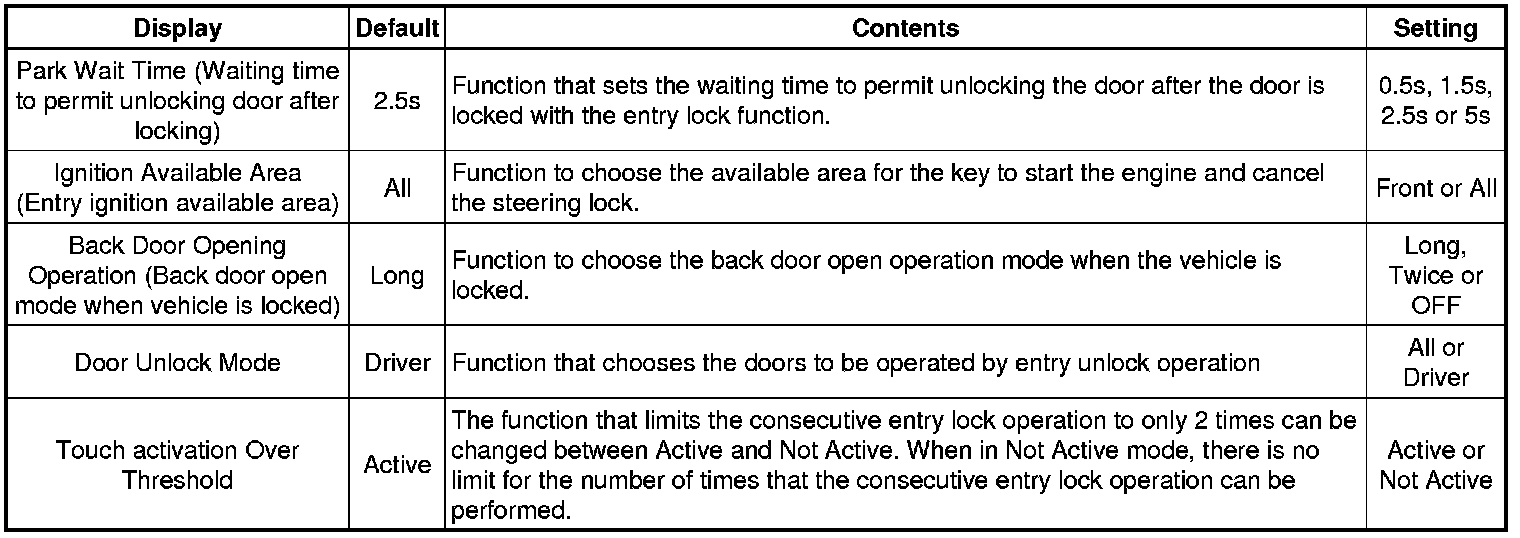

(d) SMART KEY SYSTEM (for Entry Function)

Smart Key

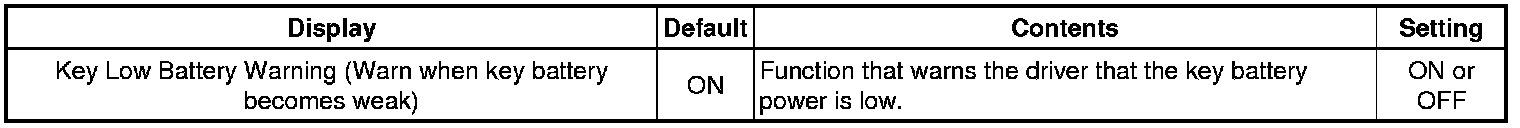

Warning

(1) ENTRY UNLOCK MODE SWITCHING FUNCTION

1. Check that the power source mode is off and the LED on the key is not blinking. Press the lock switch and one of the other switches on the key at the same time for approximately 5 seconds while the key is in the actuation area. When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: all door unlock mode, driver door unlock mode.

NOTICE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

* All door unlock mode (default): When a touch sensor is touched, all the doors unlock.

* Driver door unlock mode: When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

2. The certification ECU receives this signal from the key and changes the smart key system to the appropriate entry unlock mode.

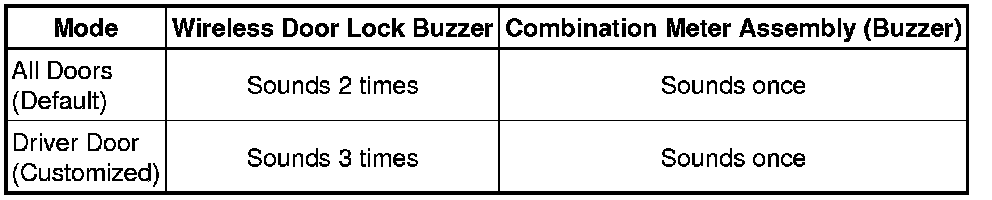

3. The certification ECU sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.

HINT
The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

(2) KEY CANCEL

The key cancel operation disables the following functions:

* Entry Unlock/Lock

* Key Lock-in Prevention

* Entry Back Door Open

* Warning

* Entry Ignition

a. The operation procedures are as follows:

Precondition:

Engine switch off, driver side door closed and unlocked.

i. Unlock the driver side door once with the unlock switch of the key.
ii. Open the driver door within 5 seconds.
iii. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
iv. Close and open the driver door twice within 30 seconds.
(Driver door: Open condition -> Close -> Open -> Close -> Open)
v. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
vi. Close and open the driver door once within 30 seconds.
(Driver door: Open condition -> Close -> Open)
vii. Close the driver door within 5 seconds.
When key cancel is activated, the wireless door lock buzzer sounds twice.
To return to the original condition, perform the procedure again. When the original condition is restored, the wireless door lock buzzer sounds once.

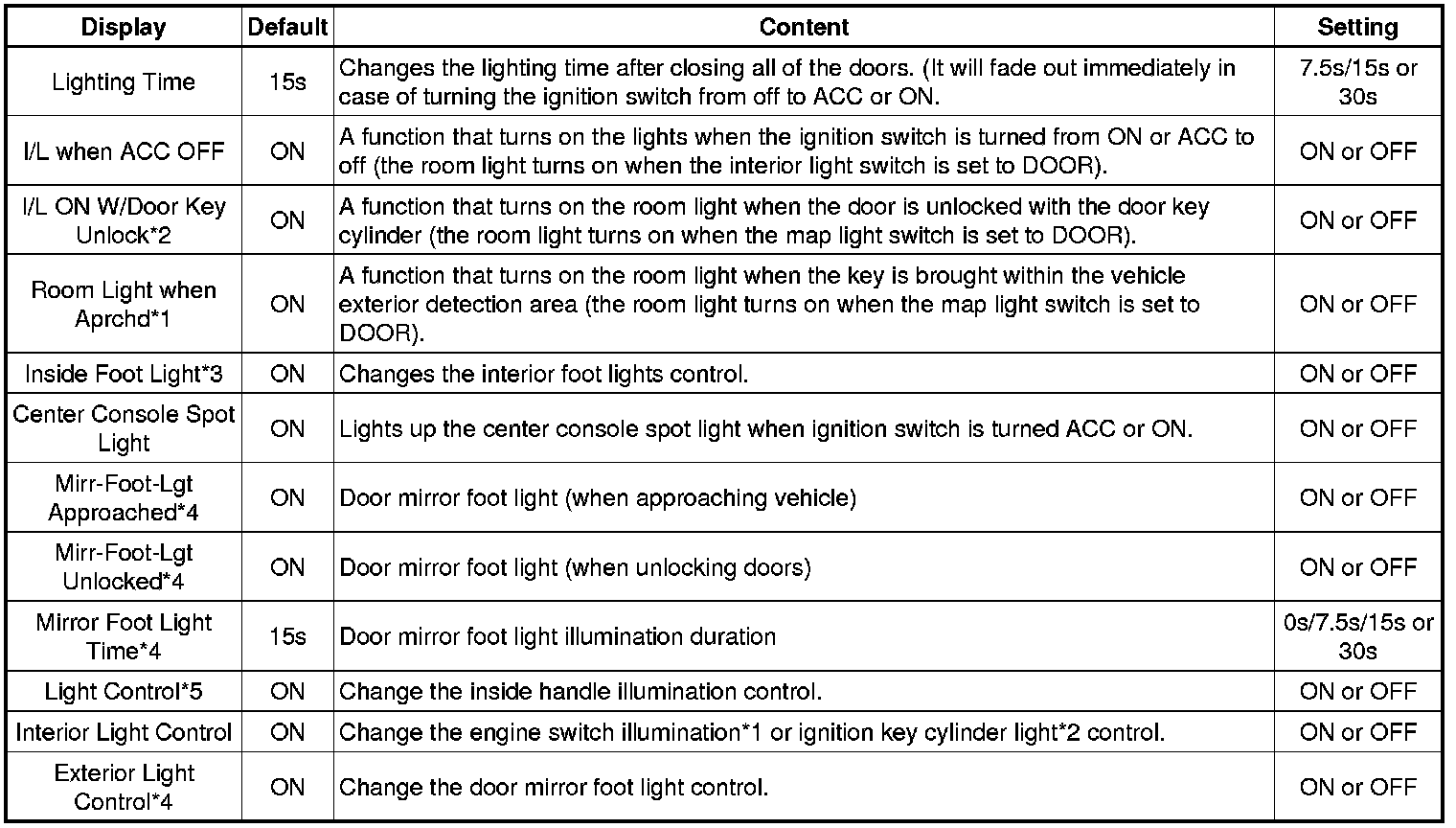

(e) LIGHTING SYSTEM (for Interior)

Illuminated Entry

*1: w/ Smart Key System

*2: w/o Smart Key System

*3: w/ Interior Foot Light

*4: w/ Door Mirror Foot Light

*5: w/ Inside Handle Illumination

(f) METER / GAUGE SYSTEM

Warning

*1: This setting is only valid for the buzzer which sounds at 20 km/h (12 mph) or more.

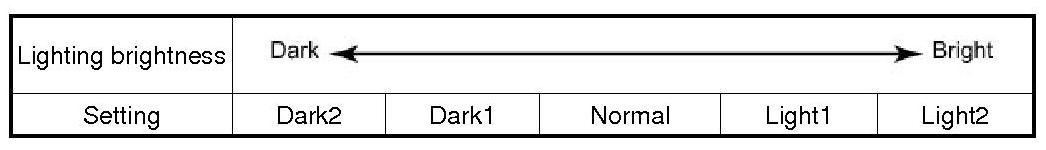

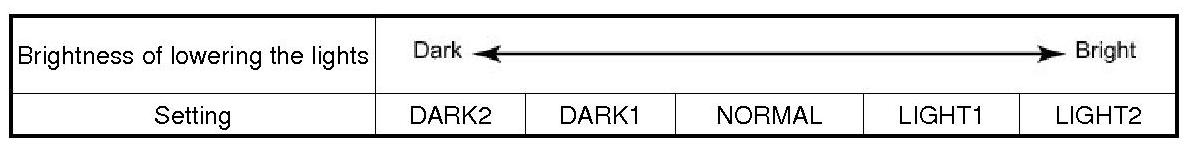

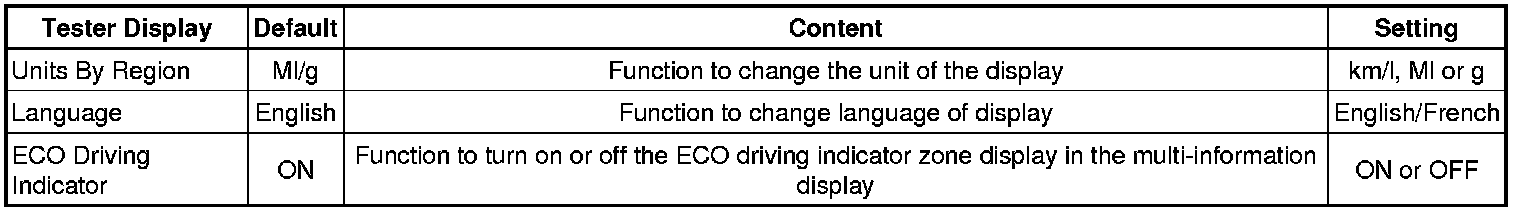

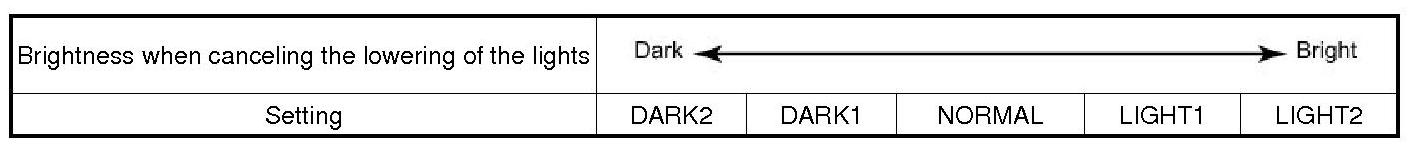

Display

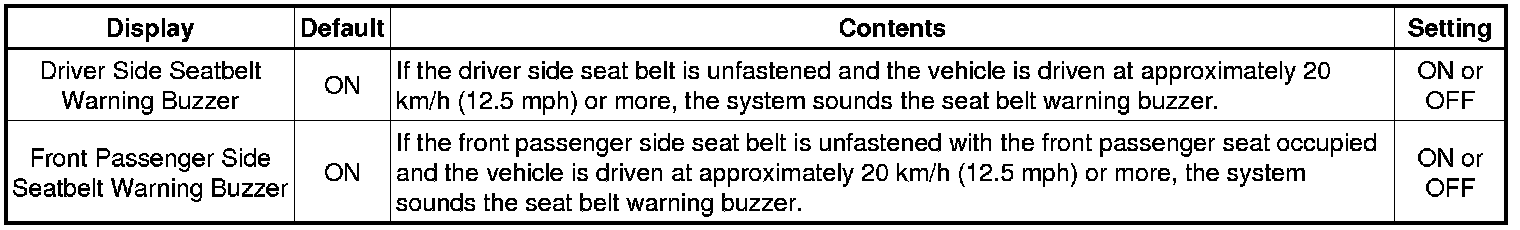

(g) SEAT BELT WARNING SYSTEM

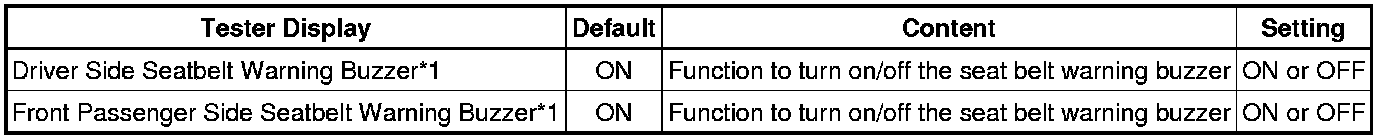

Seat Belt Warning

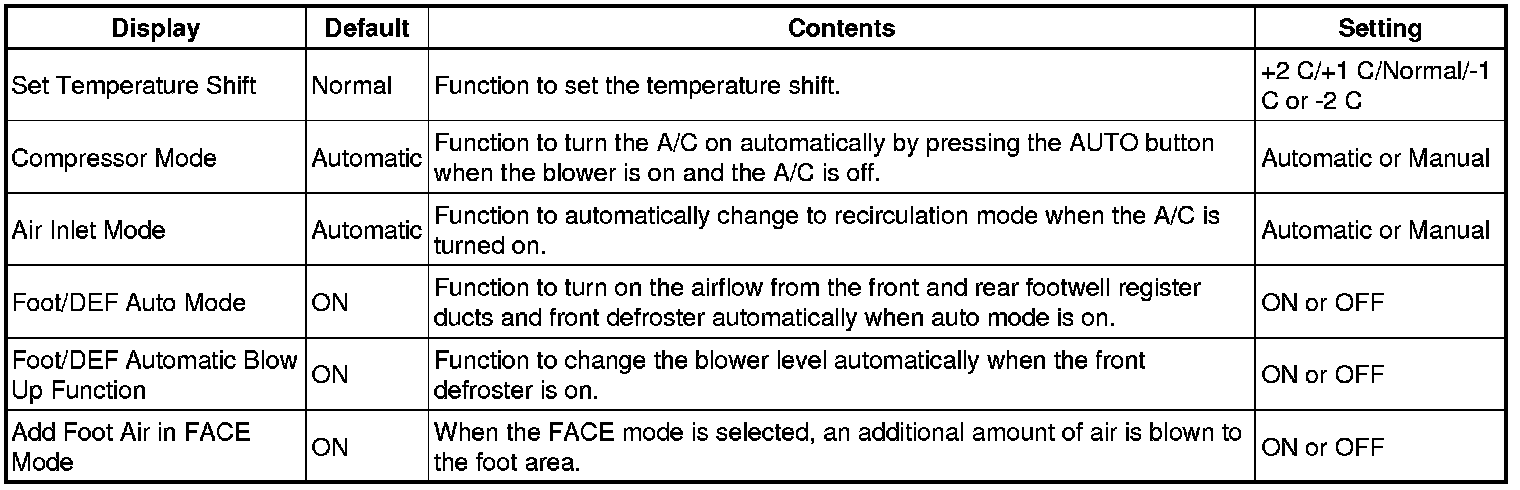

(h) AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)

Air Conditioner

(i) POWER WINDOW CONTROL SYSTEM

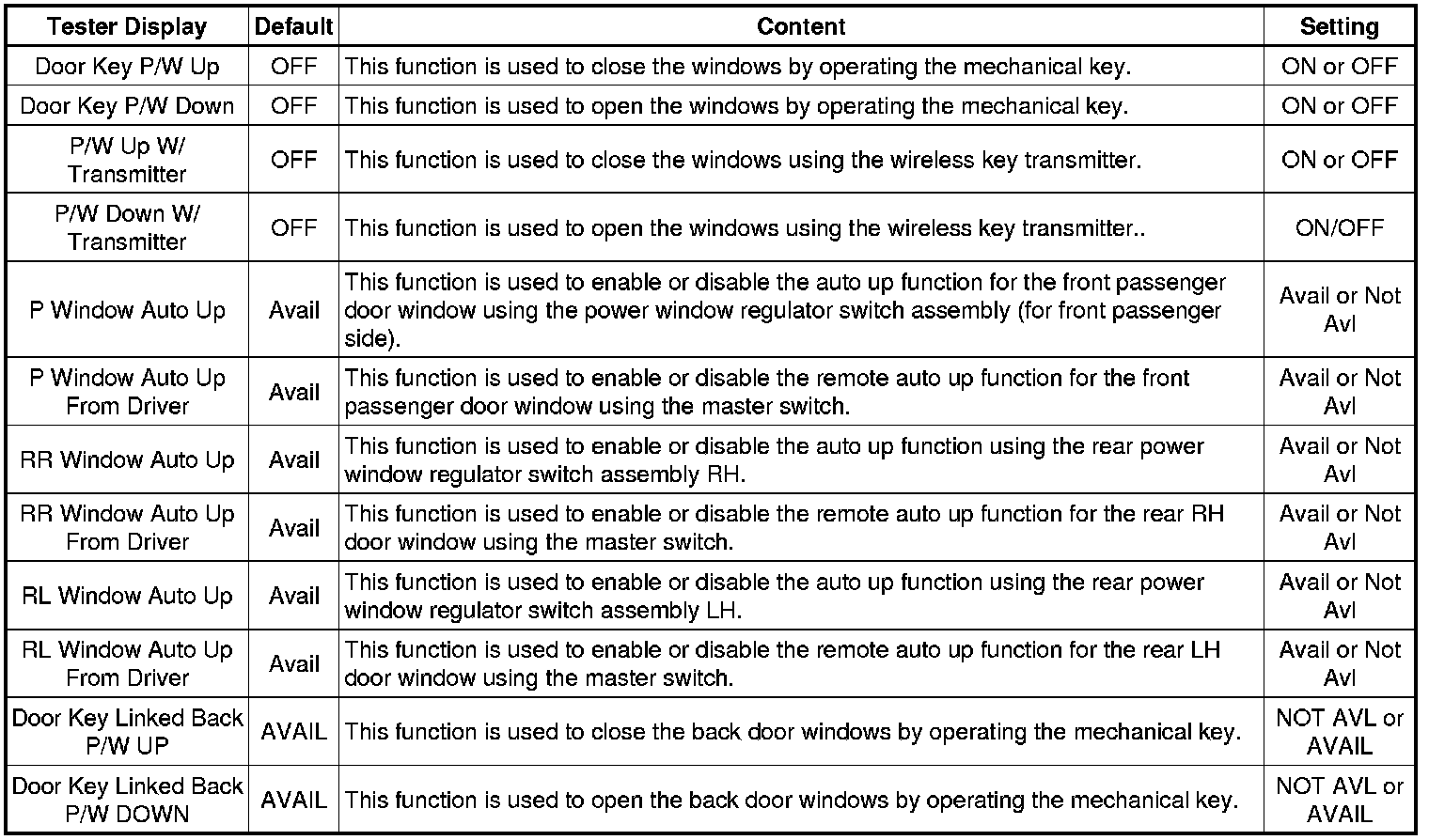

Power Window

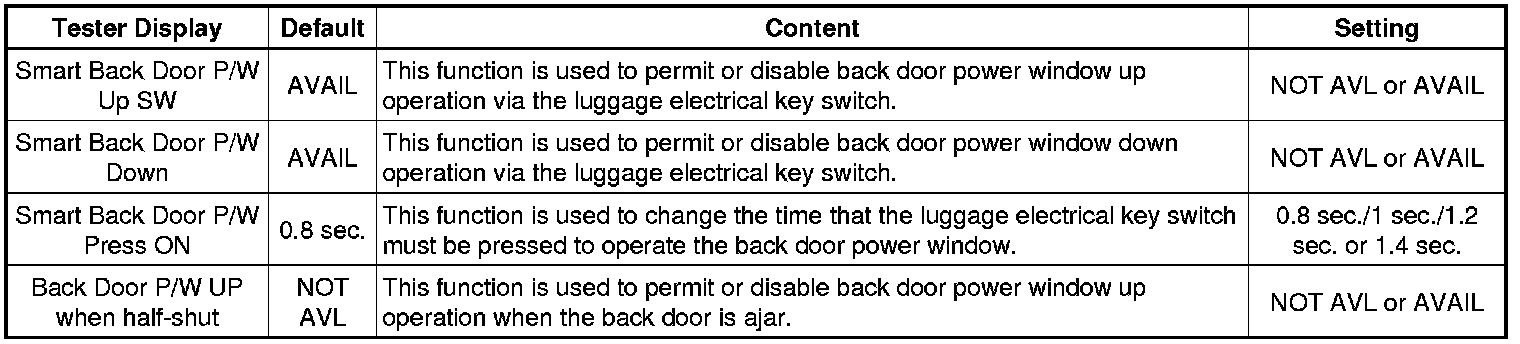

PSD & PBD operation (w/ Smart Key System)

(j) SLIDING ROOF SYSTEM

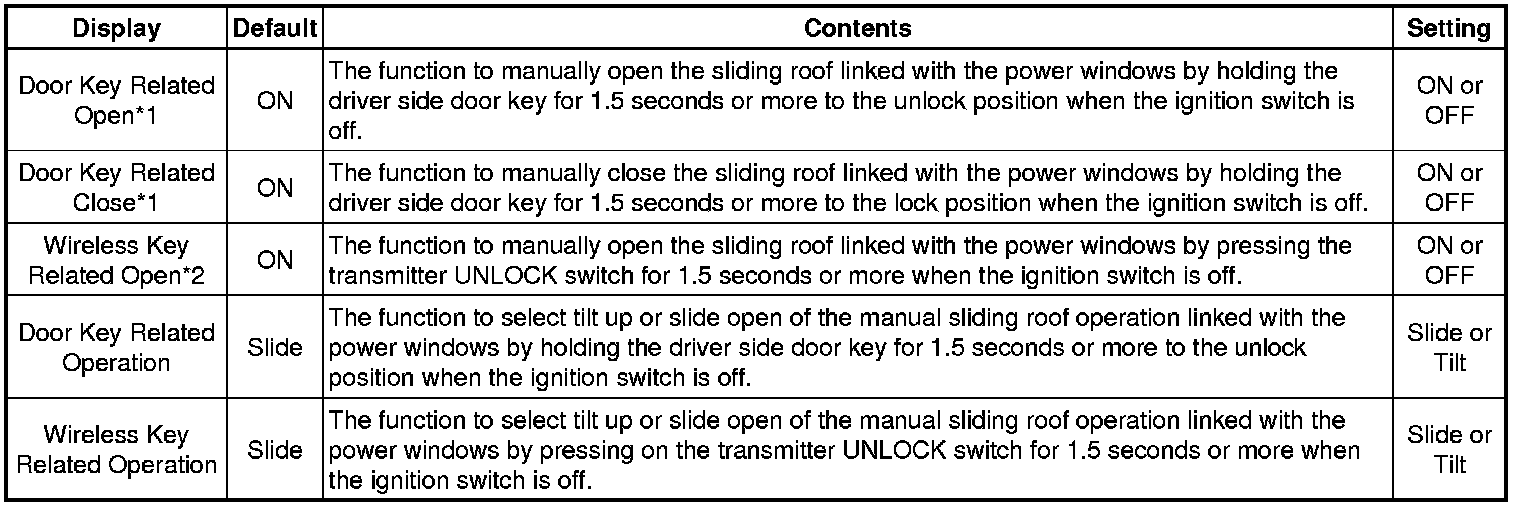

Slide Roof

HINT
* 1: This function is linked with the power window key-linked function. If the power window key-linked function is set to OFF, the sliding roof key-linked function will not operate even when it is set to ON.
* *2: This function is linked with the power window wireless transmitter-linked function. If the power window wireless transmitter-linked function is set to OFF, the sliding roof wireless transmitter-linked function will not operate even when it is set to ON.

(k) WIPER AND WASHER SYSTEM

Wiper

(l) LIGHTING SYSTEM (for Exterior)

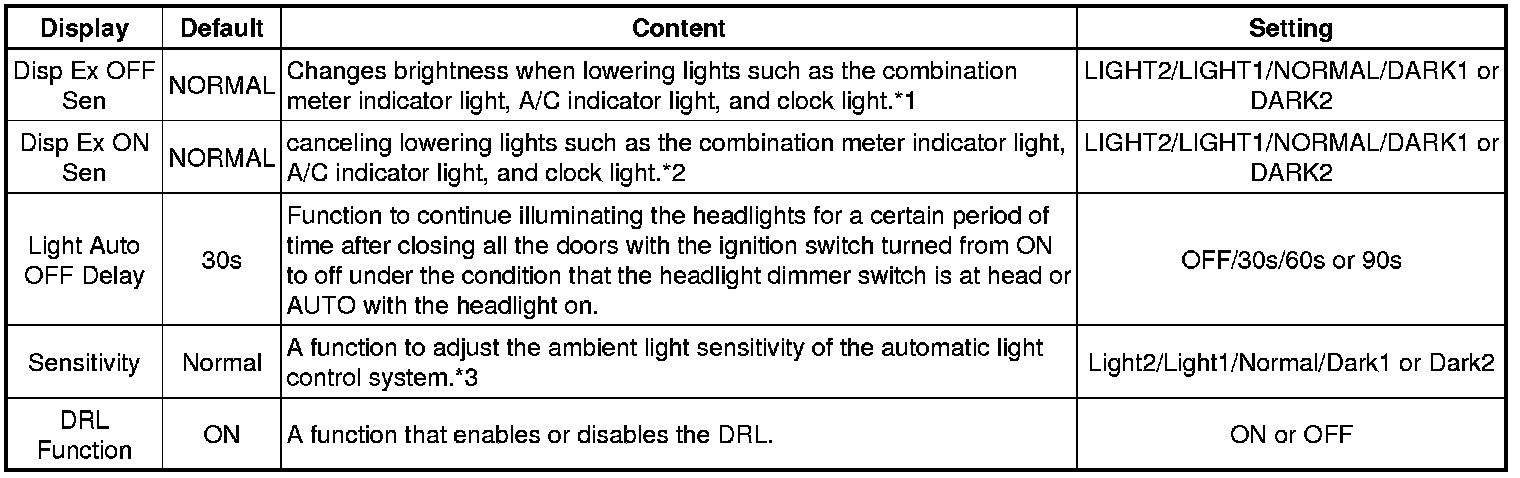

Light Control

HINT
The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

*1
