Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
Locations
>>

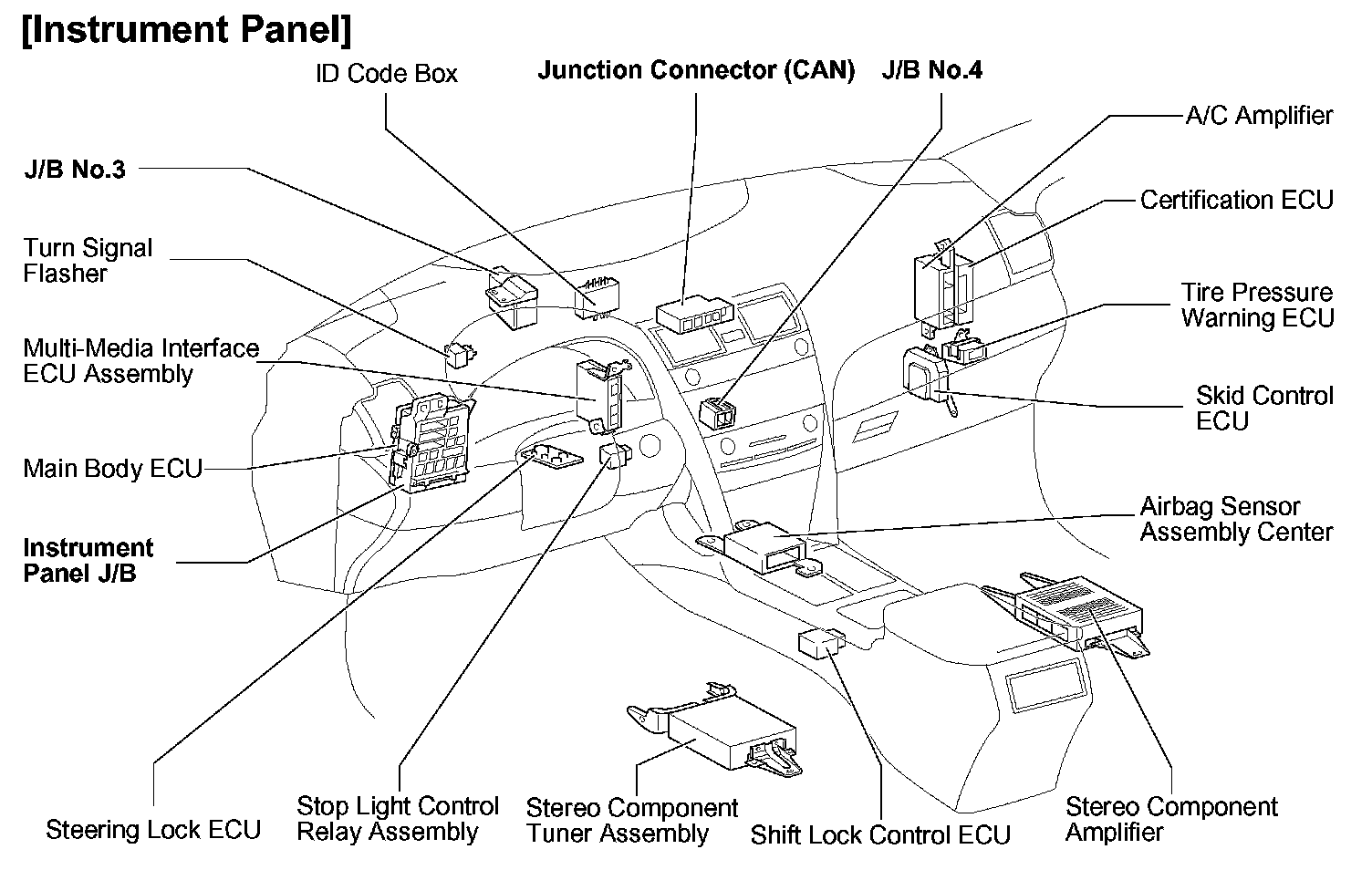

Instrument Panel
Instrument Panel
Instrument Panel:
Instrument Panel J/B - Cowl Side Left:
