Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Spark Plug
>>
Service and Repair
>>
Components
Components

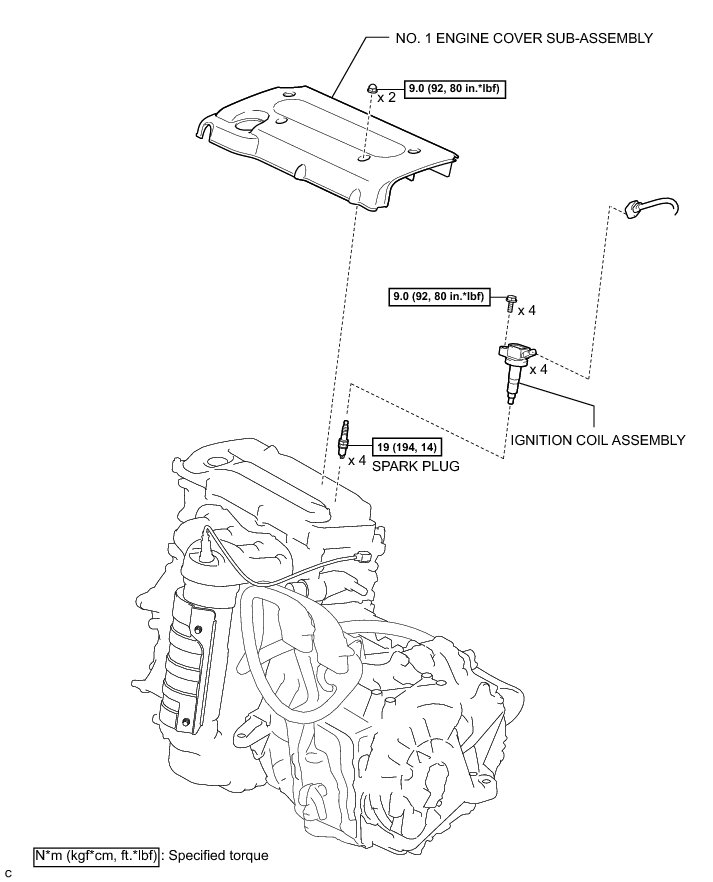

2AZ-FXE IGNITION: IGNITION COIL AND
SPARK PLUG
: COMPONENTS
