Alignment
SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

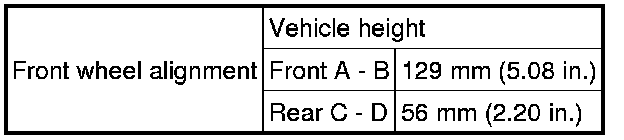

Vehicle height:
Measuring points:
A
Ground clearance of front wheel center
B
Ground clearance of lower suspension arm No. 2 bushing set bolt center
C
Ground clearance of rear wheel center
D
Ground clearance of strut rod set bolt center
