Connector Locations
Connector Locations

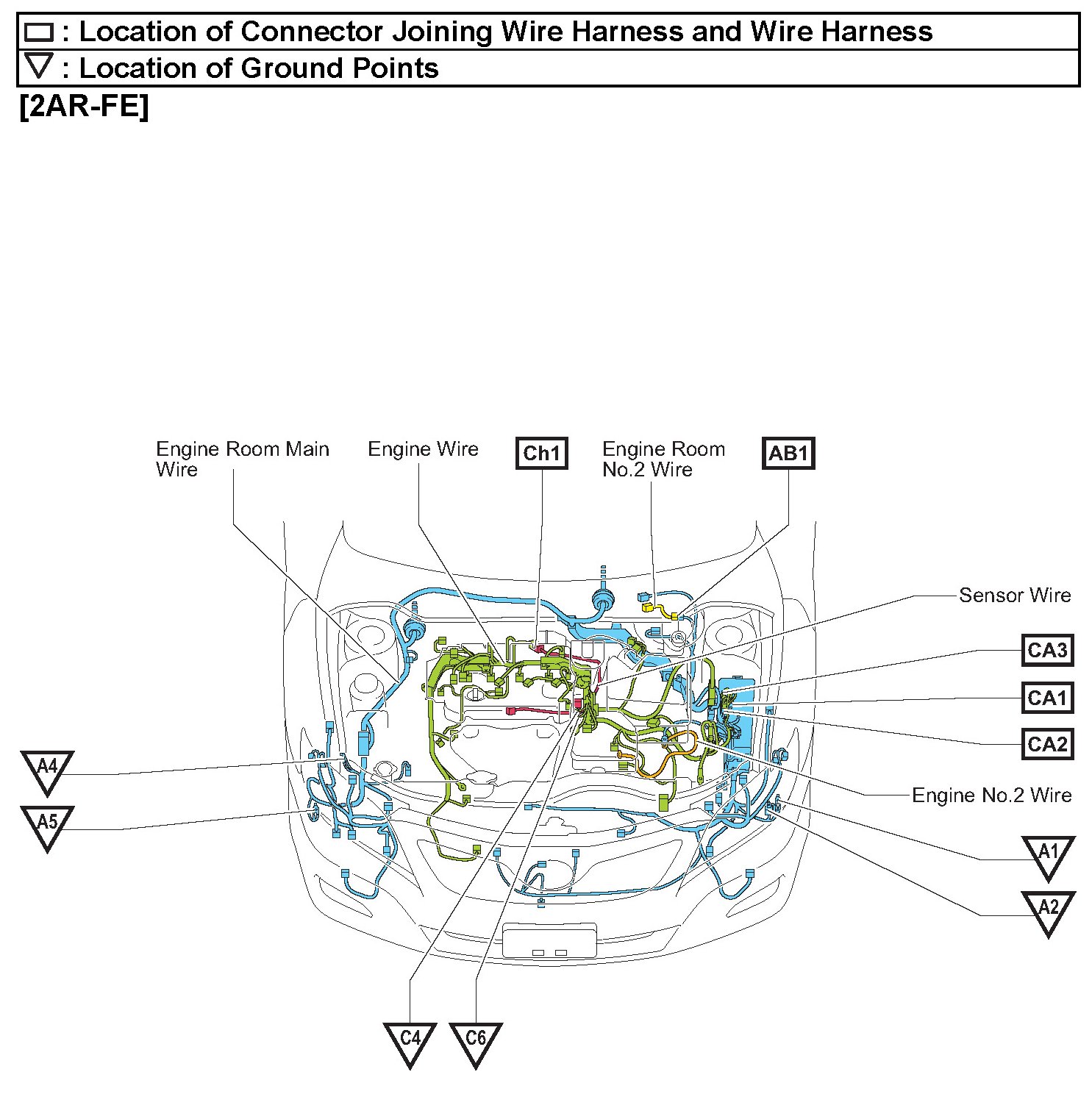

A1-C6 / AB1-Ch1:

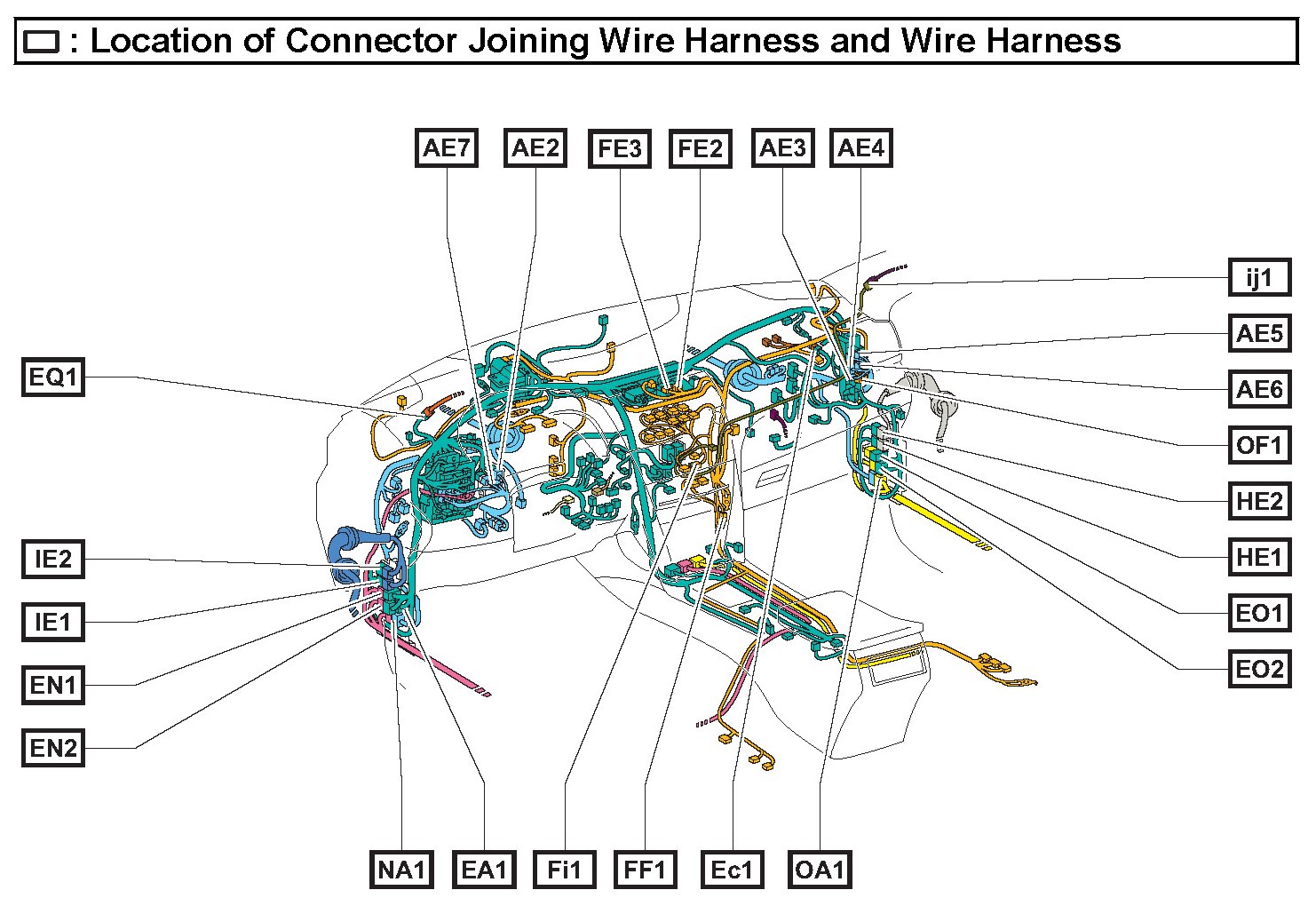

AE2-OF1:

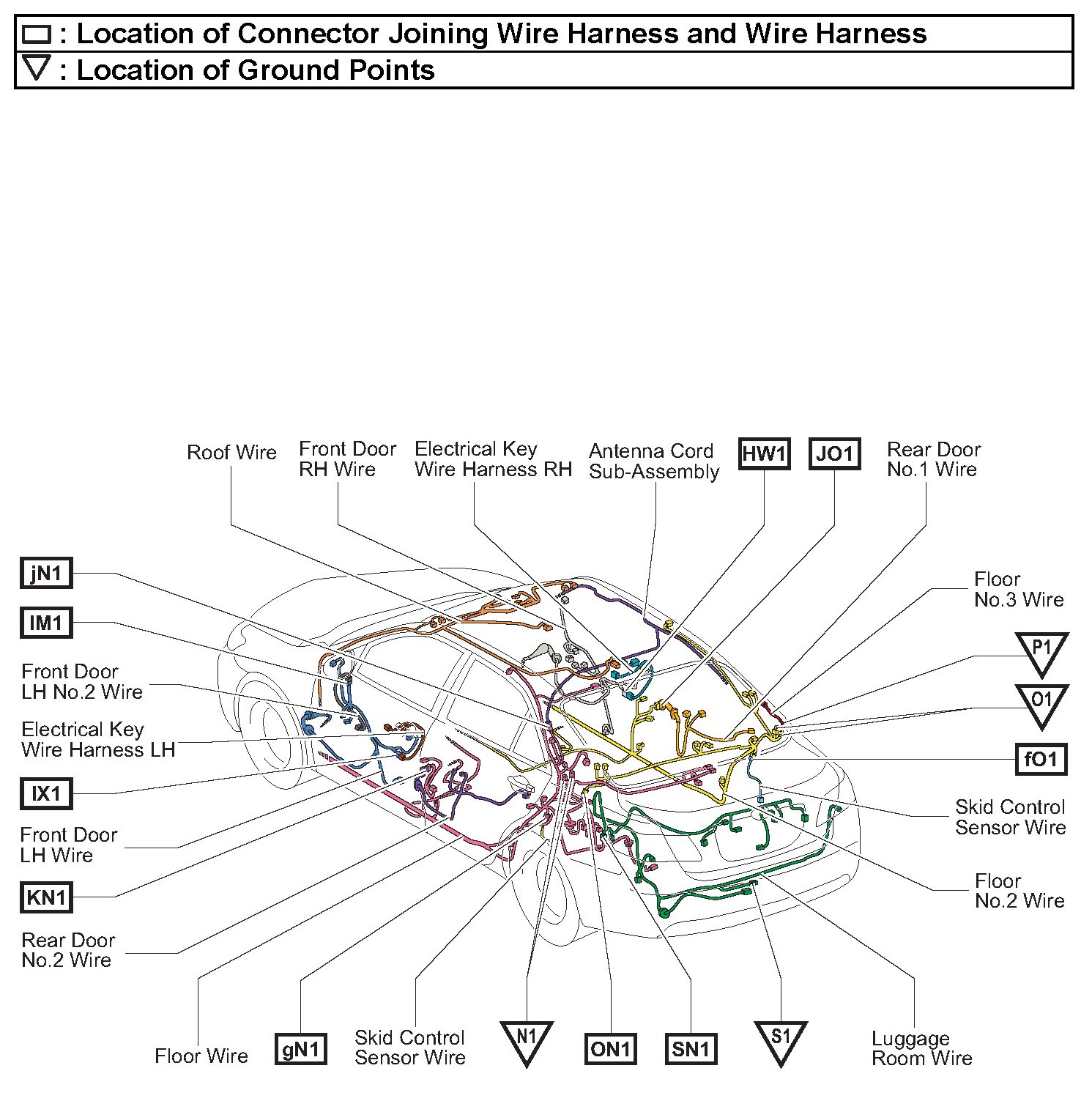

N1-S1 / fO1-SN1:

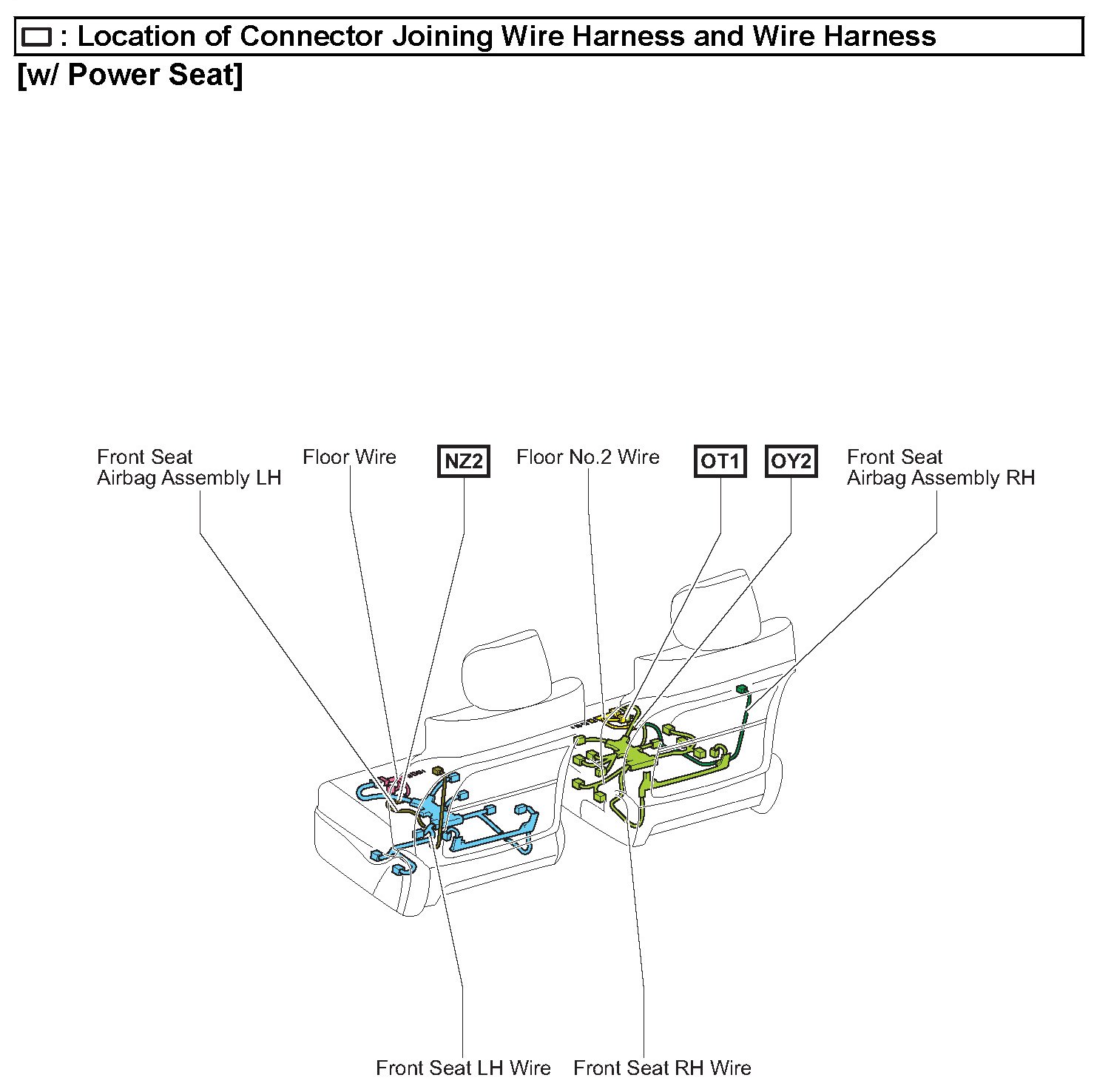

w/ Power Seat
NZ2-OY2:

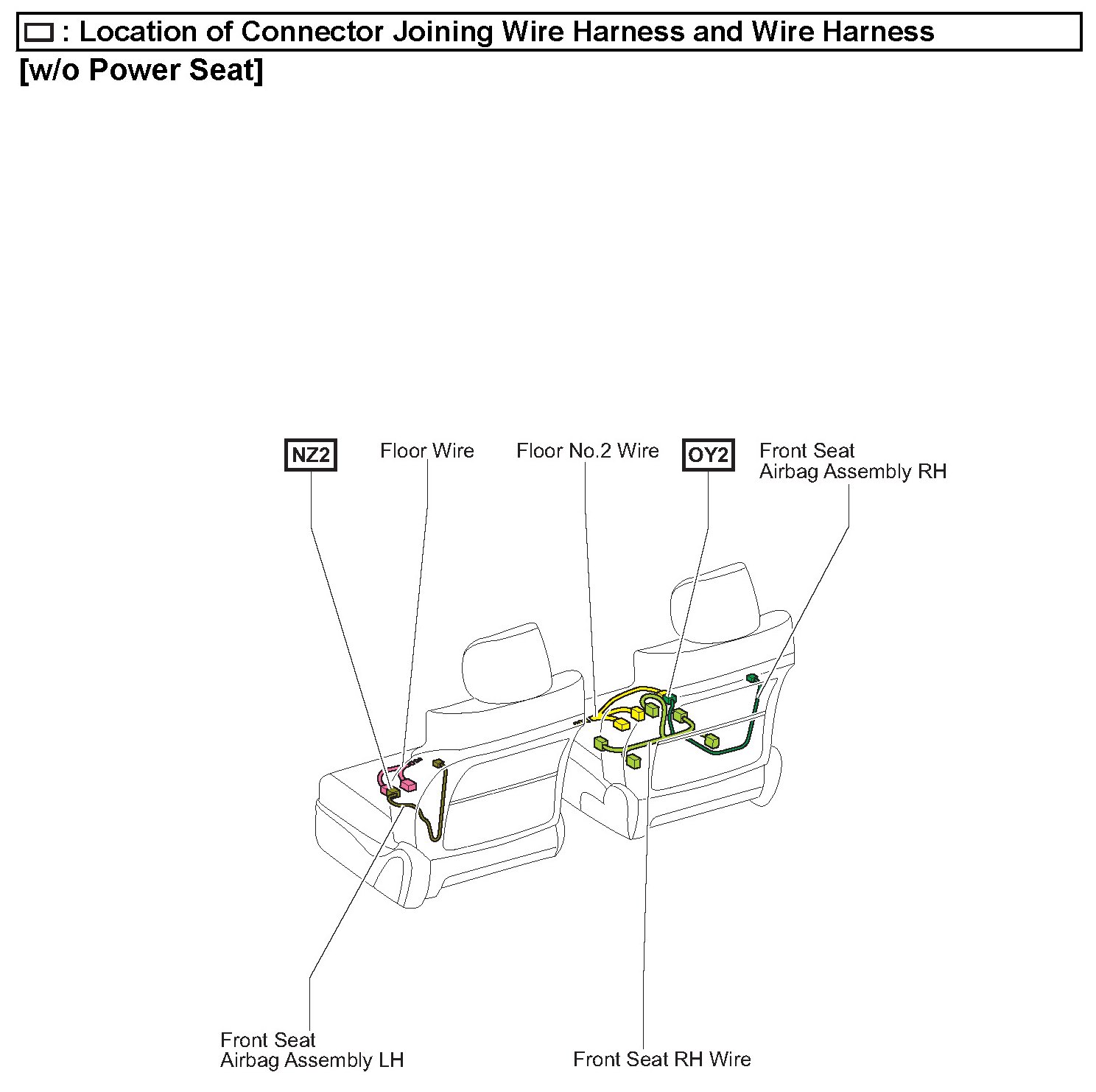

w/o Power Seat
NZ2-OY2:
