Installation

2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR

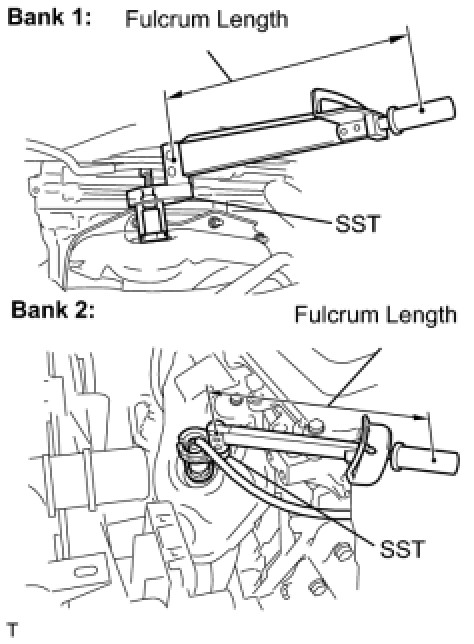

(a) Using SST, install the 2 air fuel ratio sensors to the front pipe assembly.





SST : 09224-00010

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf)

(b) Connect the 2 air fuel ratio sensor connectors.
