Installation

2GR-FE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION

1. INSTALL SPARK PLUG

(a) Instal the 6 spark plugs.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

2. INSTALL IGNITION COIL ASSEMBLY

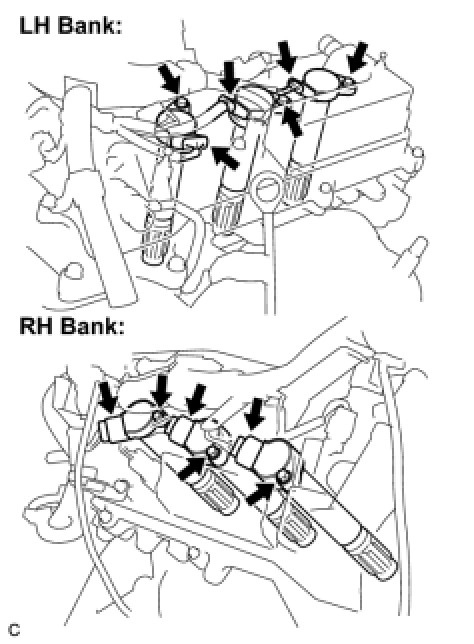

(a) Install the 6 ignition coils with the 6 bolts.





Torque : 10 Nm (102 kgf-cm, 10 ft-lbf)

(b) Connect the 6 ignition coil connectors.

3. INSTALL NO. 1 SURGE TANK STAY

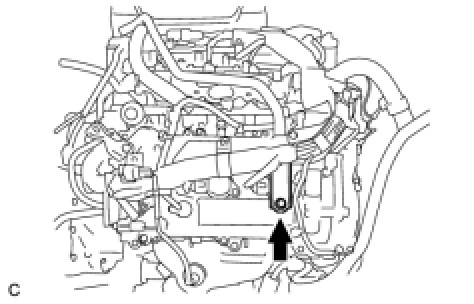

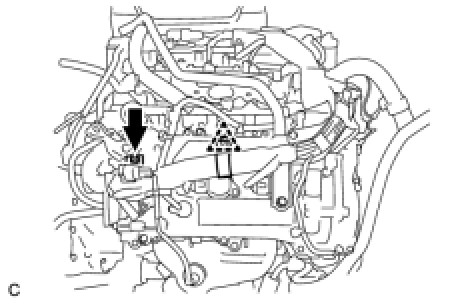

(a) Install the No. 1 surge tank stay with the bolt.





Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

NOTICE:
Make sure that there is no oil on the bolt threads.

(b) Install the bolt and clamp.





Torque : 7.0 Nm (71 kgf-cm, 62 in-lbf)

4. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation

5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation

7. ADD ENGINE COOLANT Testing and Inspection

8. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection

9. INSTALL COWL TOP PANEL OUTER SUB-ASSEMBLY Installation

10. INSTALL WINDSHIELD WIPER LINK ASSEMBLY

Installation

11. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
