Service Data

SERVICE SPECIFICATIONS: 2GR-FE COOLING: SERVICE DATA

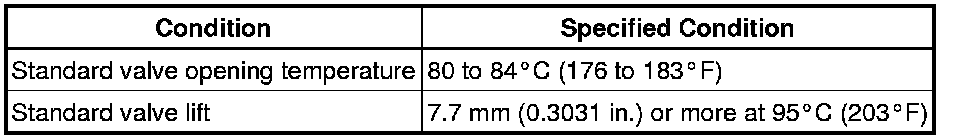

THERMOSTAT

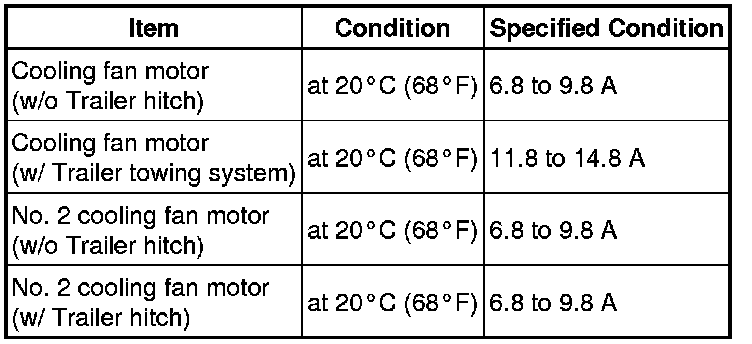

COOLING FAN MOTOR

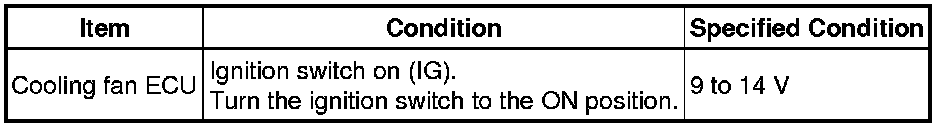

COOLING FAN ECU

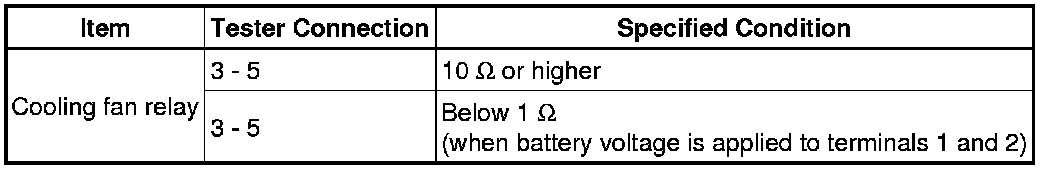

COOLING FAN RELAY

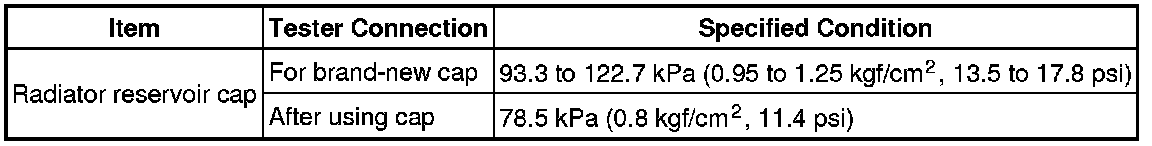

RADIATOR
