Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY






Temporarily tighten the timing chain cover with the 23 bolts and 2 nuts.

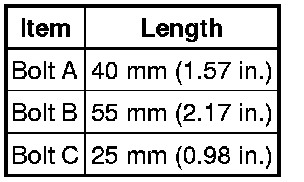

Bolt Length:






Fully tighten the bolts in area 1 and then area 2.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Fully tighten the bolts and nuts in area 3.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Tighten the bolts and nuts in the order of upper to lower as shown in the illustration.

Fully tighten the bolts in area 4.

Torque 43 Nm (438 kgf-cm, 32 ft-lbf) for bolt A

Torque 21 Nm (214 kgf-cm, 15 ft-lbf) for bolts except bolt A

Tighten the bolts in the order of lower to upper as shown in the illustration.

Chain cover plate with the 4 bolts.

Torque 9.1 Nm (93 kgf-cm, 81 in-lbf)
