Scan Tool Testing and Procedures

2GR-FE STARTING: SMART KEY SYSTEM: DATA LIST / ACTIVE TEST

1. READ DATA LIST

HINT
Using Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful as intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Connect the Techstream to the DLC3.

When using the Techstream with the engine switch off, turn on and off any of the door courtesy light switches repeatedly at 1.5 or less second intervals until communication between the tester and vehicle starts.

(b) Turn the engine switch on (IG).

(c) Enter the following menus: Body Electrical / Main Body / Data List.

(d) Read the Data List according to the display on the Techstream.

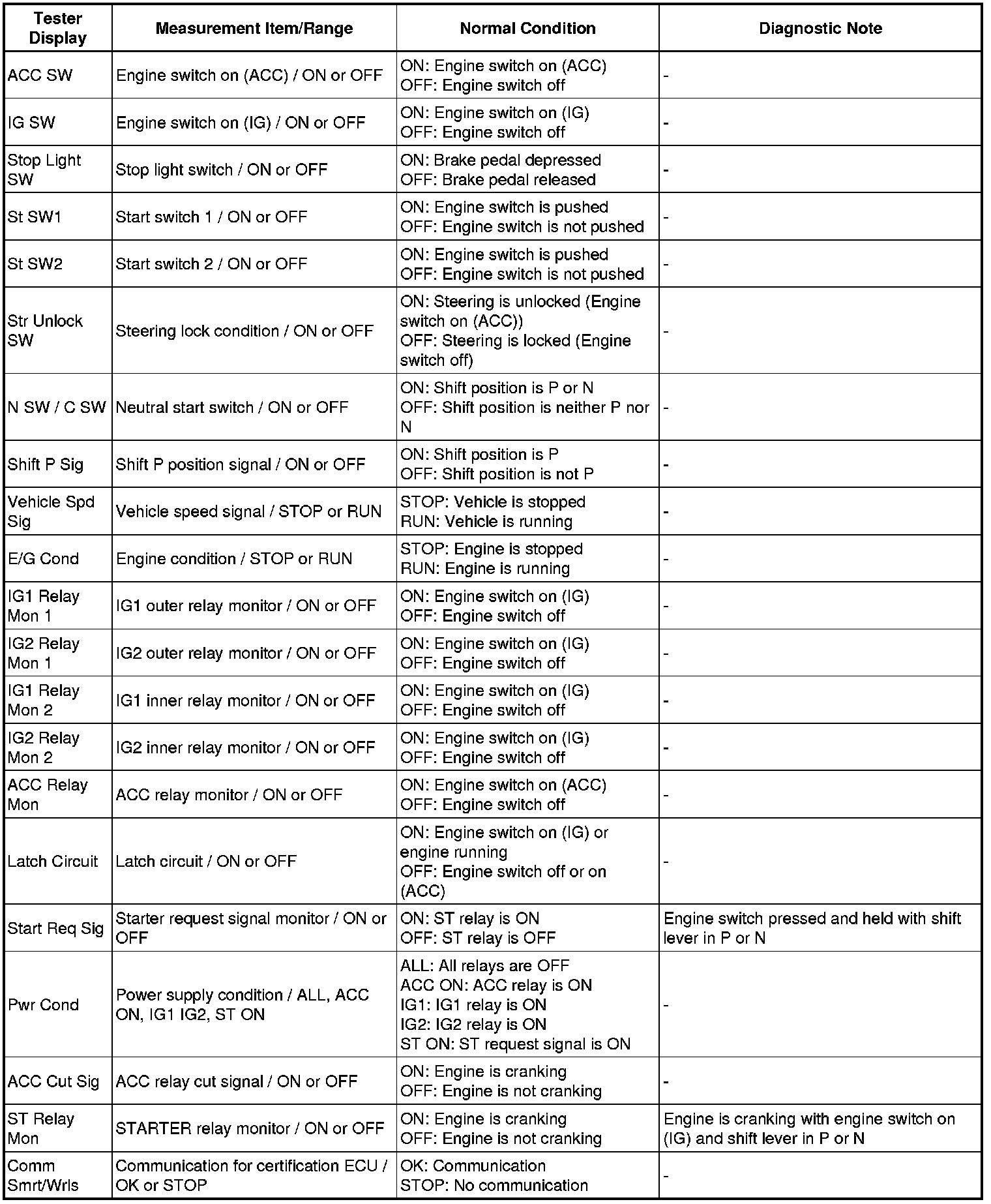

Main Body:





2. PERFORM ACTIVE TEST

HINT
Performing the Techstream's Active Test allows the relay, VSV, actuator and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Data List can be displayed during the Active Test.

(a) Connect the Techstream to the DLC3

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Active Test.

(e) Perform the Active Test according to the display on the Techstream.

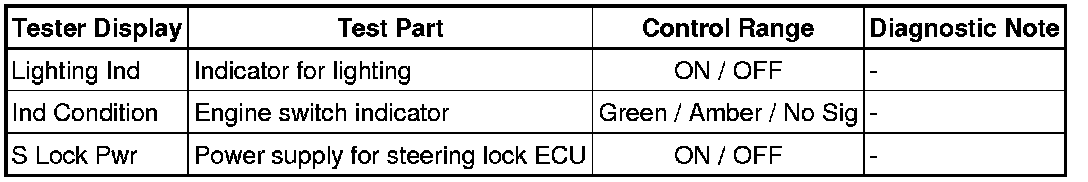

Main Body:
