Side Airbag Sensor LH Circuit Malfunction - Airbag System

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1625/22: Side Airbag Sensor LH Circuit Malfunction
B1625/22 - Side Airbag Sensor LH Circuit Malfunction

DESCRIPTION

The side airbag sensor LH circuit consists of the center airbag sensor assembly, side airbag sensor LH and rear airbag sensor LH.

The side airbag sensor LH and rear airbag sensor LH detect impacts to the vehicle and send signals to the center airbag sensor assembly to determine if the airbag should be deployed.

DTC B1625/22 is recorded when a malfunction is detected in the side airbag sensor LH circuit.

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor assembly, side airbag sensor LH and rear airbag sensor LH.

OK:

The connectors are properly connected.

HINT
If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the center airbag sensor assembly, side airbag sensor LH and rear airbag sensor LH.

(e) Check that the terminals of the connectors are not damaged.

OK:

The terminals are not deformed or damaged.

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

2. CHECK FLOOR WIRE (OPEN)

(a) Using SST, connect terminals 8 (BBL+) and 15 (BBL-) of connector B.

NOTICE:
Do not forcibly insert SST into the terminals of the connector when connecting.

SST : 09843-18040

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

3. CHECK FLOOR WIRE (SHORT)

(a) Disconnect SST from connector B.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

4. CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

5. CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

6. CHECK FLOOR WIRE (OPEN)

(a) Using SST, connect terminals 2 (BCL+) and 1 (BCL-) of connector C.

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

7. CHECK FLOOR WIRE (SHORT)

(a) Disconnect SST from connector C.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

8. CHECK FLOOR WIRE (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

9. CHECK FLOOR WIRE (SHORT TO GROUND)

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

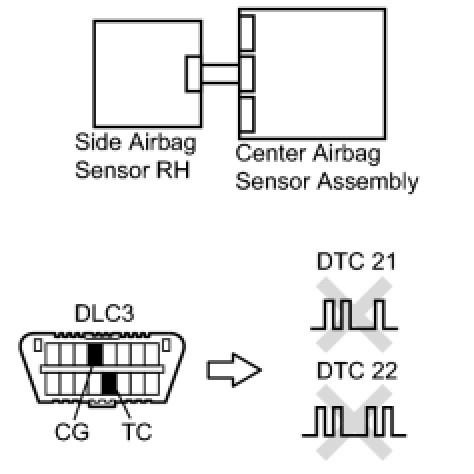

10. CHECK SIDE AIRBAG SENSOR LH

(a) Connect the connectors to the center airbag sensor assembly and the rear airbag sensor LH.

(b) Interchange the side airbag sensor RH with LH and connect the connectors.

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.

(f) Turn the ignition switch off.

(g) Turn the ignition switch to ON, and wait for at least 60 seconds.

(h) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

Result:

HINT
Codes other than DTC B1620/21 and B1625/22 may be output at this time, but they are not related to this check.

C -- USE SIMULATION METHOD TO CHECK Diagnosis System

B -- REPLACE SIDE AIRBAG SENSOR LH Removal
A -- Continue to next step.

11. CHECK REAR AIRBAG SENSOR LH

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Return the side airbag sensors RH and LH to their original positions and connect the connectors.

(d) Disconnect the connector from the rear airbag sensor LH.

(e) Connect the cable to the negative (-) battery terminal.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60 seconds.

(j) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1625/22 is not output.

HINT
Codes other than DTC B1625/22 may be output at this time, but they are not related to this check.

NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

OK -- REPLACE REAR AIRBAG SENSOR LH Removal
