Home >> Toyota >> 2011 >> Corolla L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Locations >> Ground Locations

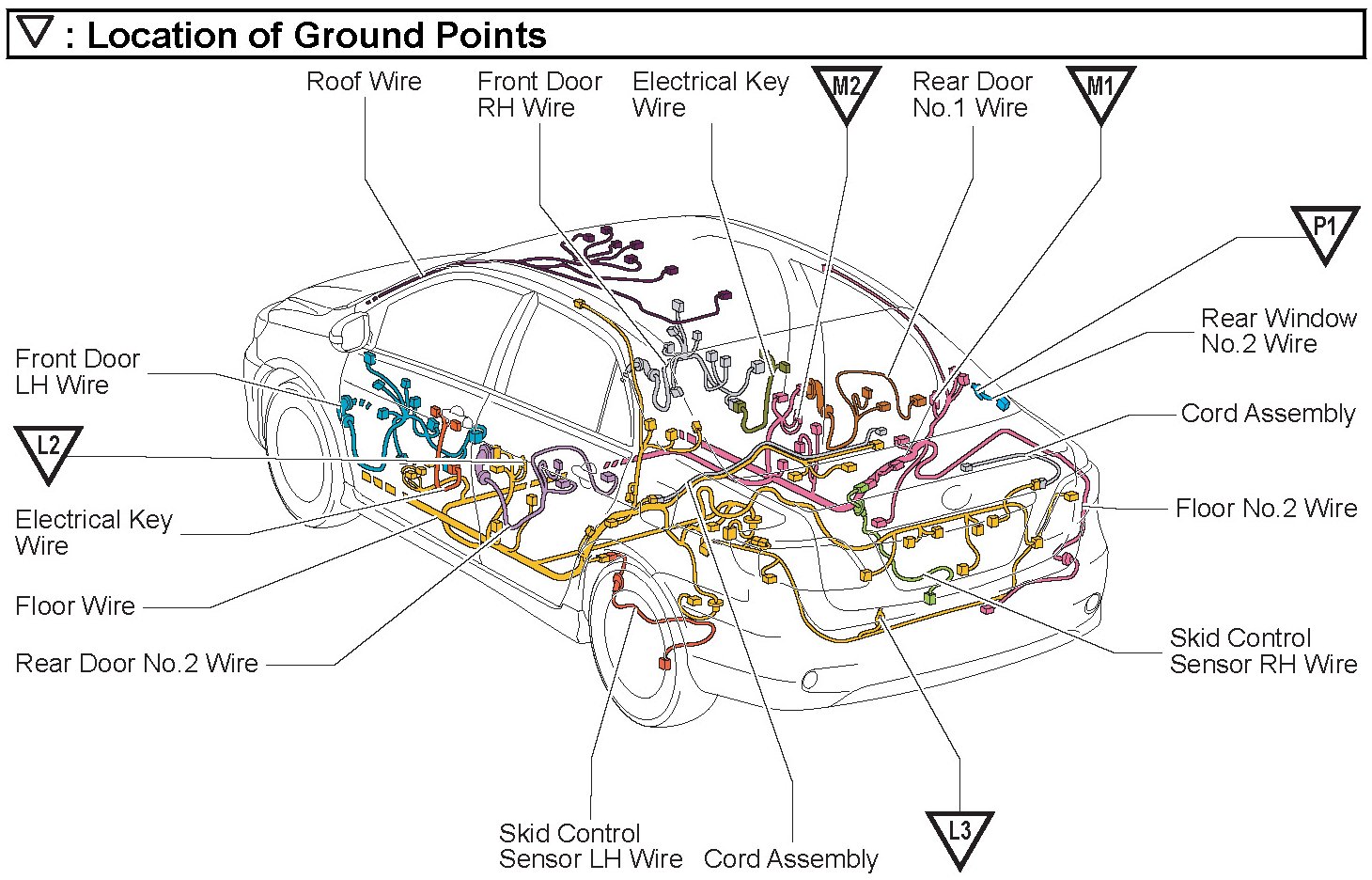

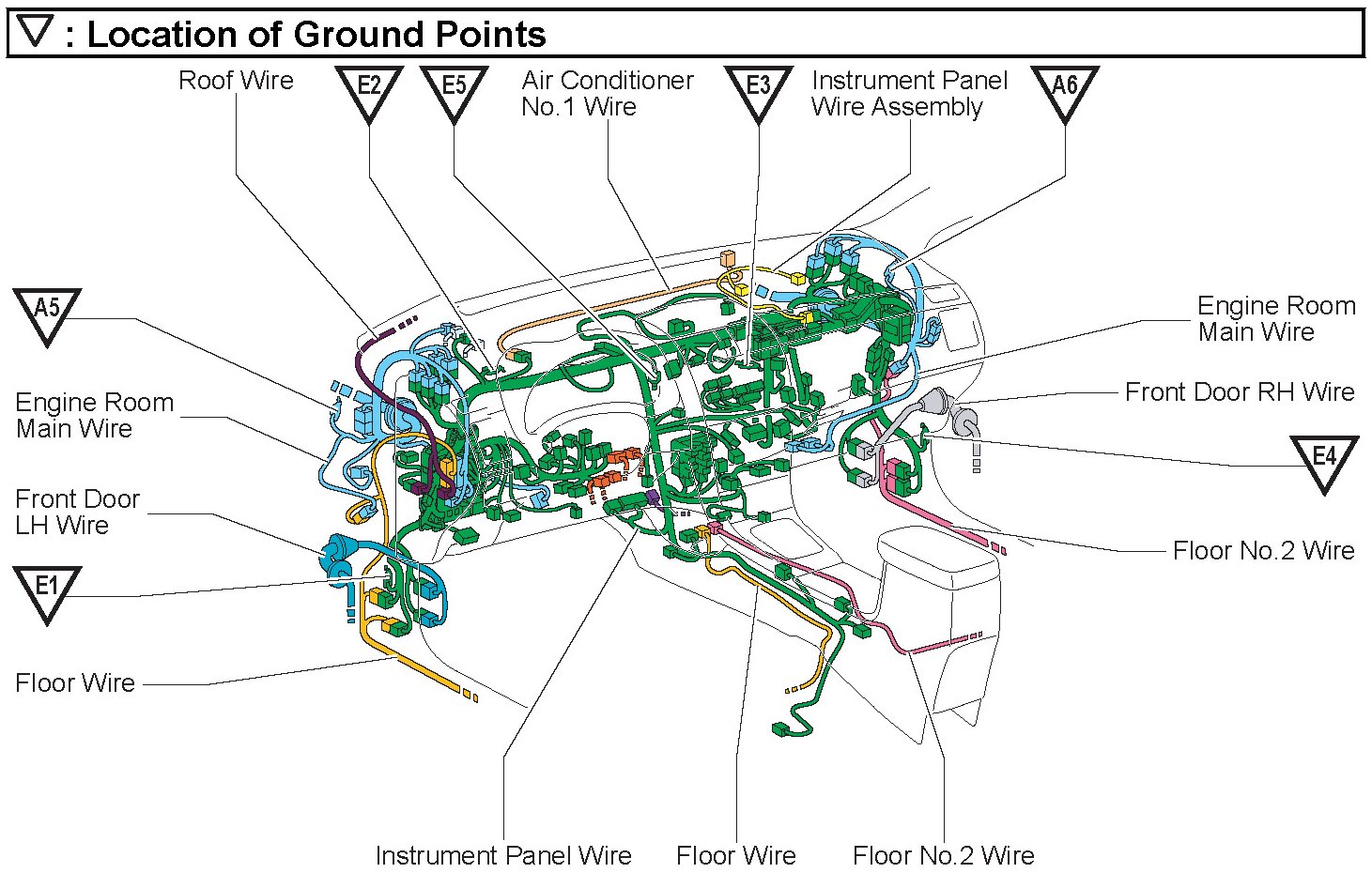

Ground Locations

A1-B4 / BA1-BA4:





A5-E5 (TMC Made):





A5-E5 (Except TMC Made):





L2-P1:
