Reassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: REASSEMBLY

1. INSTALL AIR CONDITIONER AMPLIFIER ASSEMBLY





(a) Remove the air conditioner amplifier assembly.

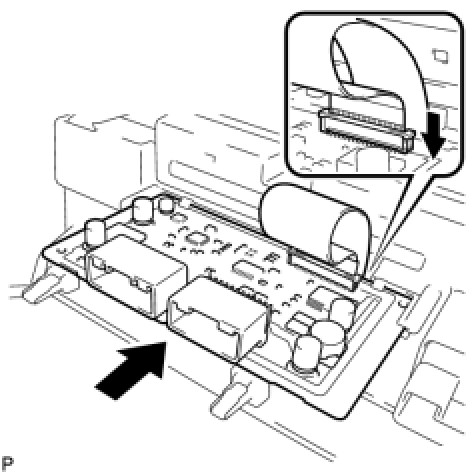

(b) Engage the lock of the connector and connect the cable.

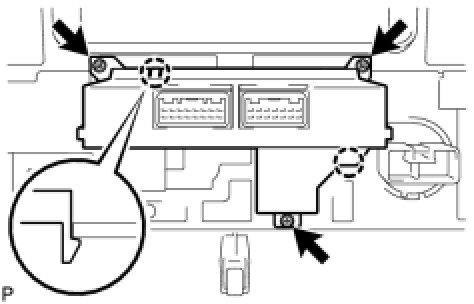

(c) Engage the 2 claws and install the rear panel.





(d) Install the 3 screws.
