Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

HINT
The following can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

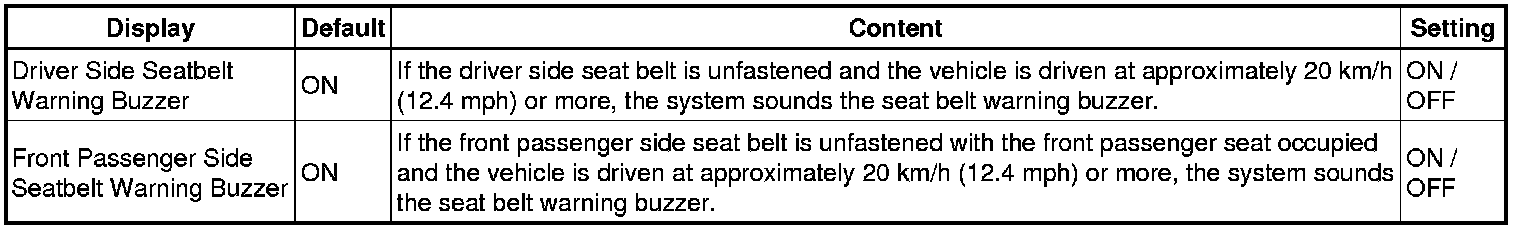

1. SEAT BELT WARNING SYSTEM

Warning





2. LIGHTING SYSTEM

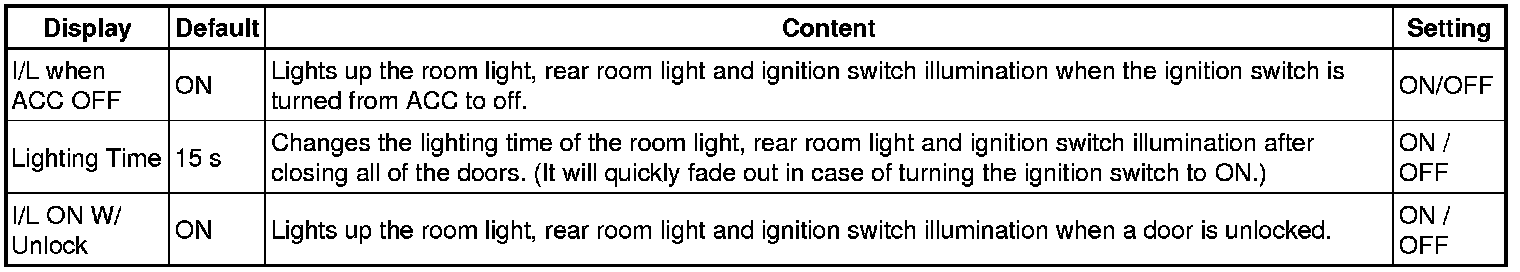

Illuminated Entry





Light Control





HINT
Sensitivity adjustment can hardly be confirmed. Please check by customer's actual driving.

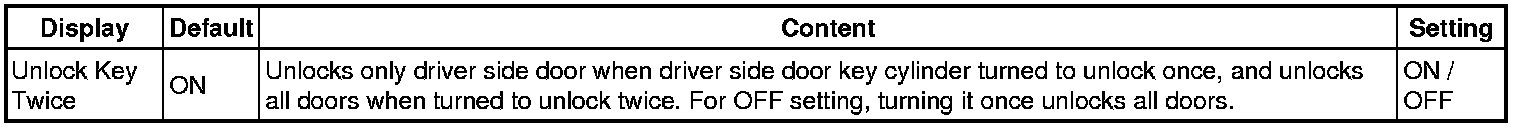

3. POWER DOOR LOCK CONTROL SYSTEM

Main Body

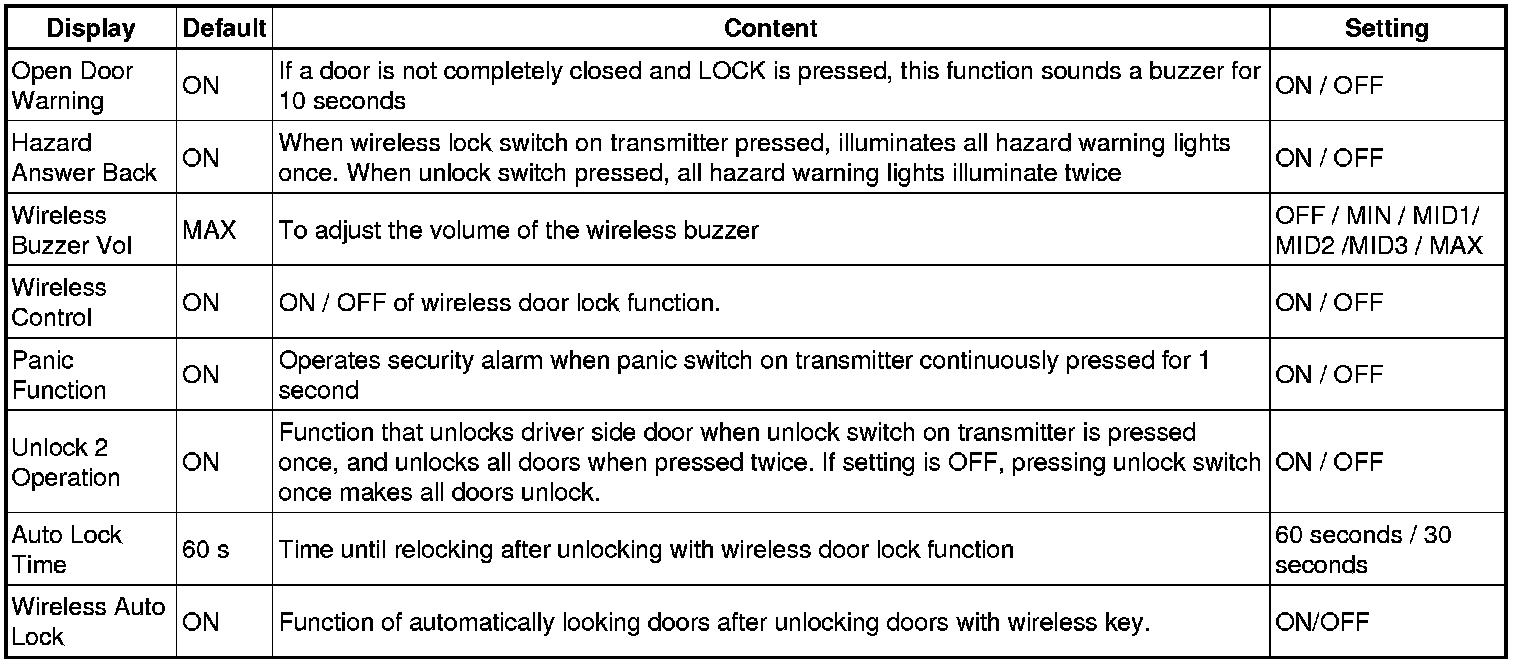

4. WIRELESS DOOR LOCK CONTROL SYSTEM

Main Body
