Service Data





SERVICE SPECIFICATIONS: A750F AUTOMATIC TRANSMISSION: SERVICE DATA

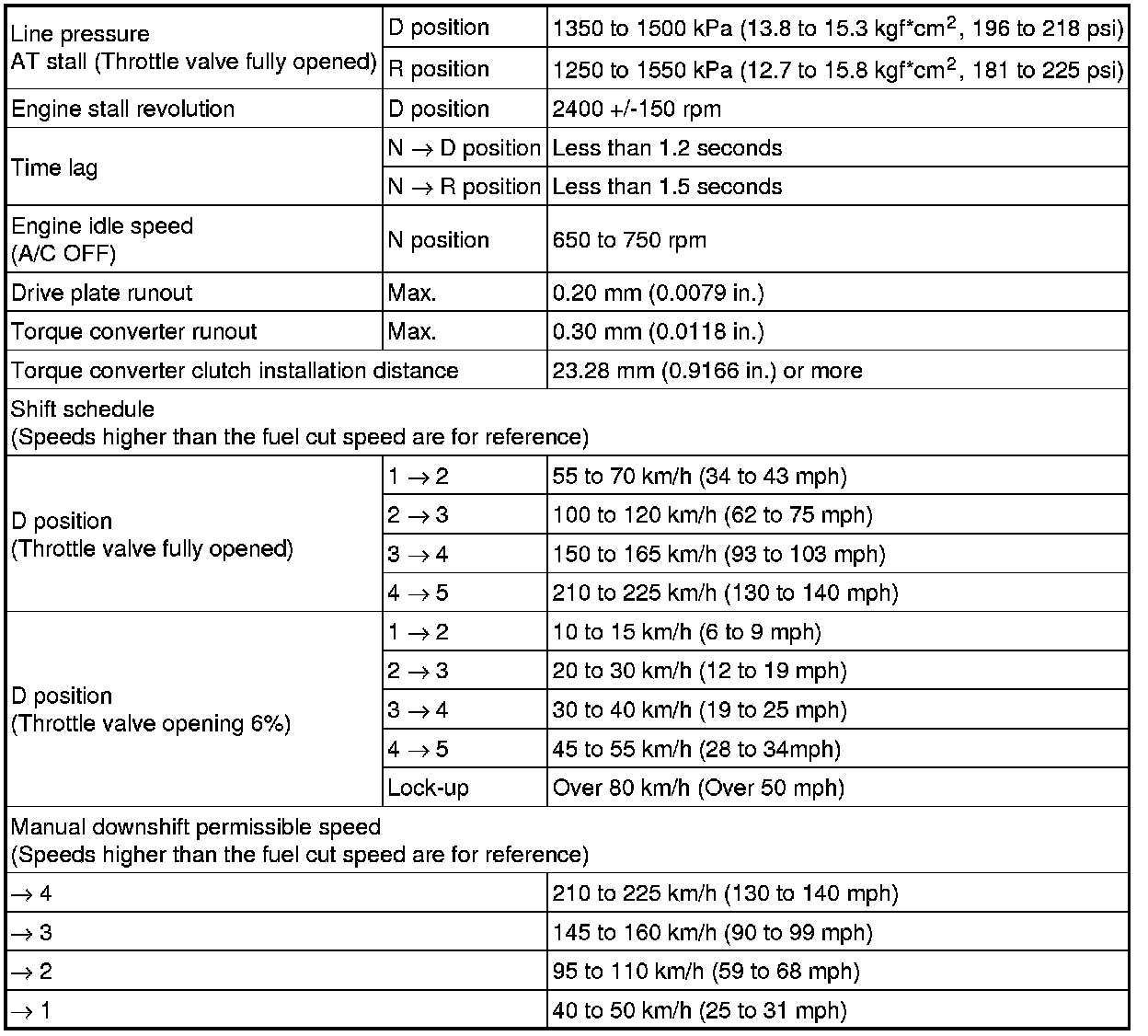

Automatic Transmission System

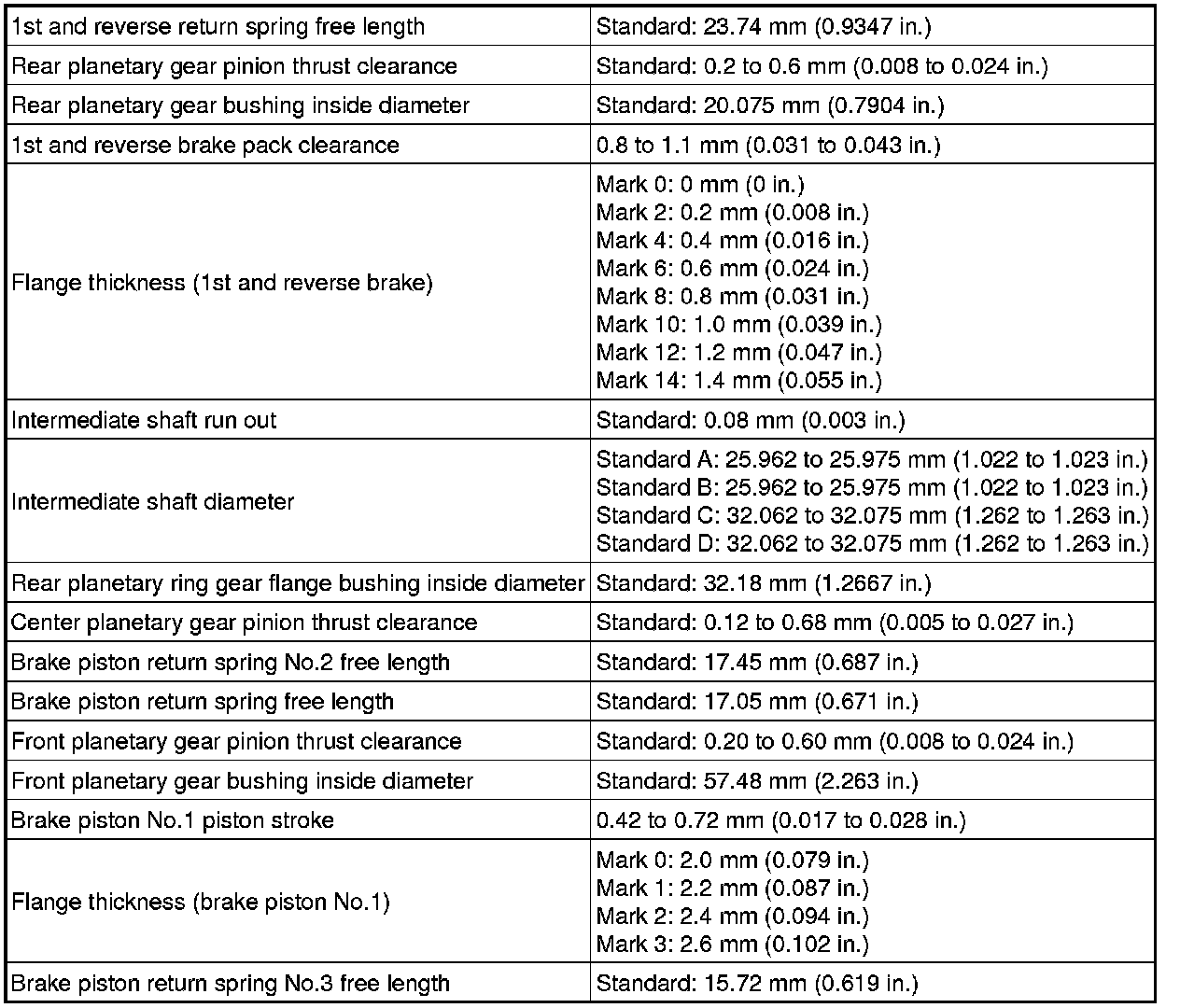

Automatic transmission Unit

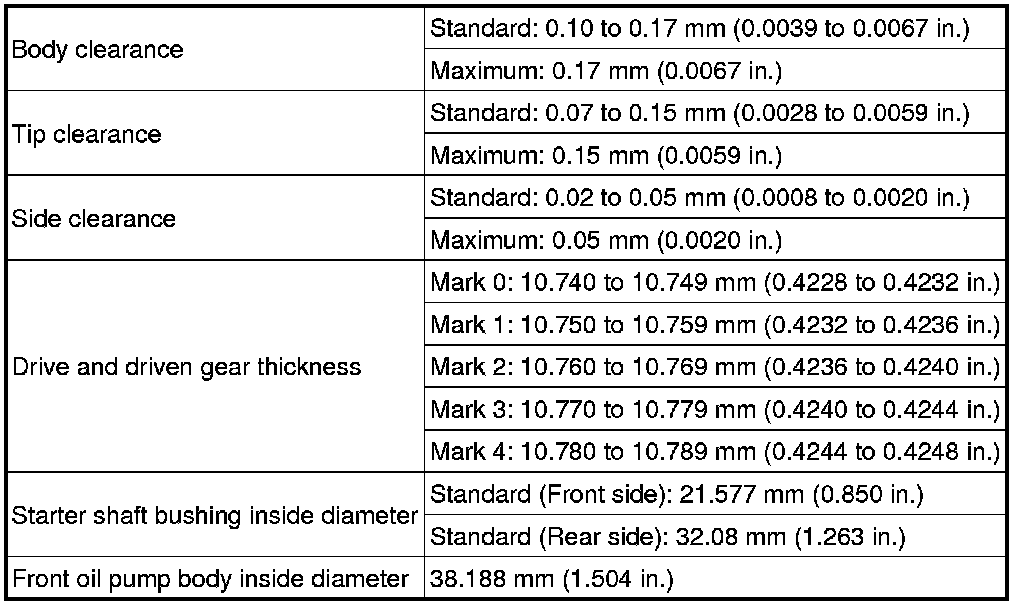

Oil Pump

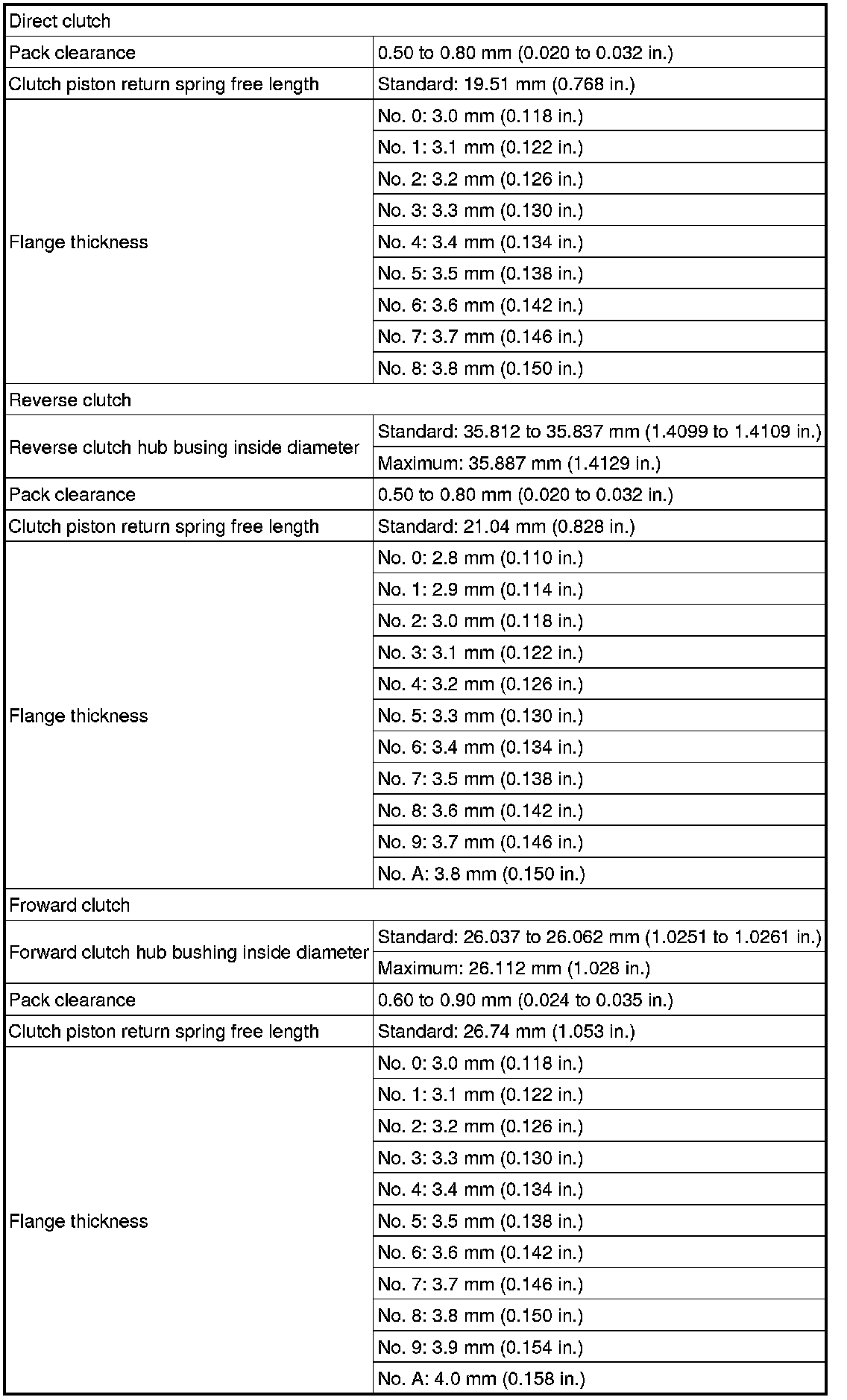

Clutch Drum and Input Shaft

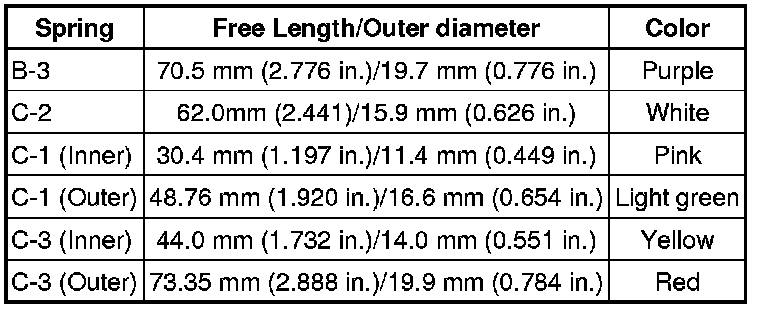

Accumulator
