Home >> Toyota >> 2011 >> Highlander 2WD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Locations >> Ground Locations

Ground Locations

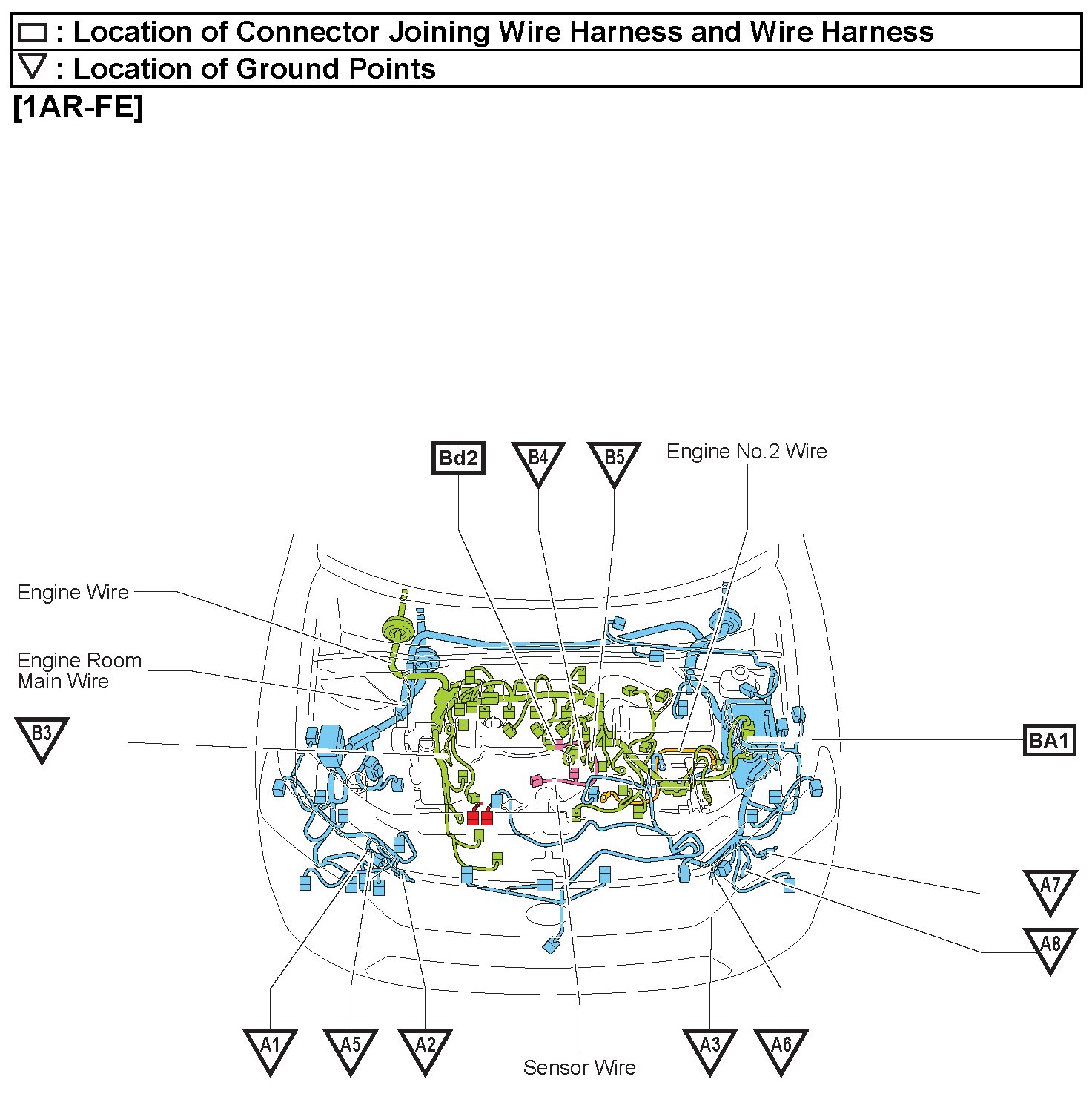

A1-B5 / B1-Bd2:





A4-E2:

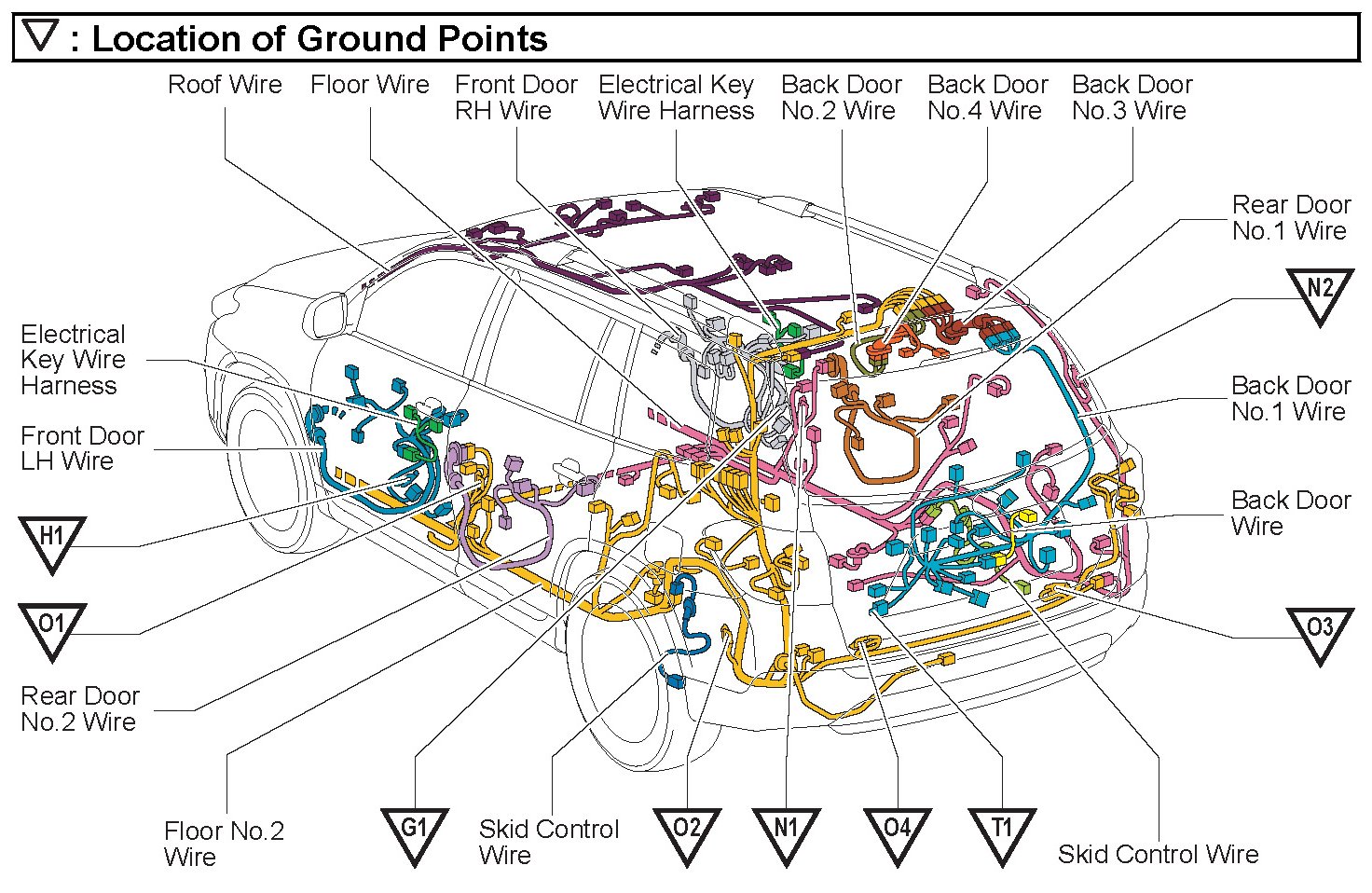

G1-T1:
