1AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: EVAP System
- EVAP System - Continued

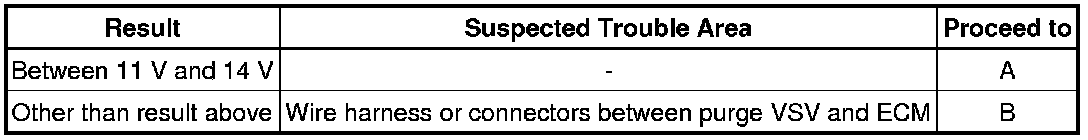

Result:





(d) Reconnect the purge VSV connector.

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR
A -- Continue to next step.

18. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)

(a) Disconnect the ECM connector and the purge VSV connector.

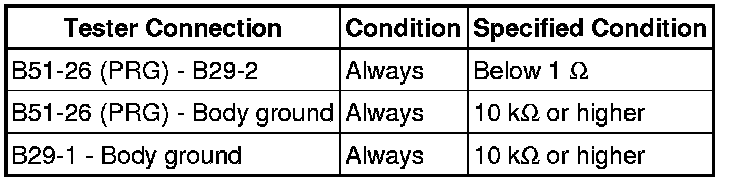

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Reconnect the purge VSV connector.

(d) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM

19. PERFORM ACTIVE TEST USING TECHSTREAM (FOR VENT VALVE)

(a) Turn the ignition switch to ON.





(b) Enter the following menus: Powertrain / Engine / Active Test / Activate the VSV for Vent Valve.

(c) Measure the voltage according to the value(s) in the table below.

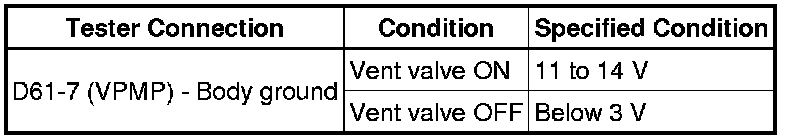

Standard Voltage:

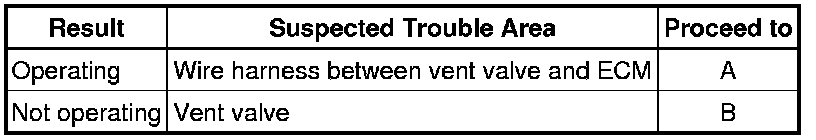

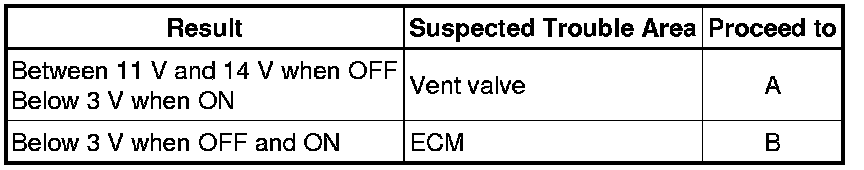

Result:





B -- REPLACE ECM

A -- INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)

20. PERFORM ACTIVE TEST USING TECHSTREAM (FOR VENT VALVE)

(a) Turn the ignition switch to ON.





(b) Enter the following menus: Powertrain / Engine / Active Test / Activate the VSV for Vent Valve.

(c) Measure the voltage according to the value(s) in the table below.

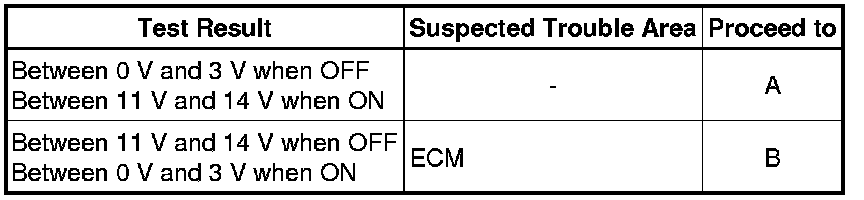

Standard Voltage:





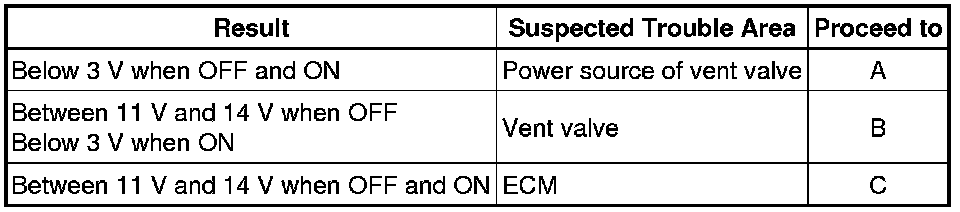

Result:





C -- REPLACE ECM

B -- INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)
A -- Continue to next step.

21. INSPECT CANISTER PUMP MODULE (POWER SOURCE FOR VENT VALVE)

(a) Turn the ignition switch off.





(b) Disconnect the canister pump module connector.

(c) Turn the ignition switch to ON.

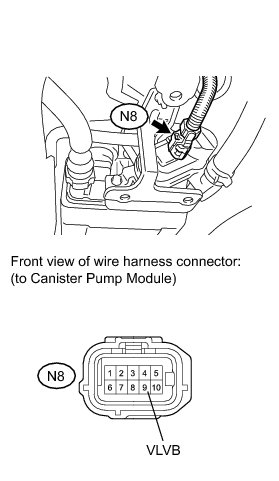

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

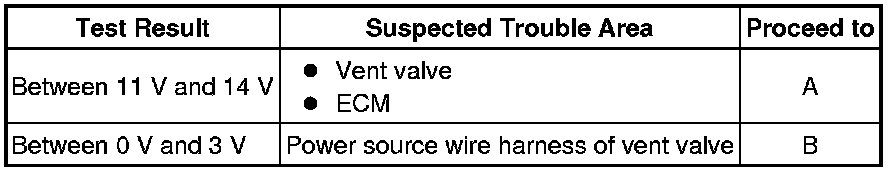

Result:





(e) Reconnect the canister pump module connector.

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR
A -- Continue to next step.

22. INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)

(a) Turn the ignition switch off.





(b) Disconnect the canister pump module connector.

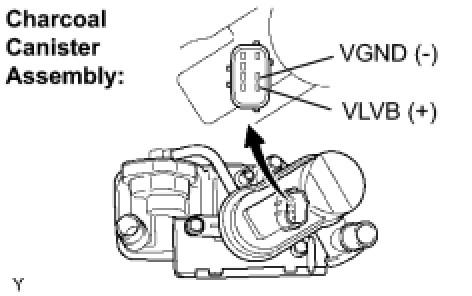

(c) Apply the battery voltage to terminals VLVB and VGND of the pump module.

(d) Touch the canister pump module to confirm the vent valve operation.

Result:





(e) Reconnect the canister pump module connector.

B -- REPLACE CHARCOAL CANISTER ASSEMBLY

A -- REPAIR OR REPLACE HARNESS OR CONNECTOR

23. PERFORM ACTIVE TEST USING TECHSTREAM (FOR CANISTER PUMP MODULE)

(a) Enter the following menus: Powertrain / Engine / Active Test / Activate the Vacuum Pump.





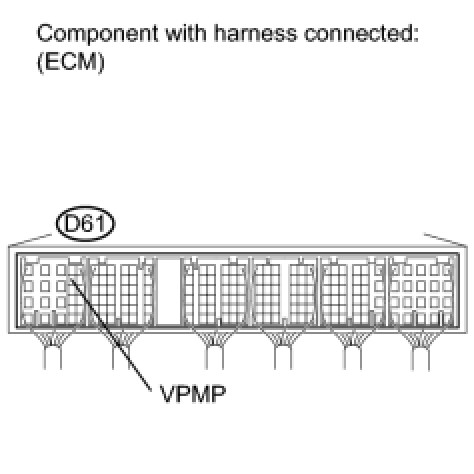

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Result:





B -- REPLACE ECM
A -- Continue to next step.

24. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

(a) Turn the ignition switch off.

(b) Disconnect the canister pump module connector.

(c) Turn the ignition switch to ON.

(d) Enter the following menus: Powertrain / Engine / Active Test / Activate the Vacuum Pump.

(e) Turn the vacuum pump on (Active Test ON).

(f) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

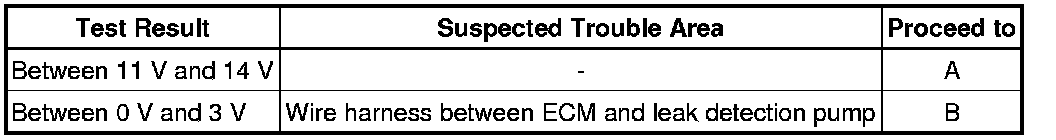

Result:





(g) Reconnect the canister pump module connector.

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR
A -- Continue to next step.

25. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - BODY GROUND)

(a) Disconnect the canister pump module connector.

(b) Turn the ignition switch off.

(c) Check the resistance according to the value(s) in the table below.

Standard Resistance:

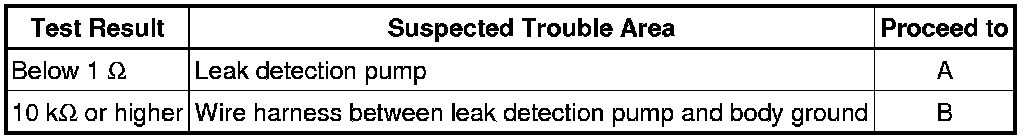

Result:





(d) Reconnect the canister pump module connector.

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR

A -- REPLACE CHARCOAL CANISTER ASSEMBLY

26. INSPECT INTAKE MANIFOLD

(a) Stop the engine.

(b) Disconnect the EVAP hose from the intake manifold.

(c) Start the engine.

(d) Confirm that the port of the intake manifold has suction with your fingers.

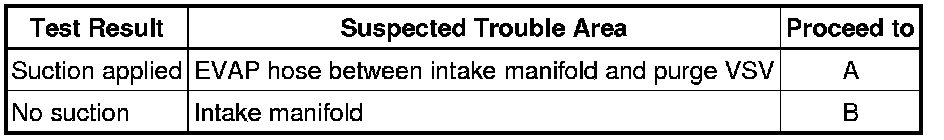

Result:





(e) Reconnect the EVAP hose.

B -- INSPECT INTAKE MANIFOLD

A -- REPLACE EVAP HOSE (INTAKE MANIFOLD - PURGE VSV)

27. CORRECTLY REINSTALL OR REPLACE FUEL CAP

HINT
* When reinstalling the fuel cap, tighten it until a few click sounds are heard.
* When replacing the fuel cap, use a fuel cap that meets OEM specifications, and tighten it until a few click sounds are heard.

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

28. REPLACE FUEL CAP ASSEMBLY

HINT
When installing the fuel cap, tighten it until a few click sounds are heard.

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

29. LOCATE EVAP LEAK

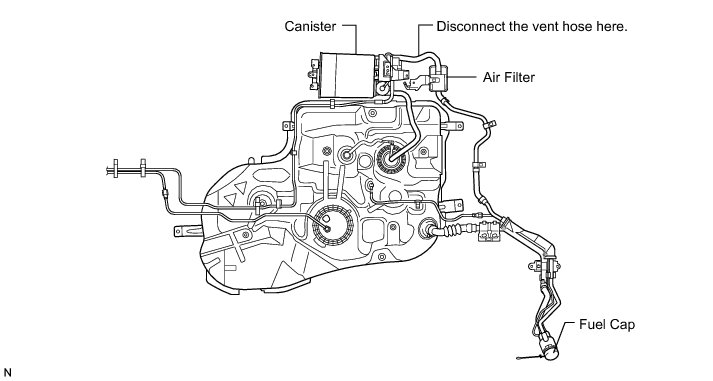

(a) Disconnect the vent hose.

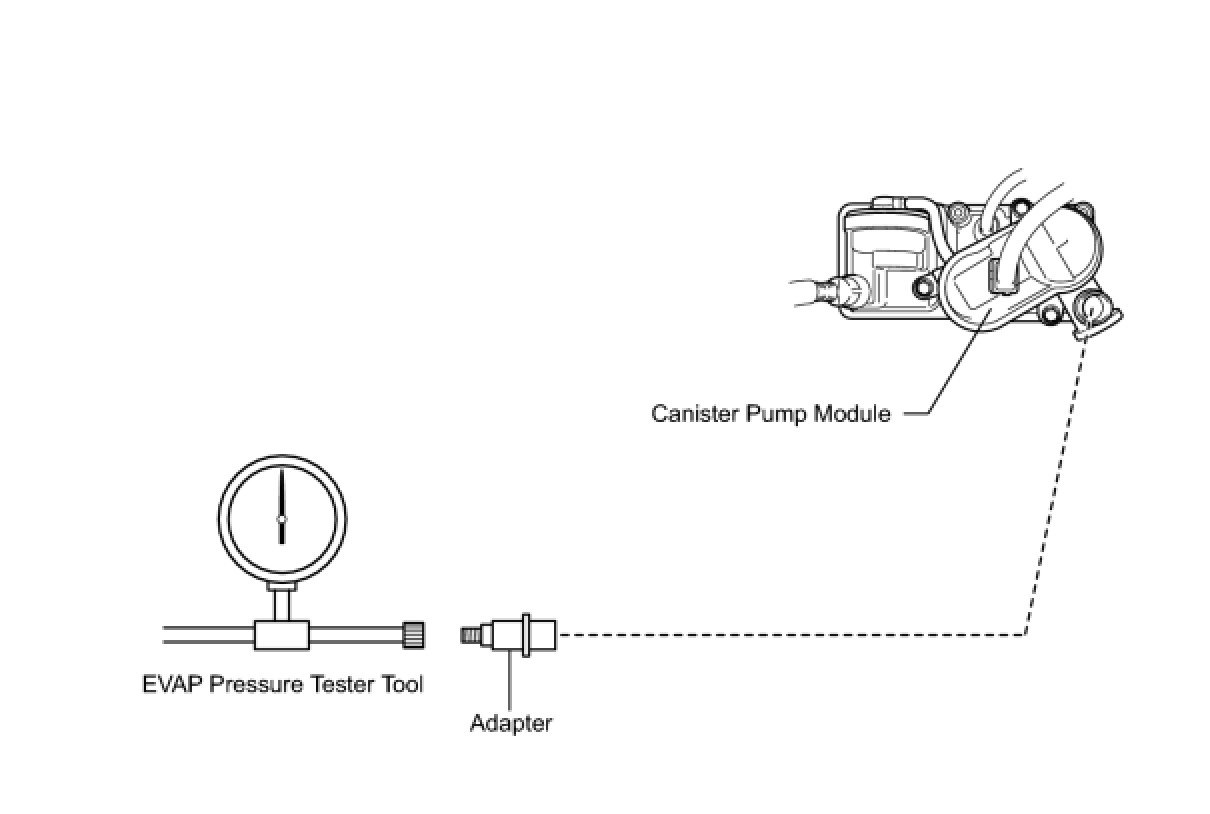

(b) Connect the EVAP pressure tester tool to the canister with the adapter.





(c) Pressurize the EVAP system by 3.2 to 3.7 kPa-g (24 to 28 mmHg-g).

(d) Apply soapy water to the piping and the connecting parts of the EVAP system.

(e) Look for areas where bubbles appear. This indicates a leak point.

(f) Repair or replace the leak point.

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

30. REPLACE CHARCOAL CANISTER ASSEMBLY

(a) Replace the charcoal canister assembly Removal.

NOTICE:

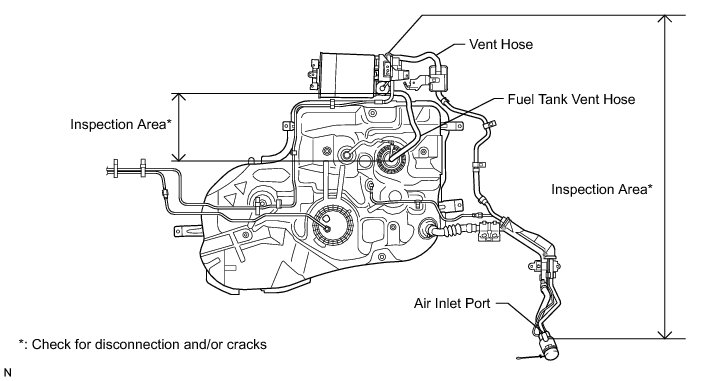

When replacing the canister, check the canister pump module interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following parts: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; 3) the fuel tank vent hose.





NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

31. REPLACE PURGE VSV

(a) Replace the purge VSV Removal.

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

32. REPAIR OR REPLACE HARNESS OR CONNECTOR

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

33. REPLACE EVAP HOSE (INTAKE MANIFOLD - PURGE VSV)

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

34. INSPECT INTAKE MANIFOLD

(a) Check that the EVAP purge port of the intake manifold is not clogged. If necessary, replace the intake manifold.

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

35. REPLACE ECM

(a) Replace the ECM Removal.

NEXT -- PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

36. REPAIR OR REPLACE PARTS AND COMPONENTS INDICATED BY OUTPUT DTCS

(a) Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.

NEXT -- Continue to next step.

37. PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)

NOTICE:
* In the Evaporative System Check (Automatic Mode), the series of 5 Evaporative System Check steps are performed automatically. It takes a maximum of approximately 18 minutes.
* Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the leak check of the fuel tank unavailable.
* Do not run the engine during this operation.
* When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing an Evaporative System Check, keep the temperature below 35°C (95°F).

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) On the Techstream, enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode.

(c) After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine / Trouble Codes / Pending.

HINT
If no pending DTC is found, the repair has been successfully completed.

NEXT -- COMPLETED
