Torque Specifications





SERVICE SPECIFICATIONS: 1AR-FE COOLING: TORQUE SPECIFICATIONS

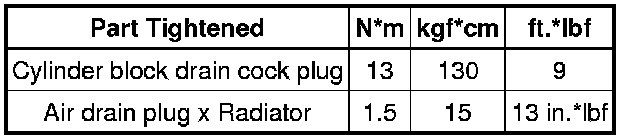

Coolant





Water pump





Thermostat

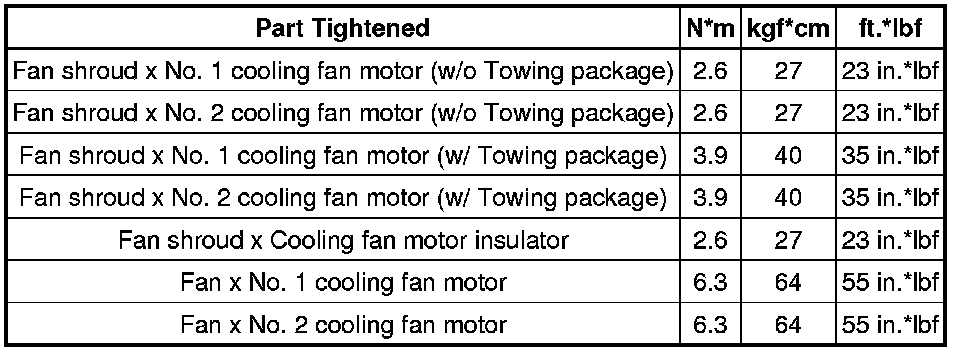

Cooling fan motor

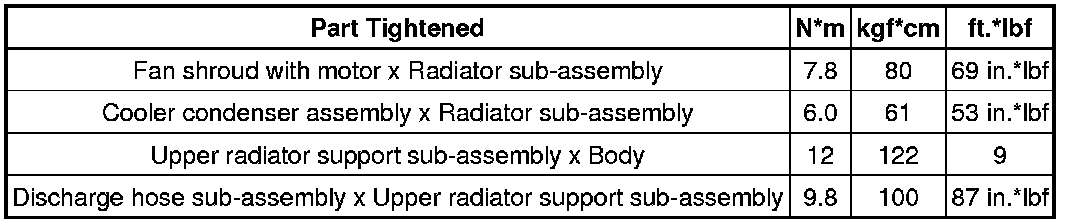

Radiator
