Cylinder Head Assembly

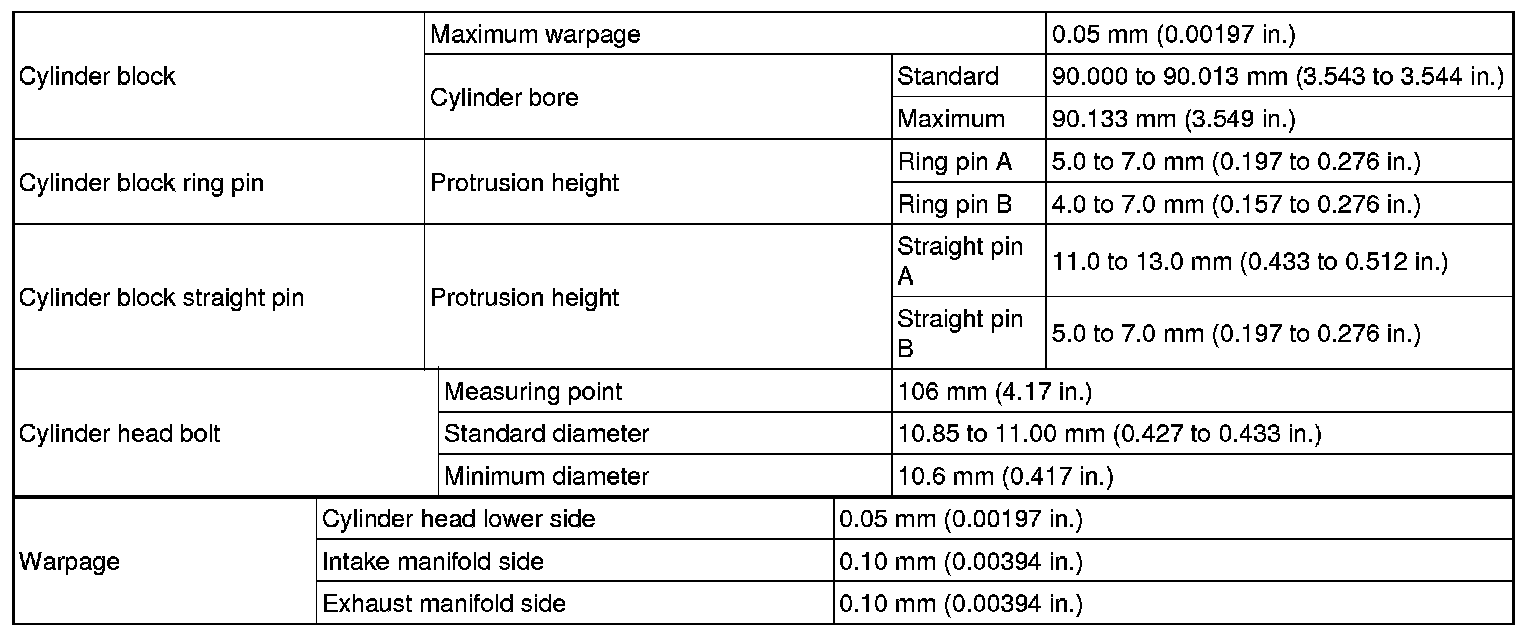

CYLINDER HEAD SUB-ASSEMBLYThe cylinder head bolts are tightened in 4 progressive steps.
Install the plate washers to the cylinder head bolts.
Step 1

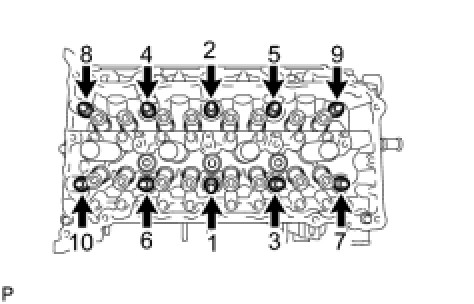

Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head bolts in several steps, in the sequence shown in the illustration.
Torque 36 Nm (367 kgf-cm, 27 ft-lbf)
Do not drop the plate washer for the cylinder head bolt into the cylinder head.
Step 2
Tighten the cylinder head bolts again in the sequence shown in the illustration to make sure that they are tightened to the specified torque.
Torque 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 3
Mark each cylinder head bolt head with paint as shown in the illustration.
Tighten the cylinder head bolts 90° in the sequence shown in step 1.
Step 4:
Tighten the cylinder head bolts another 90° in the sequence shown in step 1.
CYLINDER HEAD

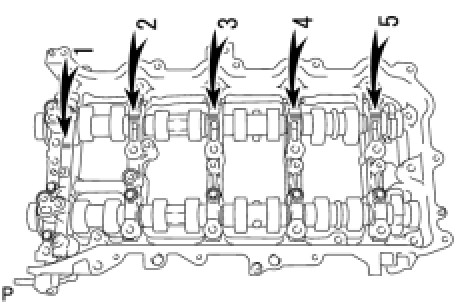

CAMSHAFT BEARING CAP

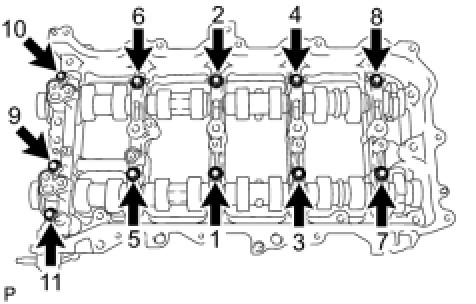

Install the 11 bolts in the order shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
Make sure that the camshaft rotates smoothly after installing the bearing caps.
CAMSHAFT HOUSING SUB-ASSEMBLY
Install the camshaft housing within 3 minutes and tighten the bolts within 10 minutes after applying seal packing.

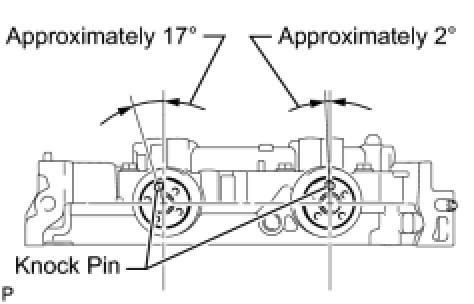

Position the knock pin of the No. 1 and No. 2 camshafts as shown in the illustration.

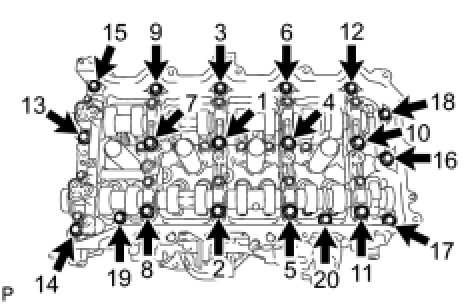

Install the camshaft housing, and then install the 20 bolts in the order shown in the illustration.
Torque 27 Nm (275 kgf-cm, 20 ft-lbf)
