Locations
>>

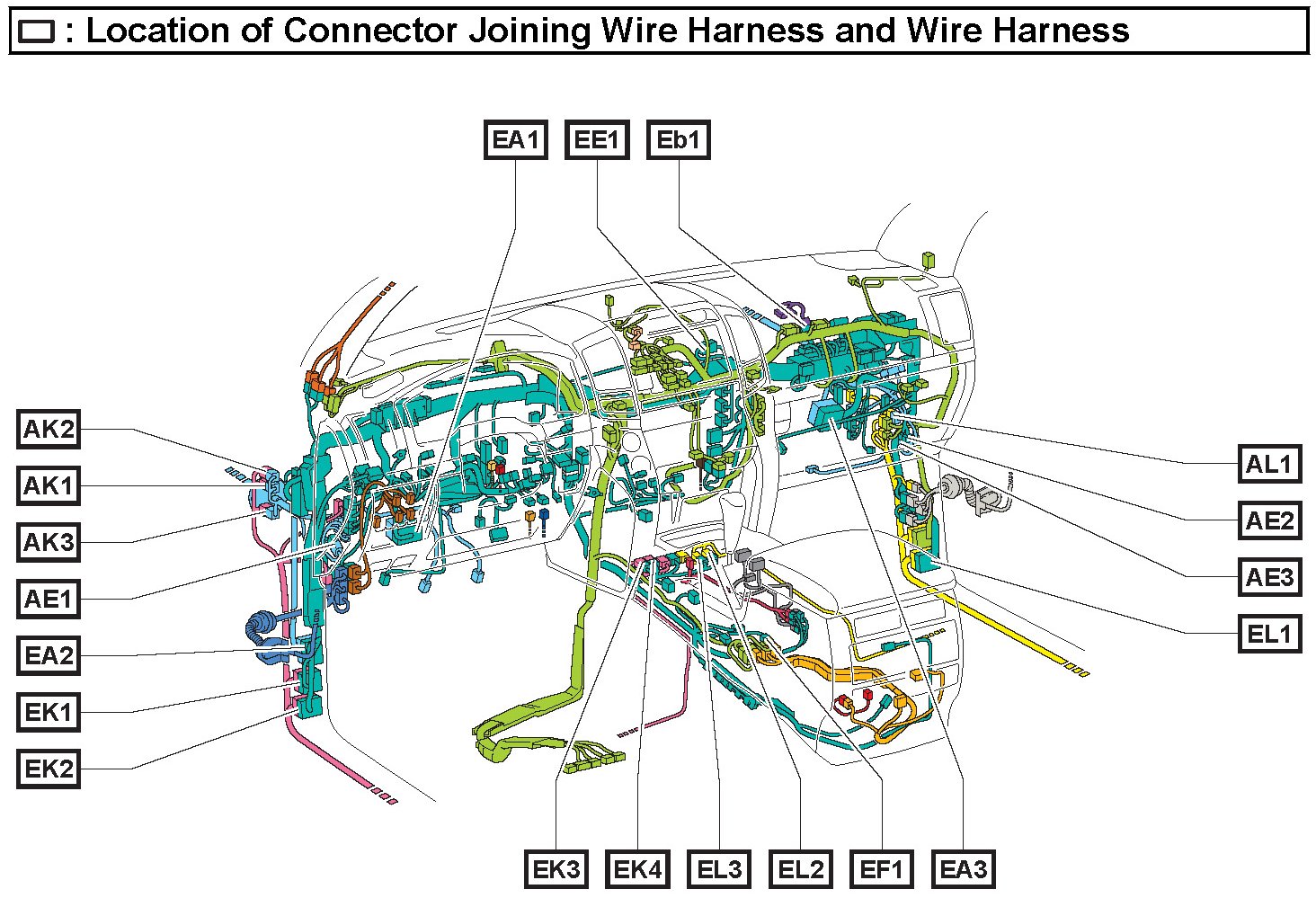

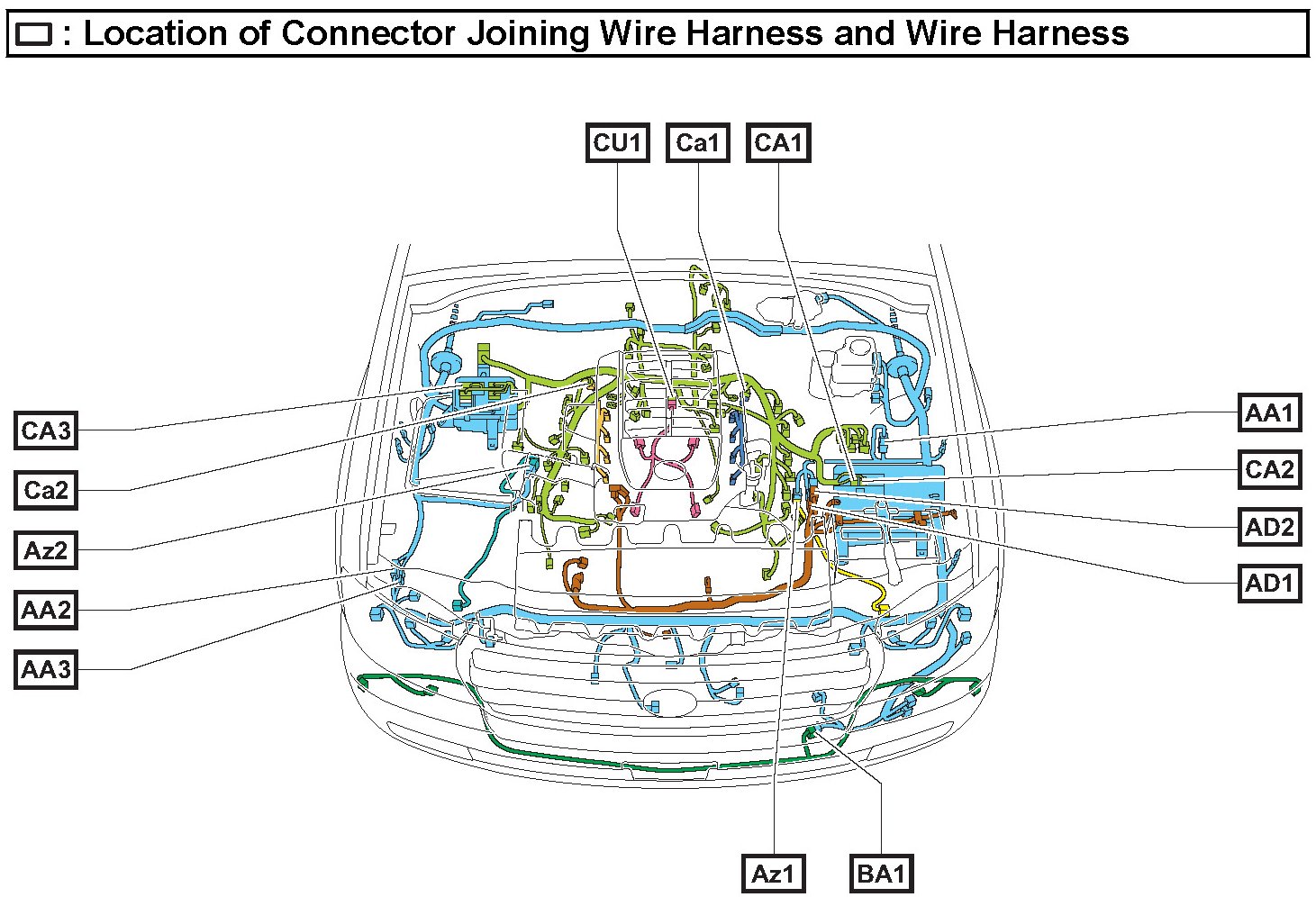

Connector Locations
Connector Locations
AA1-CU1:
AE1-EL3:
FE1-VE2:

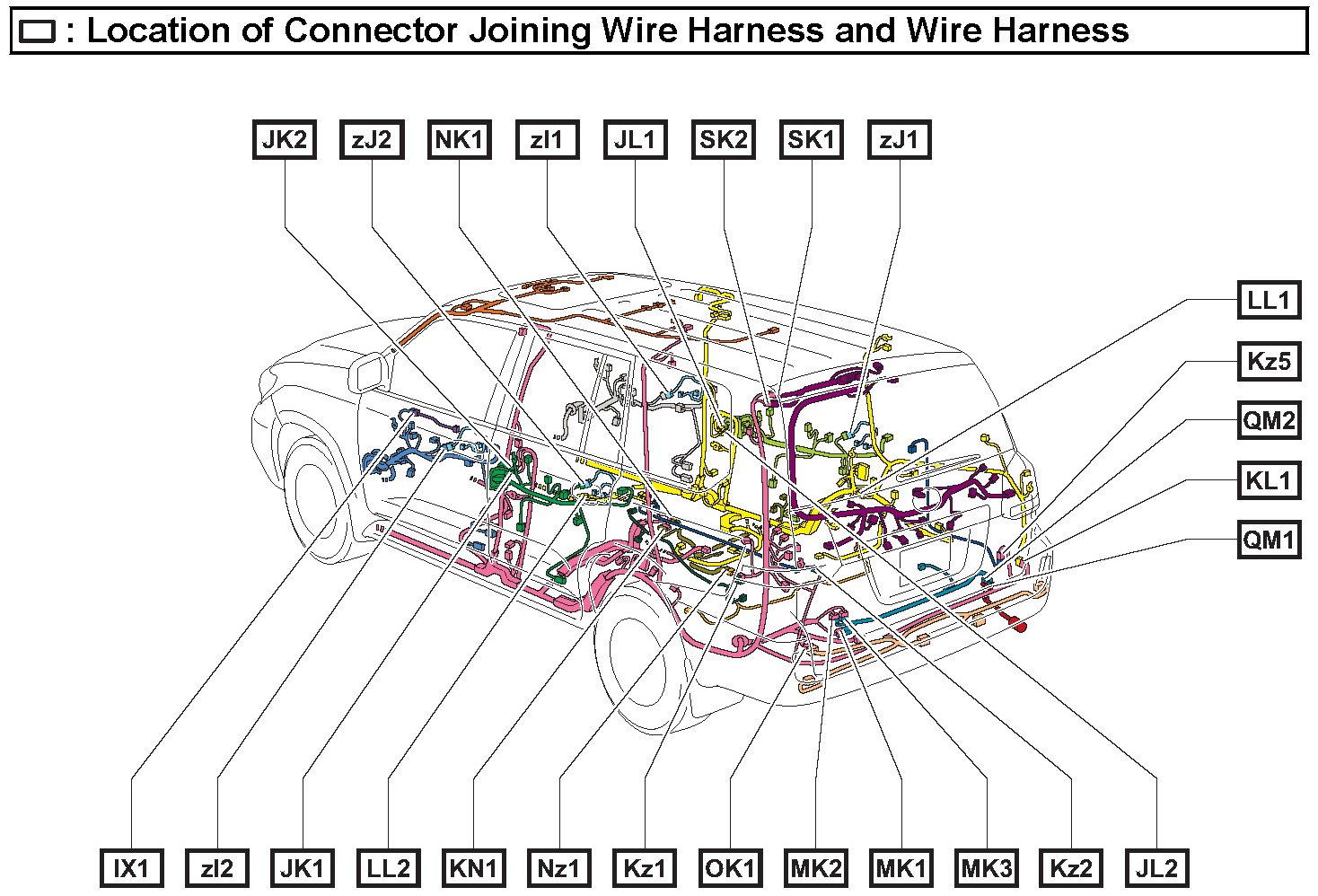

IX1-zJ2:

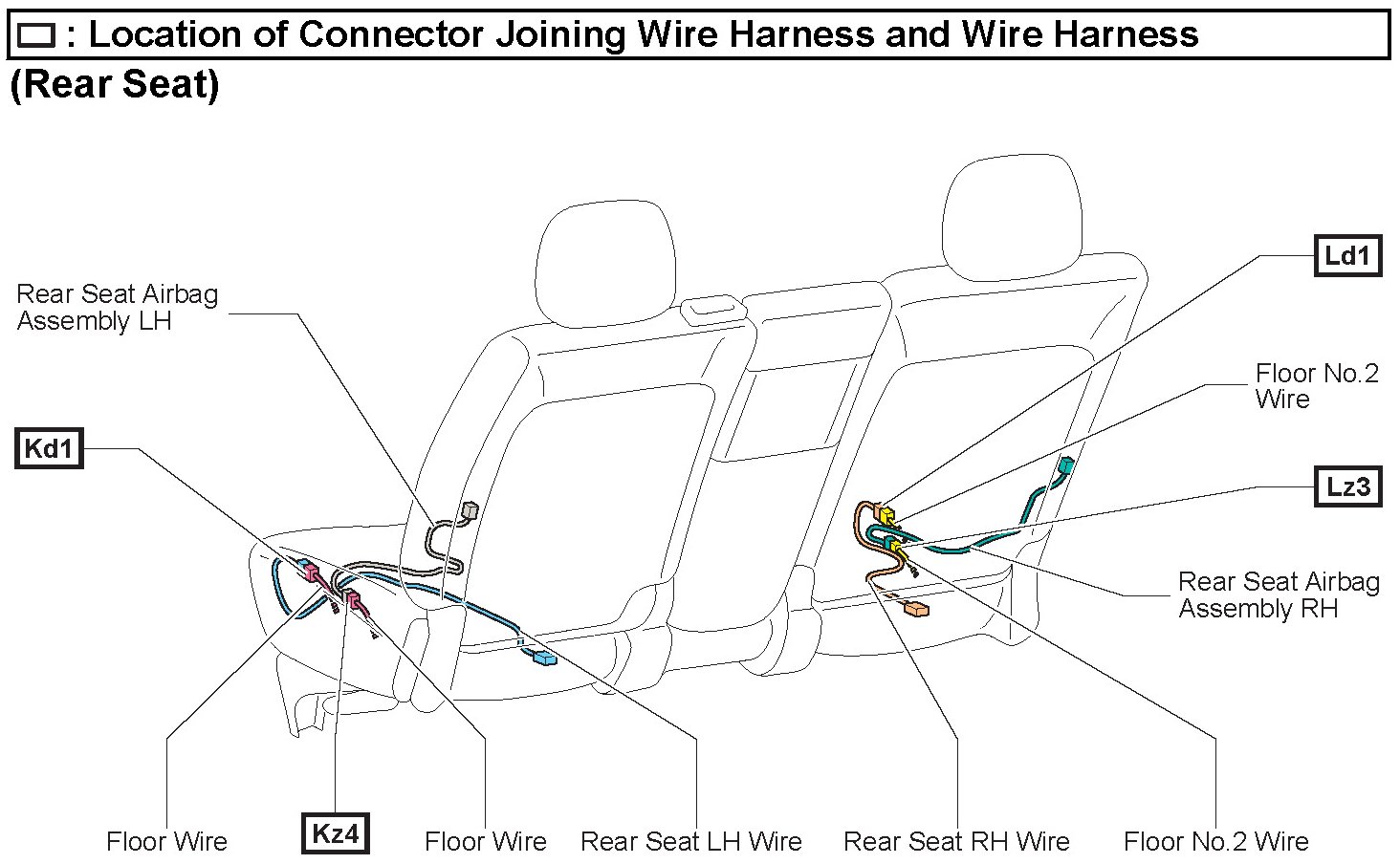

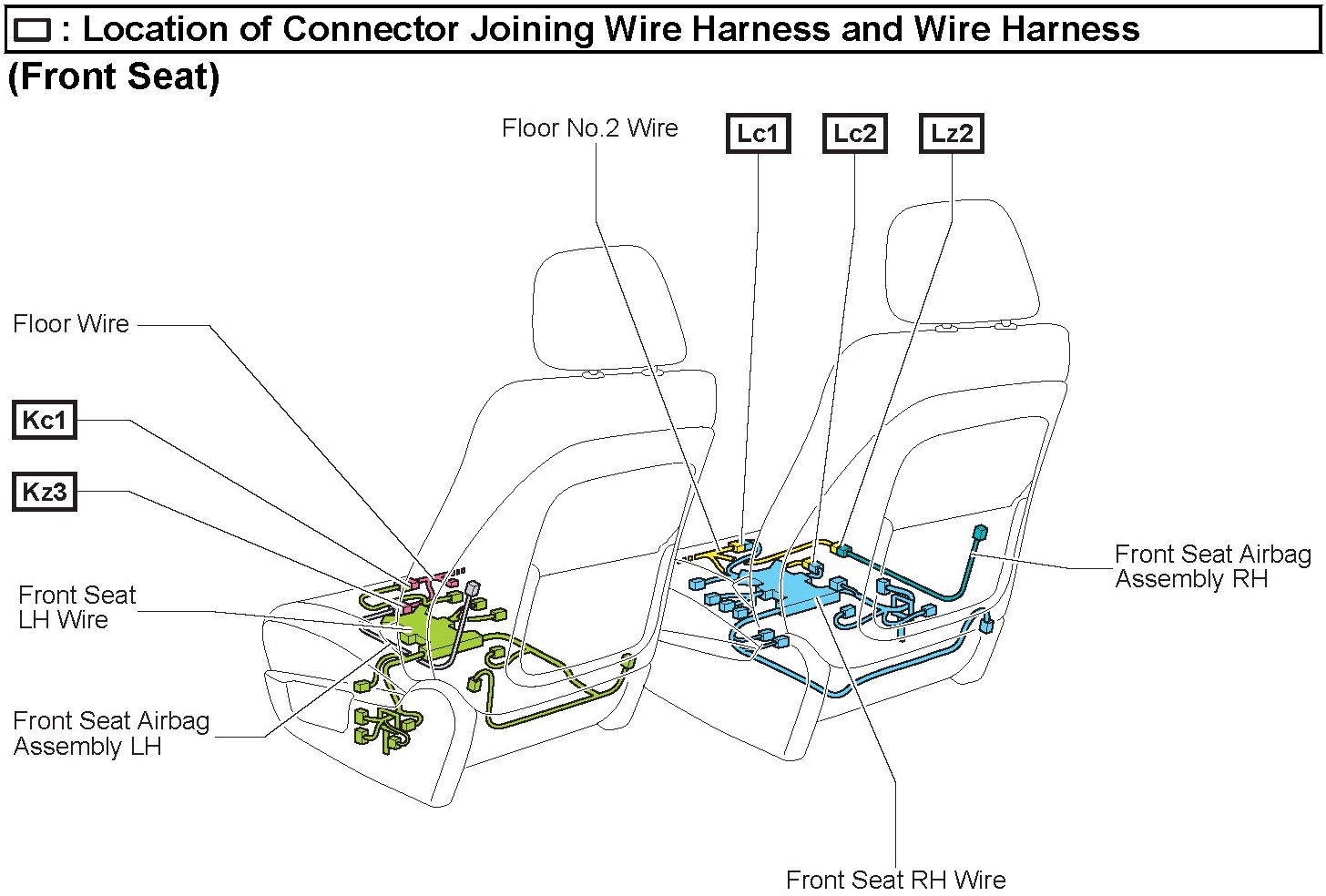

Kc1-Lz2:
Kd1-Lz3:
