Matrix FWD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

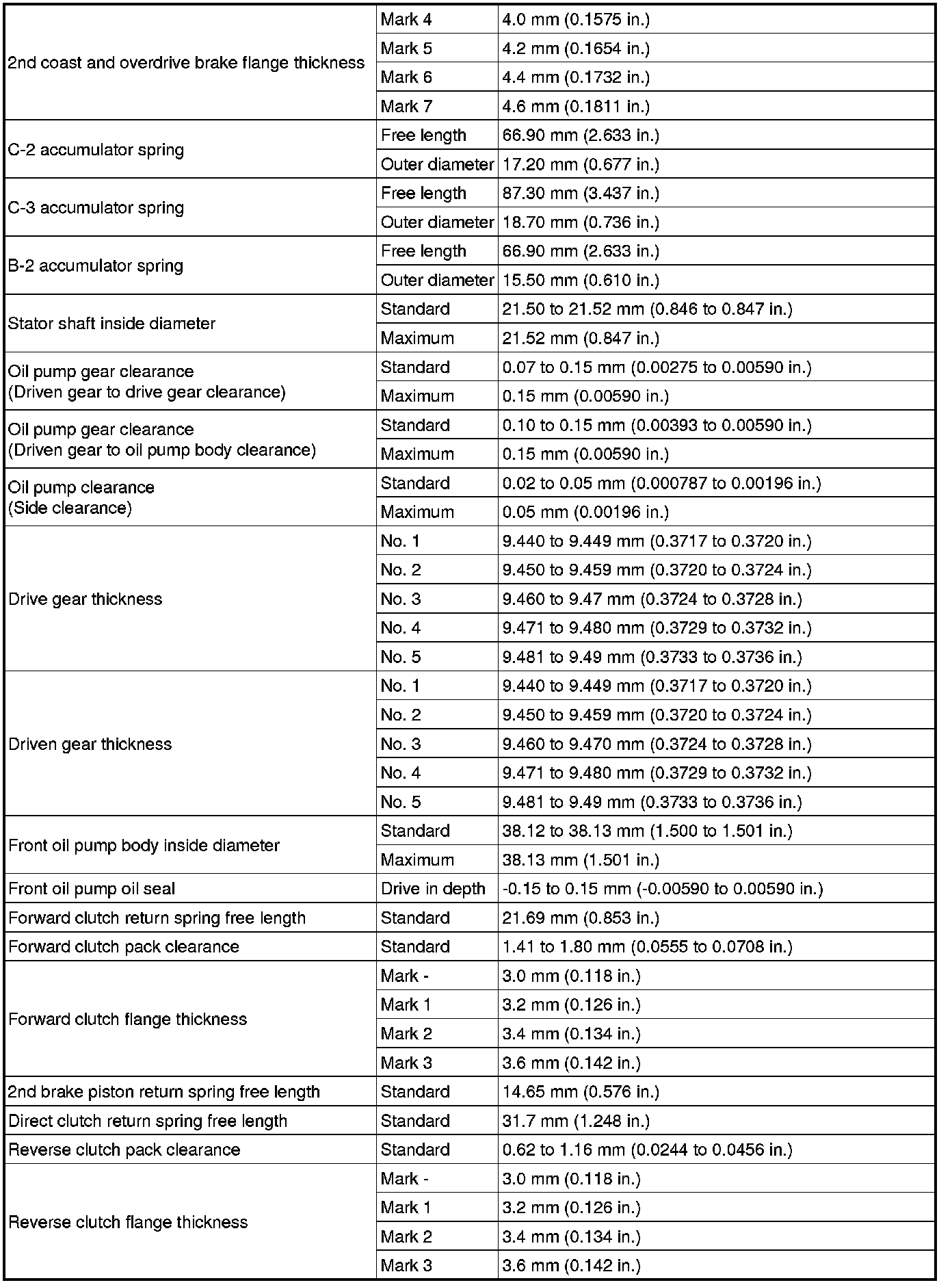

SPECIFICATIONS: U341E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA
