Repair Instruction - Customize Parameters
INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS
NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
HINT
The following items can be customized.
1. POWER DOOR LOCK CONTROL SYSTEM

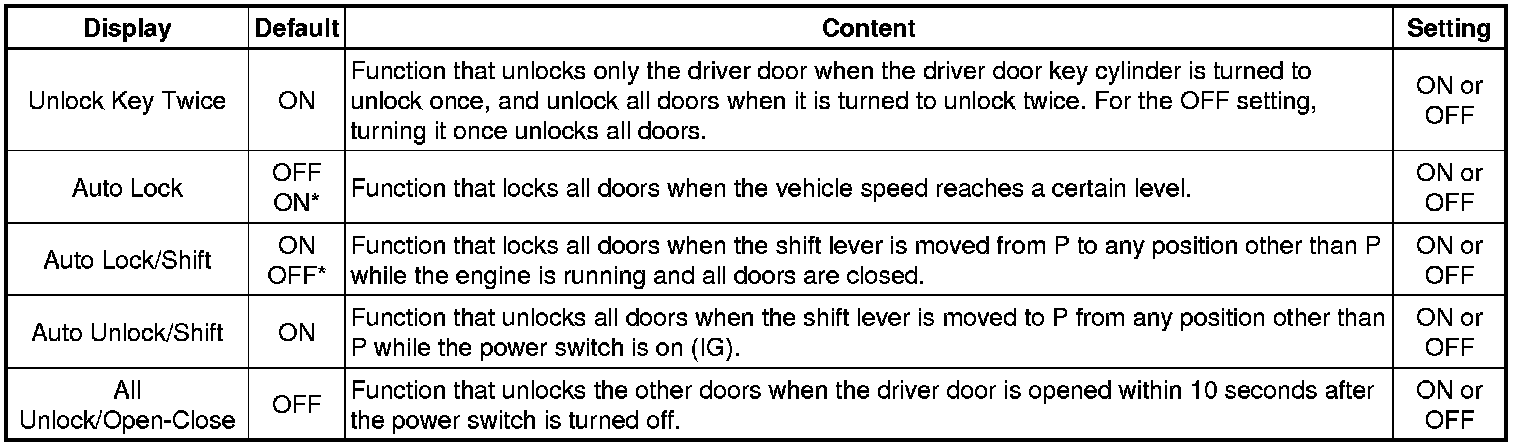

Door Lock
*: for Korea

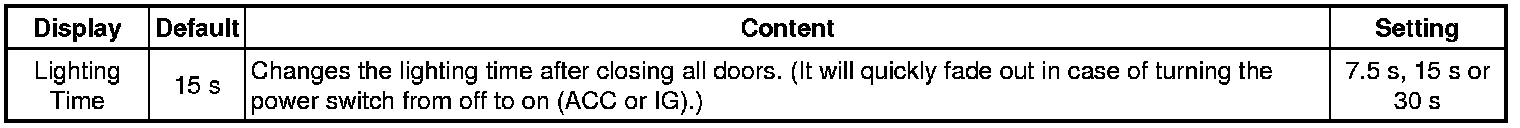

Illuminated Entry
2. WIRELESS DOOR LOCK CONTROL SYSTEM
Wireless Door Lock Control System
*1: except for Korea
*2: for Korea
Illuminated Entry

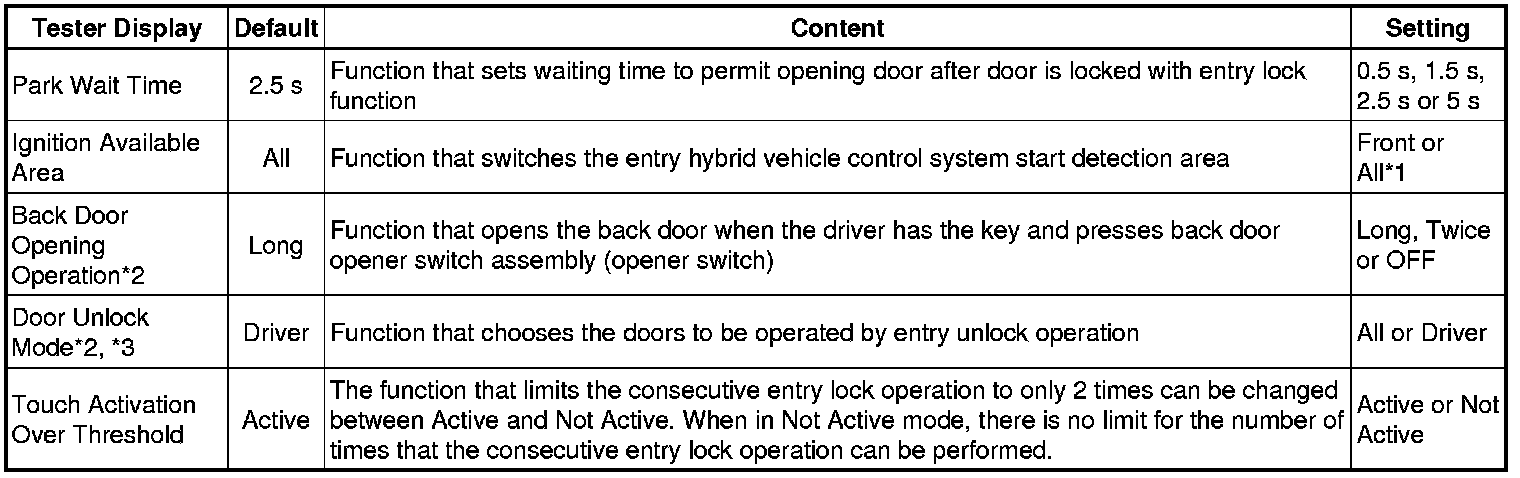

3. SMART KEY SYSTEM (for Entry Function)
Smart Key / Access
*1: Weak radio waves will still be emitted from oscillators other than the front oscillator even when the "Front" customize setting is selected.
*2: w/ Entry System Back Door Open Function
*3: except for Korea and Mexico
Warning
4. ENTRY UNLOCK MODE SWITCHING* (SMART KEY SYSTEM (for Entry Function))
*: except for Korea and Mexico
(a) Check that the power source mode is OFF and the LED on the key is not blinking. Press the LOCK button and one of the other buttons on the key at the same time for approximately 5 seconds while the key is in the actuation area.
Driver door unlock default setting:
When the switches are pressed and held for 5 seconds, the entry door unlock mode changes to the mode that is not currently selected.
NOTICE:
After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
Driver door unlock mode:
When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.*
*: w/ Entry System Back Door Open Function
All door unlock mode:
When any touch sensor is touched, all doors unlock.
(b) The certification ECU (smart key ECU assembly) receives this signal from the door control receiver assembly and changes the smart key system to entry unlock mode.

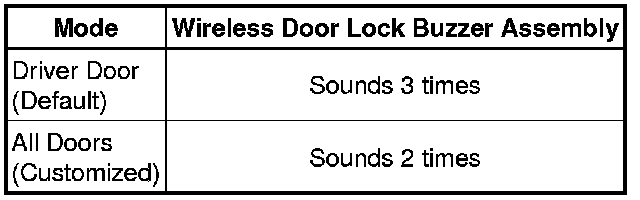

(c) The certification ECU (smart key ECU assembly) sounds the buzzers of the wireless door lock buzzer assembly.
HINT
The procedure only changes entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.
5. ELECTRICAL KEY CANCEL (SMART KEY SYSTEM (for Entry Function))
The electrical key cancel operation disables the following functions:
Entry Unlock/Lock
Entry Hybrid Vehicle Control System Start
Entry System Back Door Open Function*
*: w/ Entry System Back Door Open Function
Electrical Key Lock-in Prevention
Warning
(a) The operation procedure is as follows:
Precondition:
Power switch off, driver door closed and unlocked.
(1) Push the unlock switch of the key once.
(2) Open the driver door within 5 seconds.
(3) Push the unlock switch of the key twice within 5 seconds.
(4) Close and open the driver door twice within 30 seconds.
(Driver door: Close -> Open -> Close -> Open)
(5) Push the unlock switch of the key twice within 5 seconds.
(6) Close and open the driver door within 30 seconds.
(Driver door: Close -> Open)
(7) Close the driver door within 5 seconds.
When electrical key cancel is activated, the wireless door lock buzzer sounds twice.
To return to the original condition, perform the procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.
6. SMART KEY SYSTEM (for Start Function)

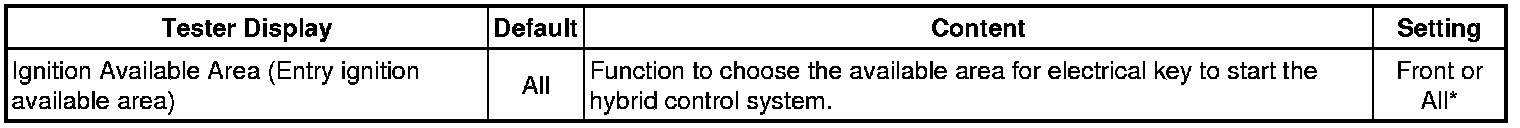

Smart Key / Access
*: Weak radio waves will still be emitted from oscillators other than the front oscillator even when the "Front" customize setting is selected.
7. CUSTOMIZING FUNCTION WITHOUT TECHSTREAM (SMART KEY SYSTEM (for Start Function))
Performing the following procedure disables the smart key system.
HINT
To start the hybrid control system while the smart key system is disabled, follow the procedure for when the key battery is low Smart Key System (for Start Function).
(a) The operation procedure is as follows:
Precondition:
Power switch off, driver door closed and unlocked.
(1) Push the unlock switch of the key once.
(2) Open the driver door within 5 seconds.
(3) Push the unlock switch of the key twice within 5 seconds.
(4) Close and open the driver door twice within 30 seconds.
(Driver door: Close -> Open -> Close -> Open)
(5) Push the unlock switch of the key twice within 5 seconds.
(6) Close and open the driver door within 30 seconds.
(Driver door: Close -> Open)
(7) Close the driver door within 5 seconds.
When electrical key cancel is activated, the wireless door lock buzzer sounds twice.
To return to the original condition, perform the procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.

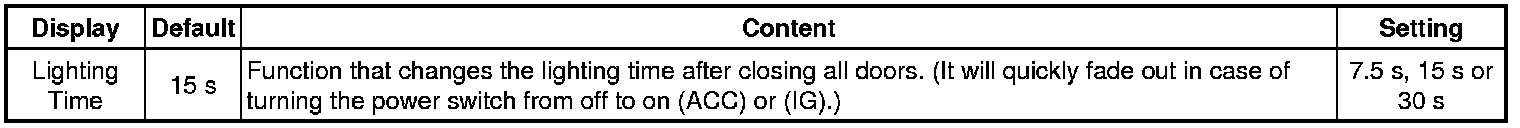

8. LIGHTING SYSTEM (LIGHTING INT)

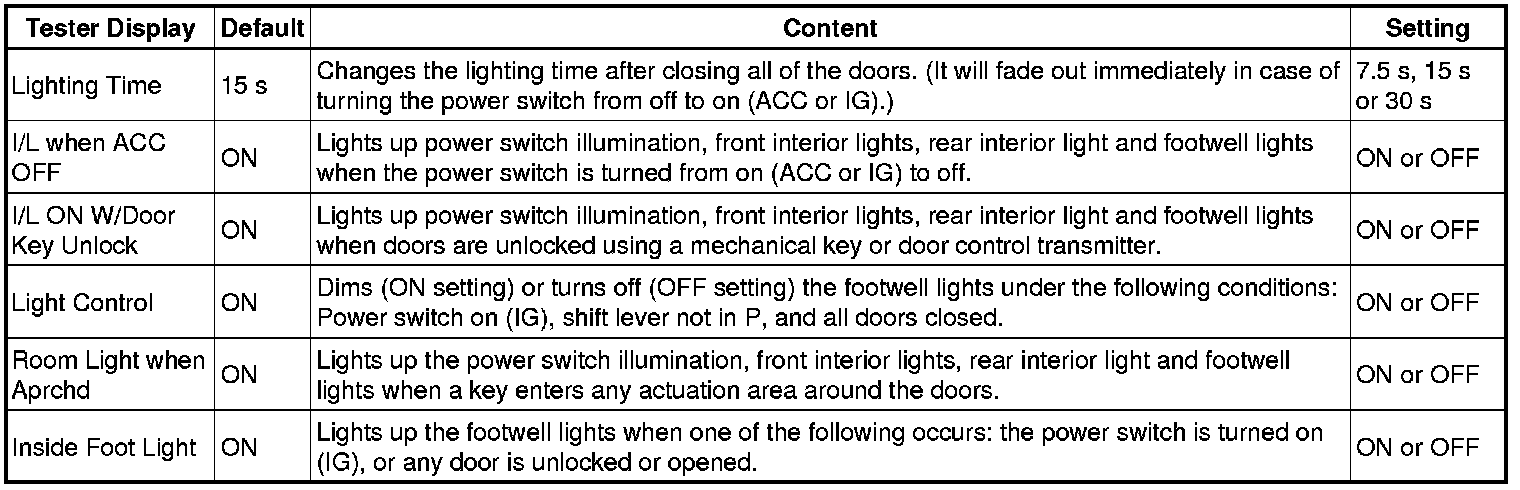

Illuminated Entry
9. METER / GAUGE SYSTEM

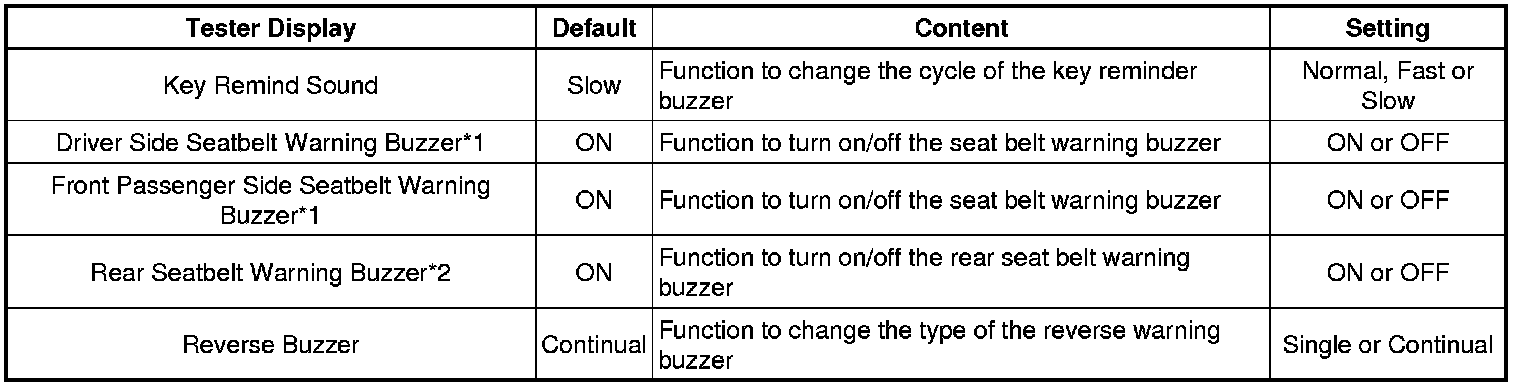

Warning
*1: This setting is only valid for the buzzer which sounds at 20 km/h (12 mph) or more.
*2: w/ Rear Seat Belt Warning
10. SEAT BELT WARNING SYSTEM

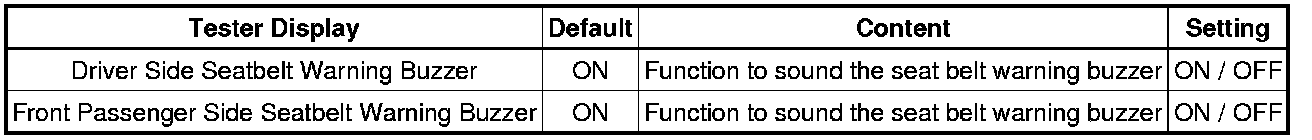

Combination Meter
HINT
This setting is only valid when the vehicle is driven at 20 km/h (12 mph) or more.
11. AIR CONDITIONING SYSTEM

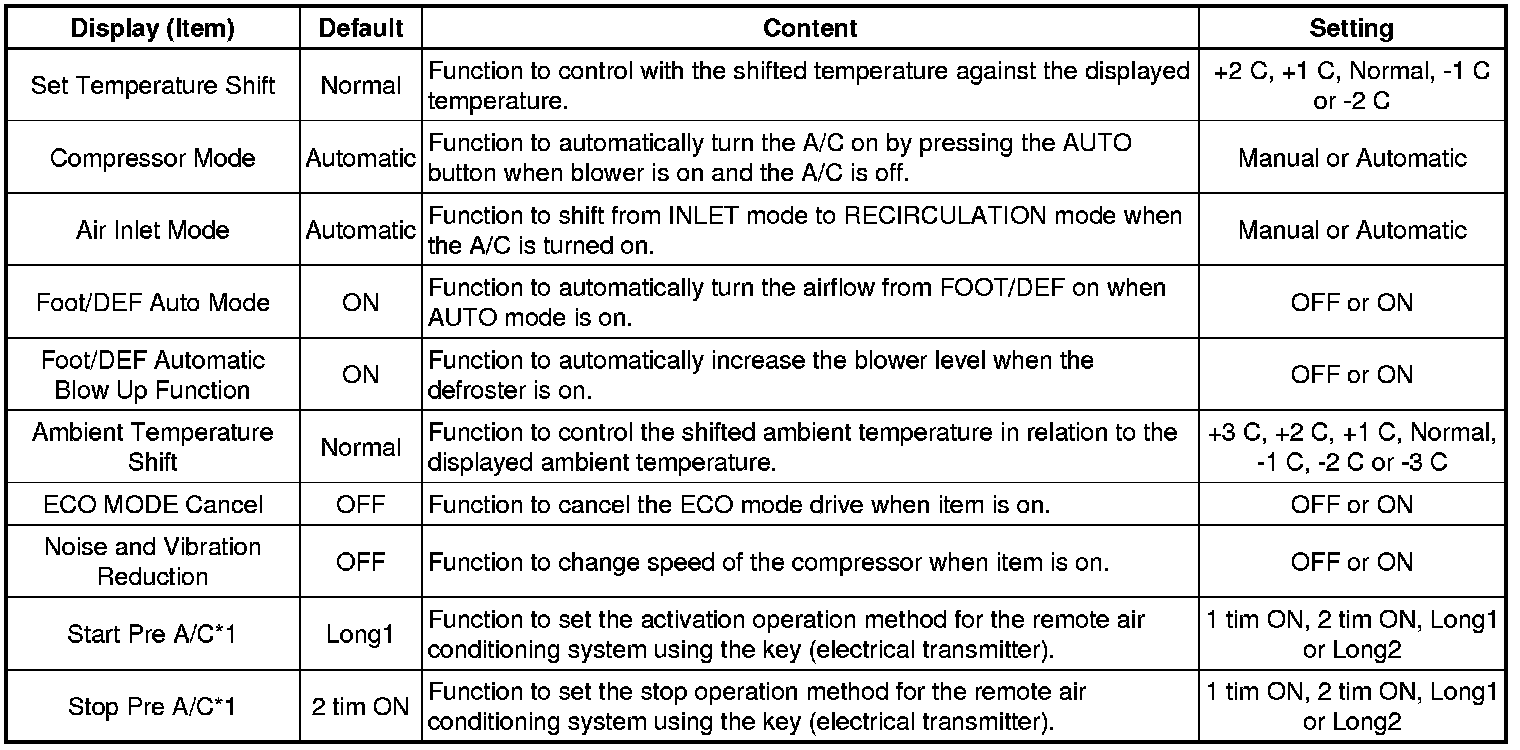

Air Conditioner
*1: w/ Remote Air Conditioning System

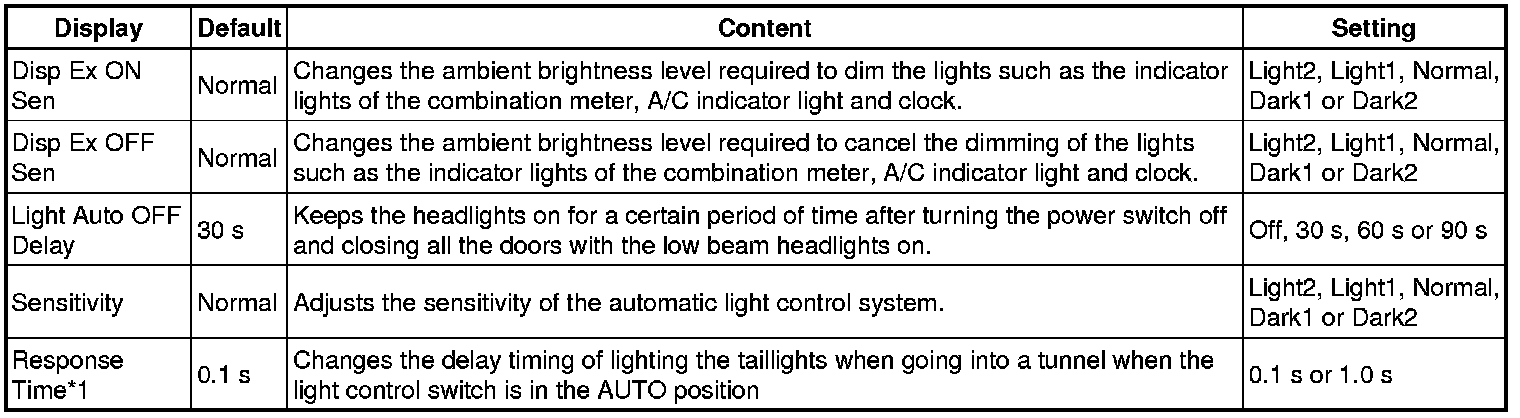

12. LIGHTING SYSTEM (LIGHTING EXT)
Light Control
HINT
*1: for Korea
