Main Relay (Computer/Fuel System): Locations

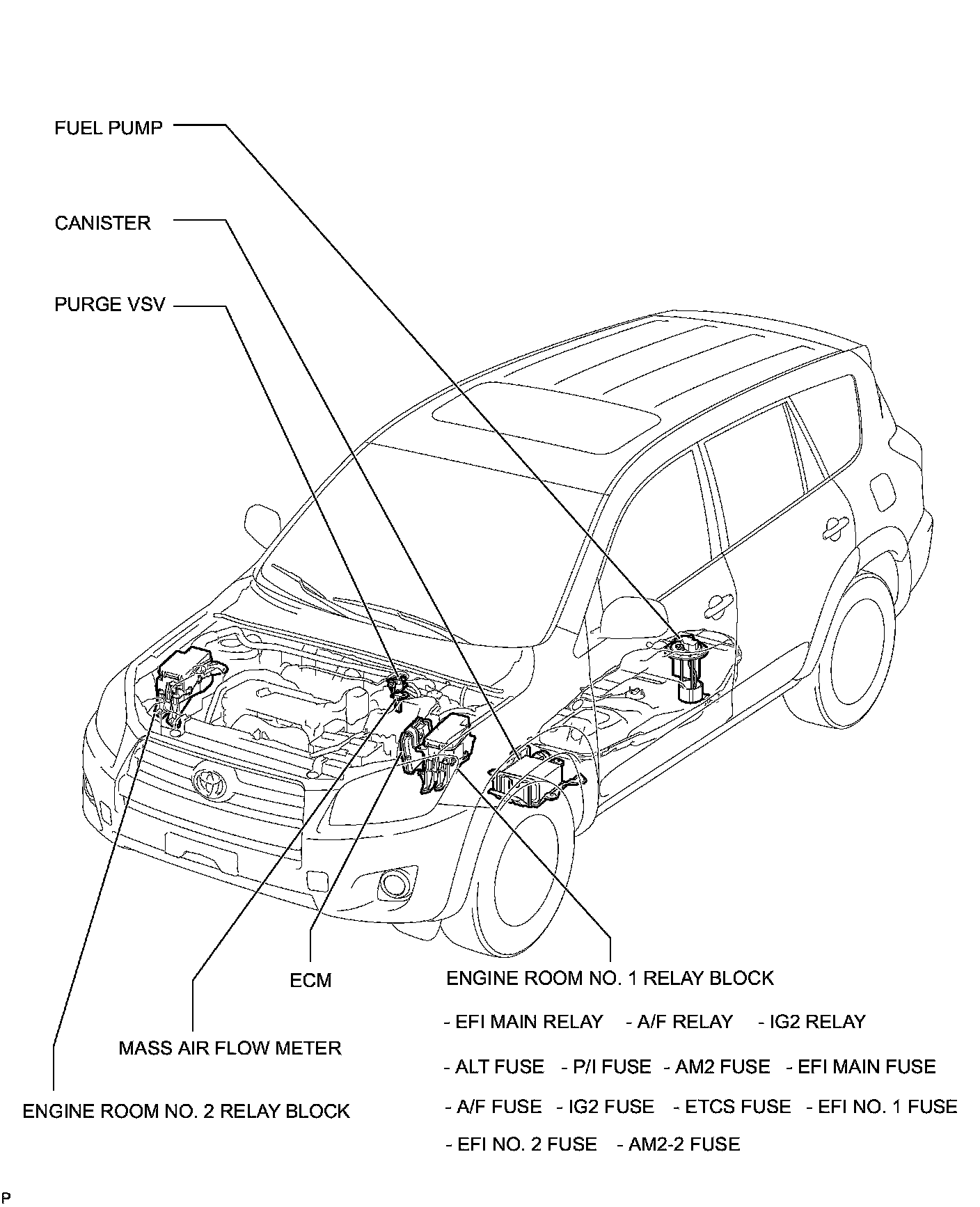

2AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

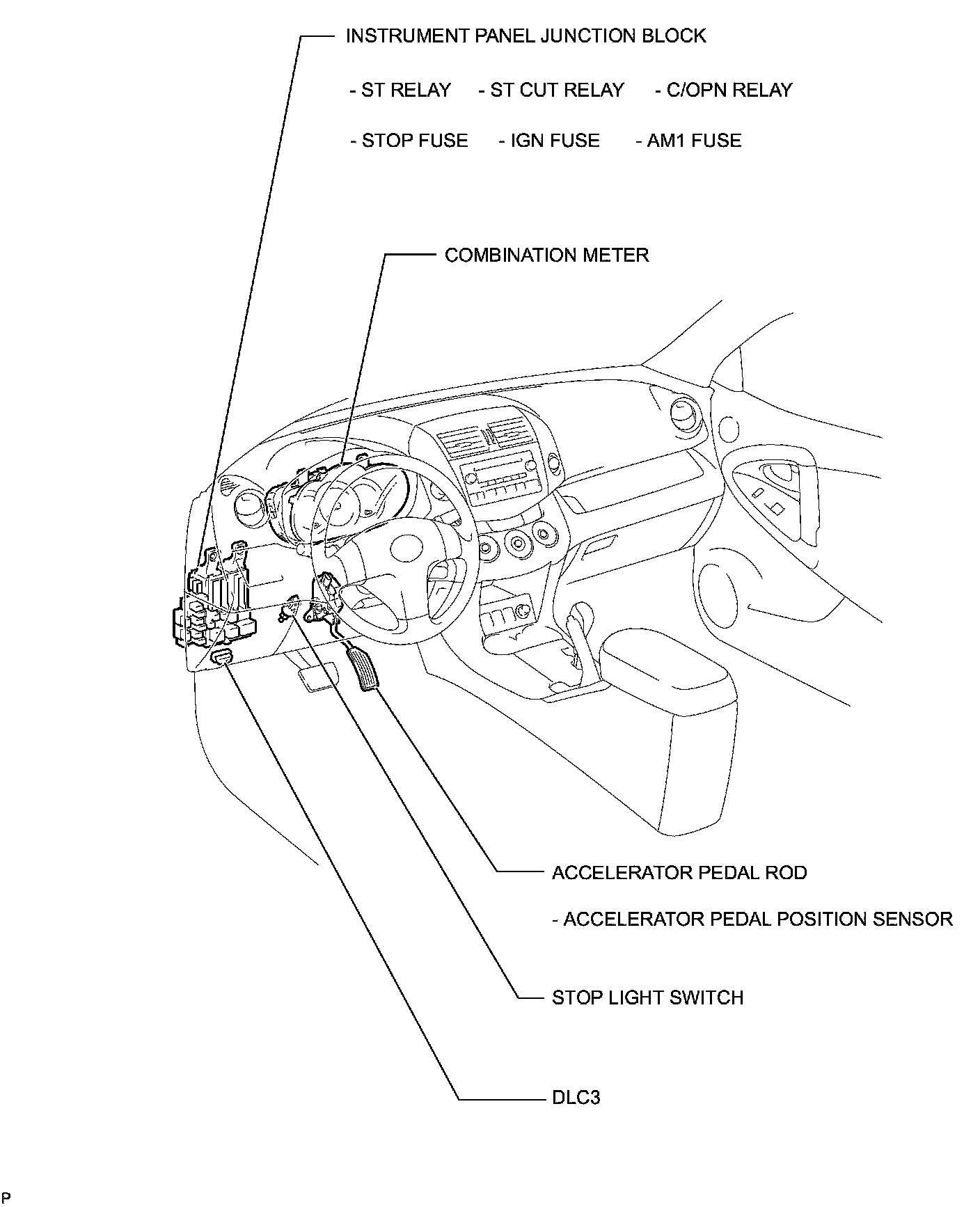

Instrument Panel J/B - Cowl Side Left:
