Removal

2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE HEATED OXYGEN SENSOR (for Sensor 2)

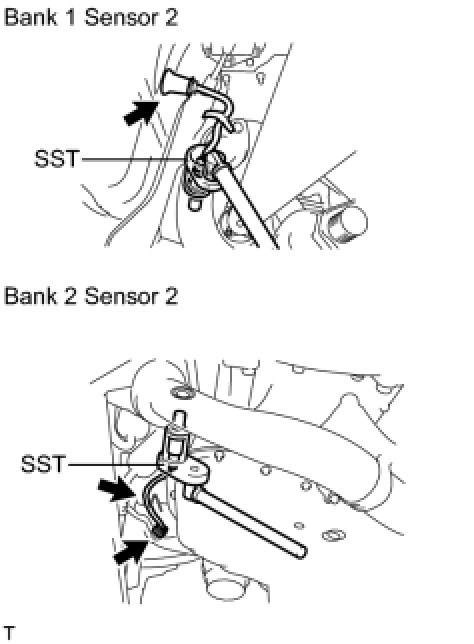

(a) Bank 1 Sensor 2:

Remove the rear console box Removal.

(b) Disconnect the sensor connector.

(c) Using SST, remove the sensor from the exhaust pipe.

SST : 09224-00010
