DTC 01-D5

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 01-D5,01-D8,01-D9,01-DA,01-DB,01-DE: Absence of Registration Unit
01-DE - Slave Reset

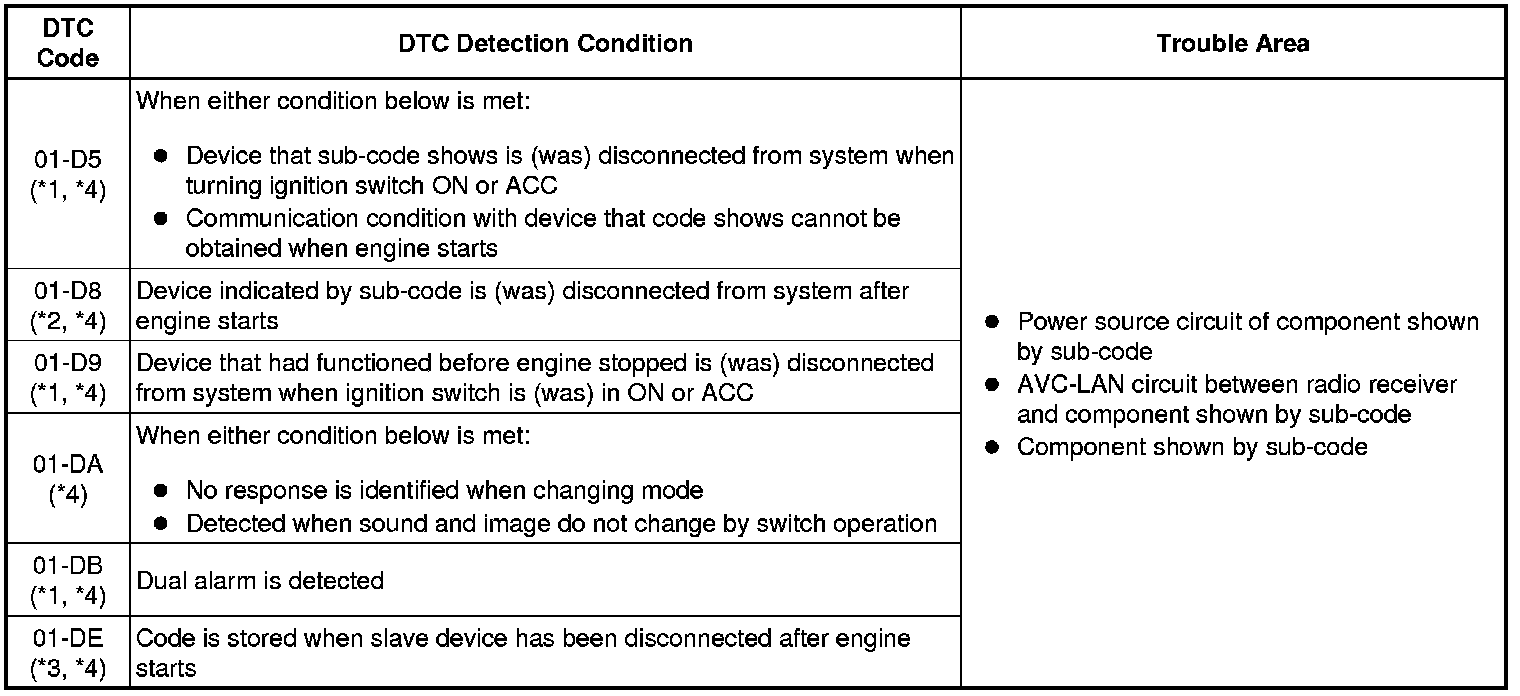

DESCRIPTION





HINT
* *1: Even if no failure is detected, a trouble code may be recorded depending on the battery condition or engine start voltage.
* *2: If the power connector is disconnected after the engine starts, this code is recorded after 180 seconds.
* *3: This code may be stored if the engine is started and the ignition switch is turned to the START position again.
* *4: If the device is reported as not existing during verification, check the power source circuit and AVC-LAN circuit for the device.

NOTICE:
* Before starting troubleshooting, be sure to clear DTCs to erase codes stored due to the reasons described in the HINT above. Then, check for DTCs and troubleshoot according to the output DTCs.
* The radio receiver is the master unit.
* Be sure to clear and recheck DTCs after the inspection is completed to confirm that no DTCs are output.

INSPECTION PROCEDURE

NOTICE:
Be sure to read DESCRIPTION before performing the following procedures.

PROCEDURE

1. CHECK "RADIO RECEIVER COMMUNICATION ERROR" IN FLOWCHART

(a) Refer to the radio receiver communication error Radio Receiver Communication Error.

NEXT -- END
