Front Passenger Side - Side Airbag Sensor Circuit Malfunction - Airbag System

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1625/22: Front Passenger Side - Side Airbag Sensor Circuit Malfunction
B1625/22 - Front Passenger Side - Side Airbag Sensor Circuit Malfunction

DESCRIPTION

The side airbag sensor RH consists of parts including the diagnostic circuit and the lateral deceleration sensor.

When the center airbag sensor receives signals from the lateral deceleration sensor, it determines whether or not the SRS should be activated.

DTC B1625/22 is set when a malfunction is detected in the side airbag sensor RH circuit.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK SIDE AIRBAG SENSOR RH





(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

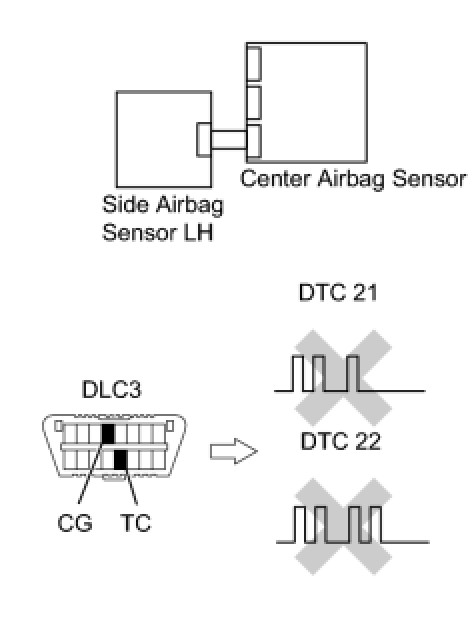

(c) Interchange the side airbag sensor RH and the side airbag sensor LH, and connect the connectors to them.

(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(e) Turn the ignition switch to ON, and wait for at least 60 seconds.

(f) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(g) Turn the ignition switch off.

(h) Turn the ignition switch to ON, and wait for at least 60 seconds.

(i) Check the DTCs Reading and Clearing Diagnostic Trouble Codes.

Result





DTCs other than DTC B1620/21 and B1625/22 may be output at this time, but they are not related to this check.

C -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY

B -- REPLACE SIDE AIRBAG SENSOR RH

A -- USE SIMULATION METHOD TO CHECK
