Removal

2AR-FE EMISSION CONTROL: CANISTER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE CANISTER

(a) Disconnect the 2 tubes, hose and connector.





(1) Using a screwdriver, pry up the retainer.

HINT
Do not remove the retainer.

(2) Disconnect the purge line hose.

(3) Disconnect the air inlet line tube from the canister (leak detection pump).

(4) Disconnect the connector from the canister (leak detection pump).

(5) Disconnect the vent line tube from the canister.

NOTICE:
* Remove any dirt or foreign matter on the fuel tube connector before performing this work.
*




Do not allow any scratches or foreign matter on the parts when disconnecting them as the fuel tube connector has an O-ring that seals the pipe.
* Perform this work by hand. Do not use any tools.
* Do not forcibly bend, twist or turn the nylon tube.
* Protect the disconnected part by covering it with a plastic bag after disconnecting the vent line tube.
* If the fuel tube connector and pipe are stuck, push and pull to release them.

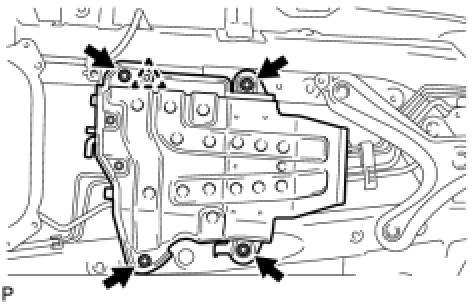

(b) Remove the 4 bolts, clip and canister.
