Home
>>
Toyota
>>
2011
>>
RAV4 4WD L4-2.5L (2AR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Removal and Replacement
>>
Transaxle Assembly
>>
Components
Components

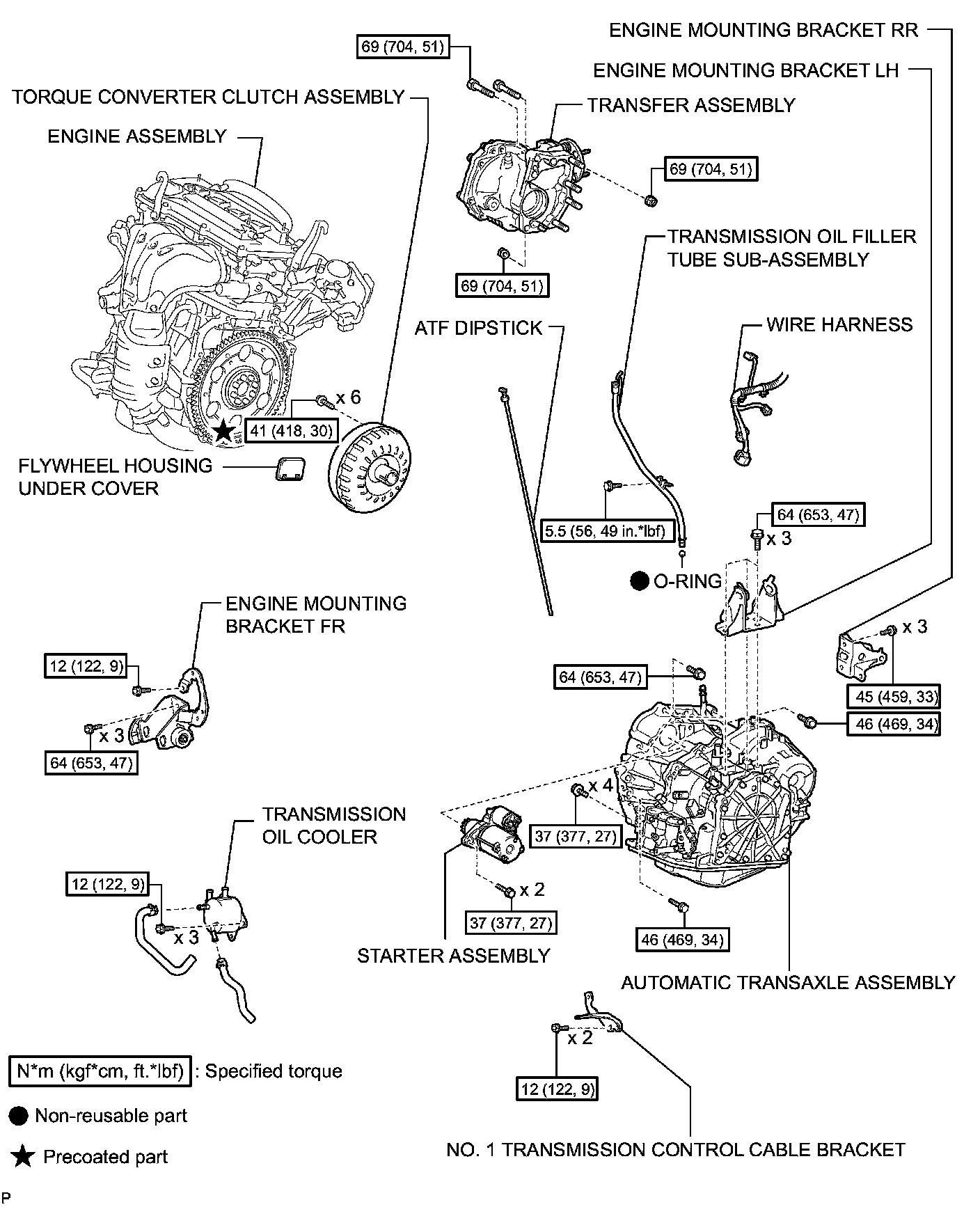

U140F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE ASSEMBLY: COMPONENTS
