Installation

DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System): INSTALLATION

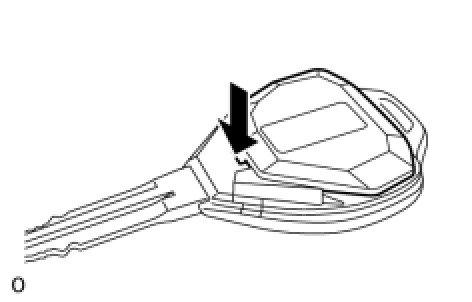

1. INSTALL DOOR CONTROL TRANSMITTER MODULE

NOTICE:
Take extra care when handling these precision electronic components.

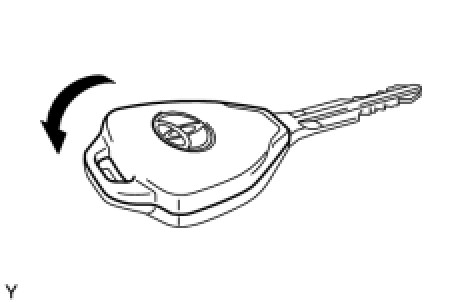

2. INSTALL TRANSMITTER HOUSING COVER





Install the transmitter housing cover to the transmitter housing case.

(a) Check that the transmitter's LED illuminates 3 times when the switch is pressed 3 times.

OK:

Transmitter's LED illuminates 3 times when switch is pressed 3 times.
