Locations
>>
Connector Locations
Connector Locations

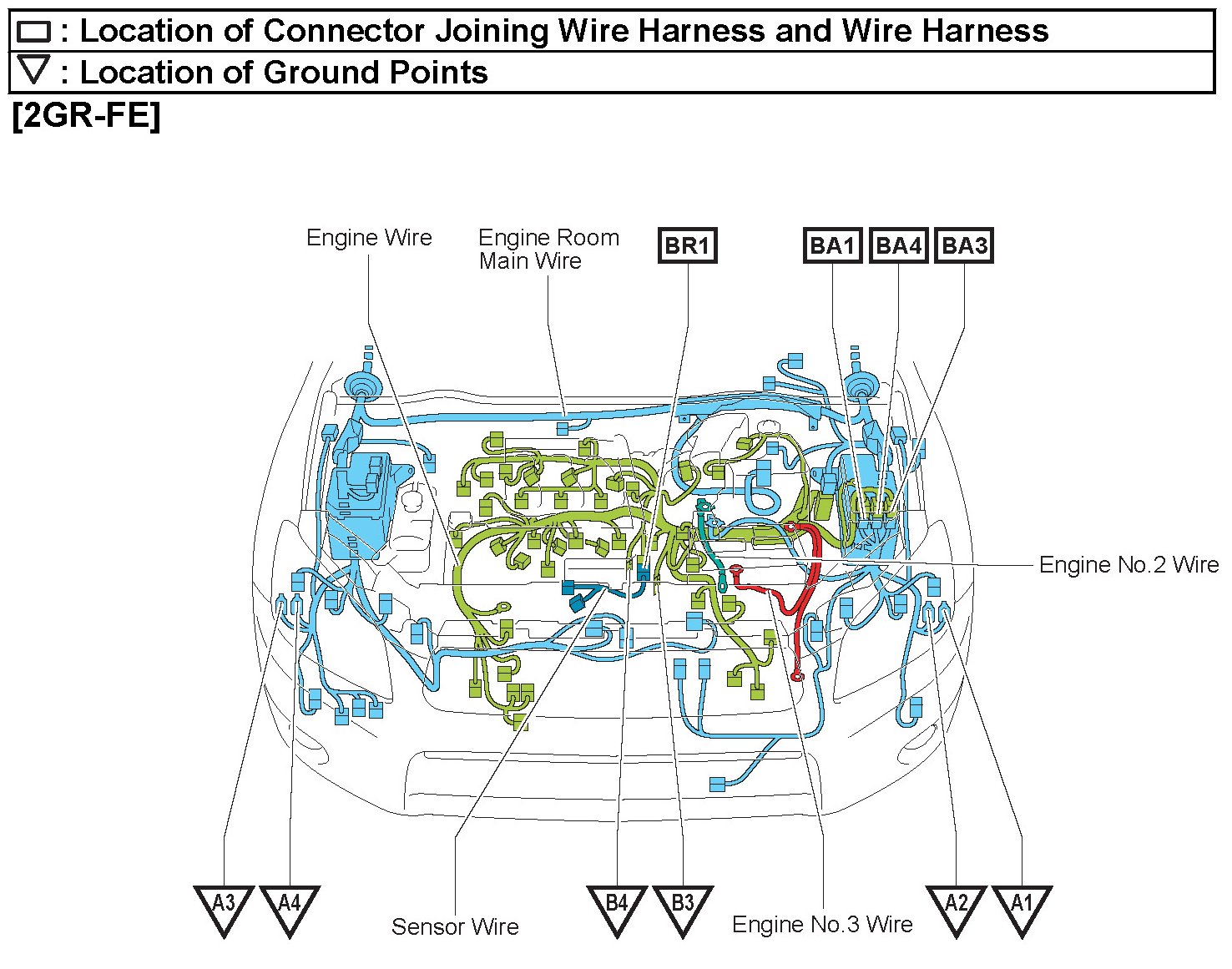

A1-B4 / BA1-BR1:
AE1-SK2:
K1-Q1 / Gf1-WK1:
KX1-LY1:
