Removal

2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

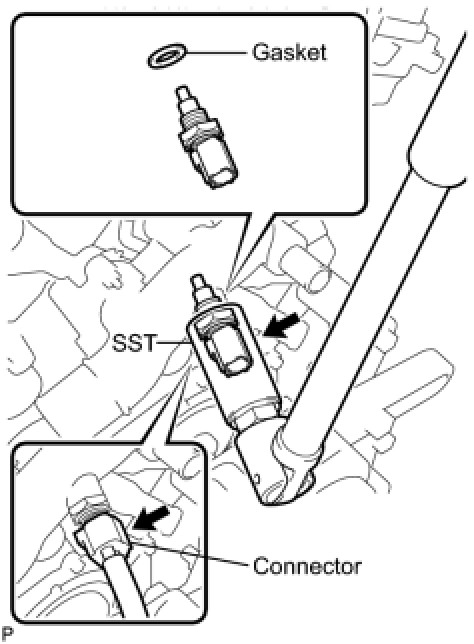

3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

(a) Disconnect the sensor connector.





(b) Using SST, remove the sensor and gasket.

SST : 09817-33190
