Installation

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

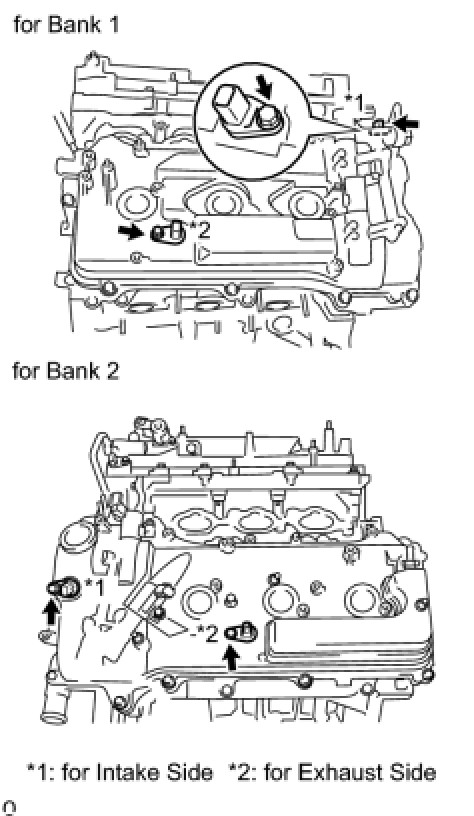

1. INSTALL VVT SENSOR





Install the 4 sensors with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(a) Connect the 4 sensor connectors.

2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation

3. INSTALL ENGINE ASSEMBLY

(a) Install the engine Installation.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
