Transmission Control Systems: Locations

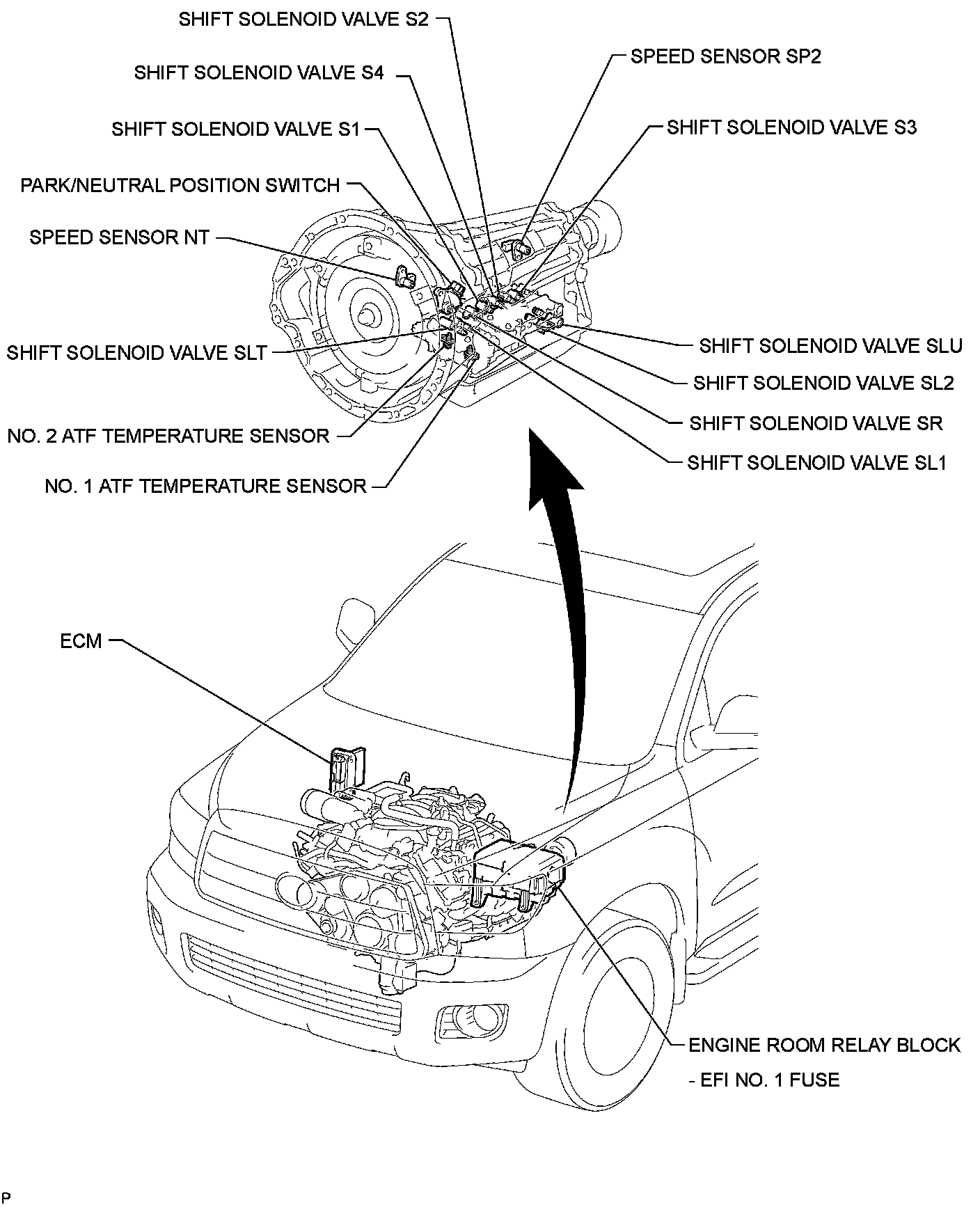

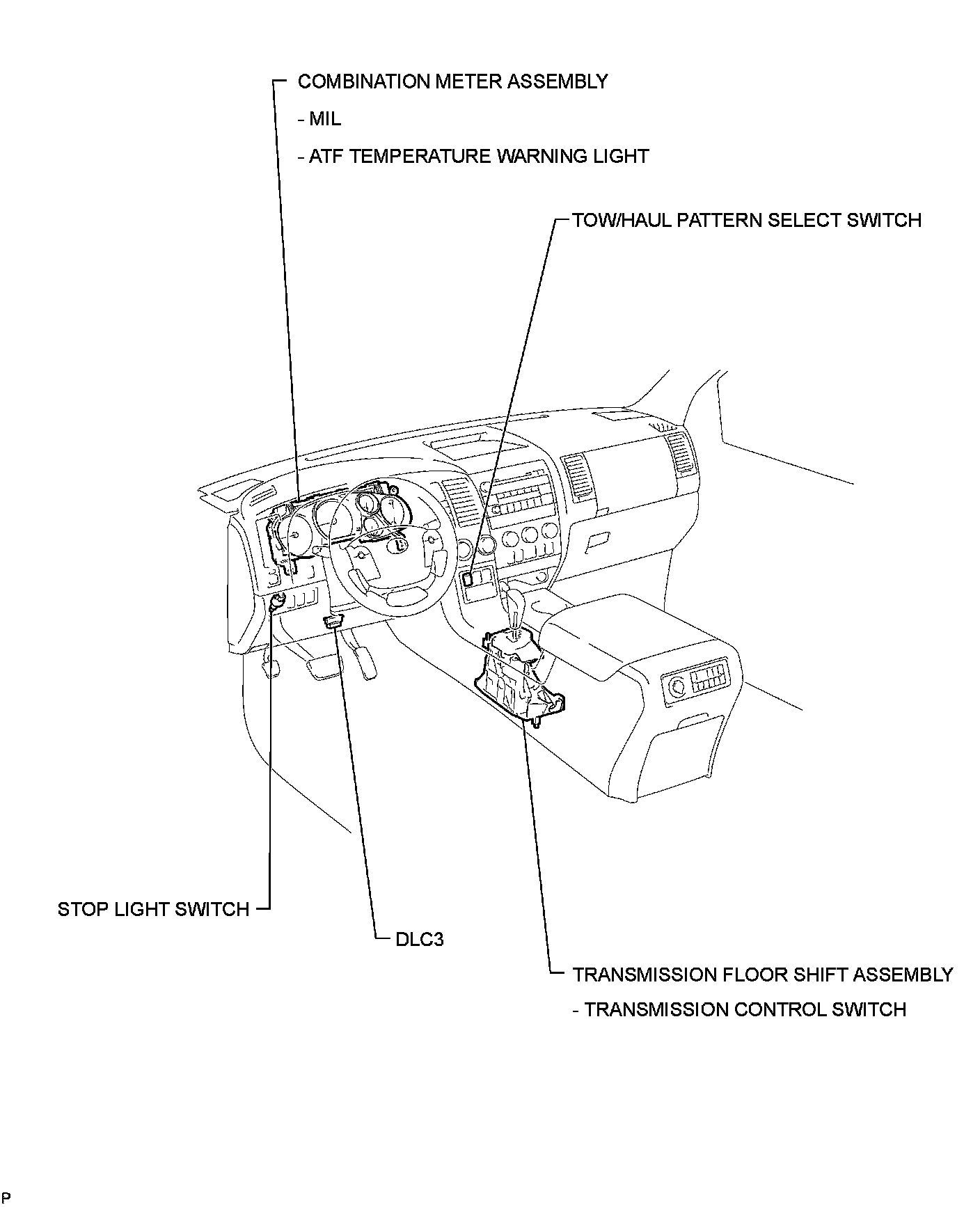

AB60E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION
