System Specifications





SPECIFICATIONS: 3UR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

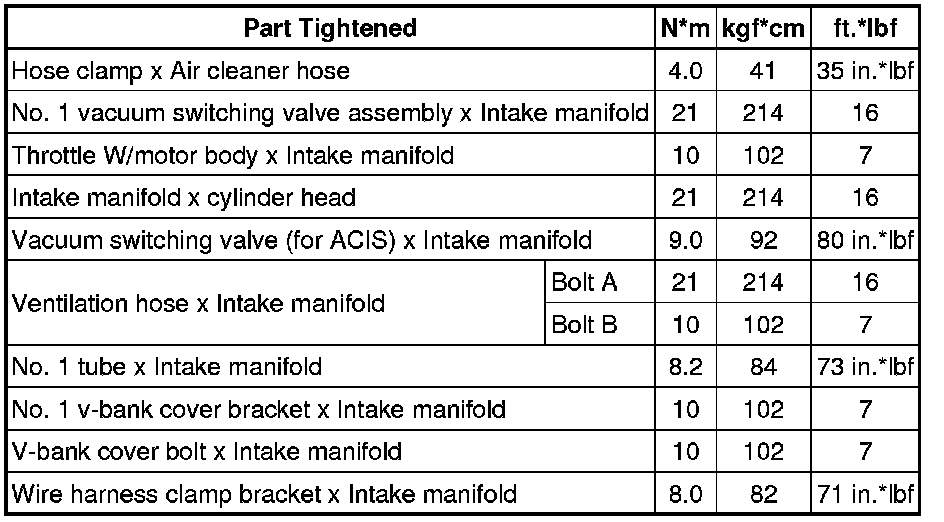

Intake manifold:

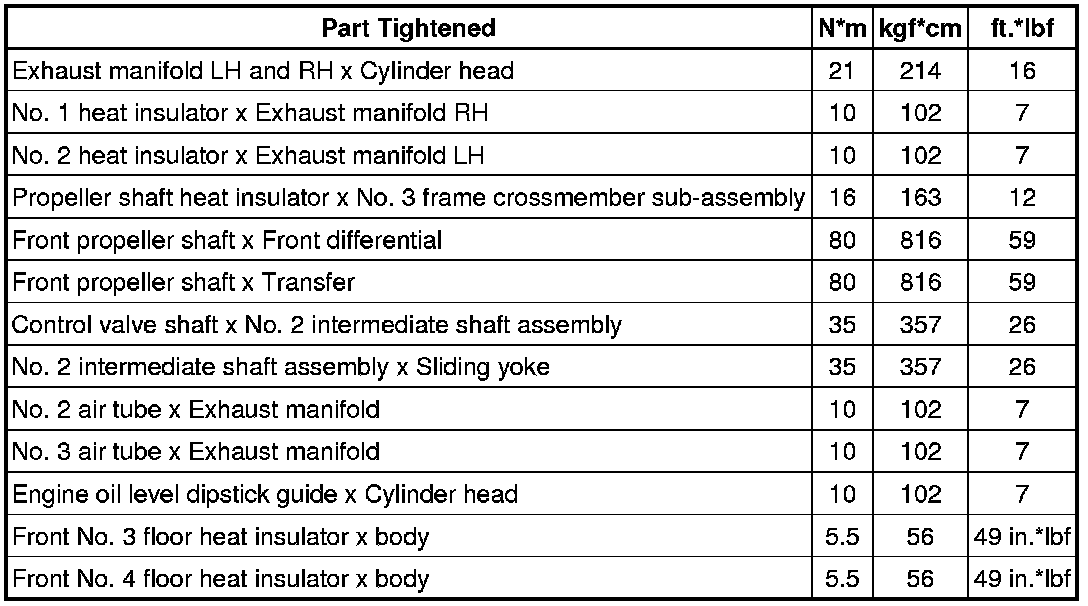

Exhaust manifold:

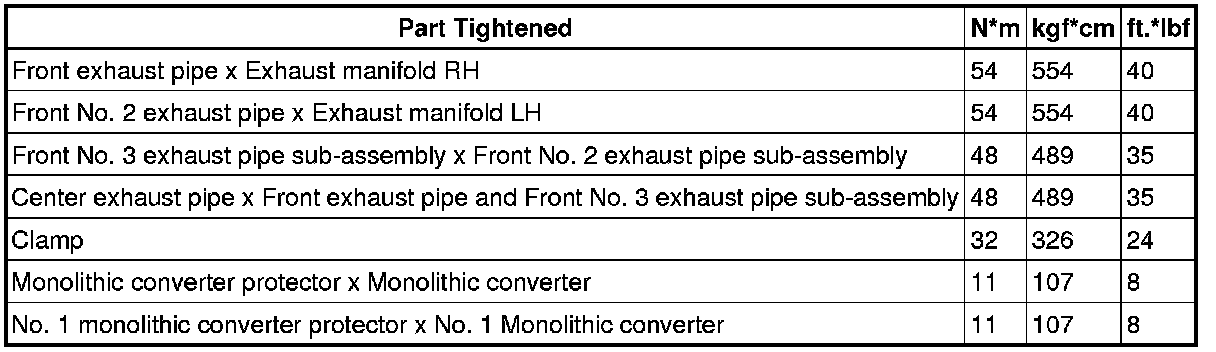

Exhaust pipe:
