Remote Control Mirror (w/ Seat Position Memory)

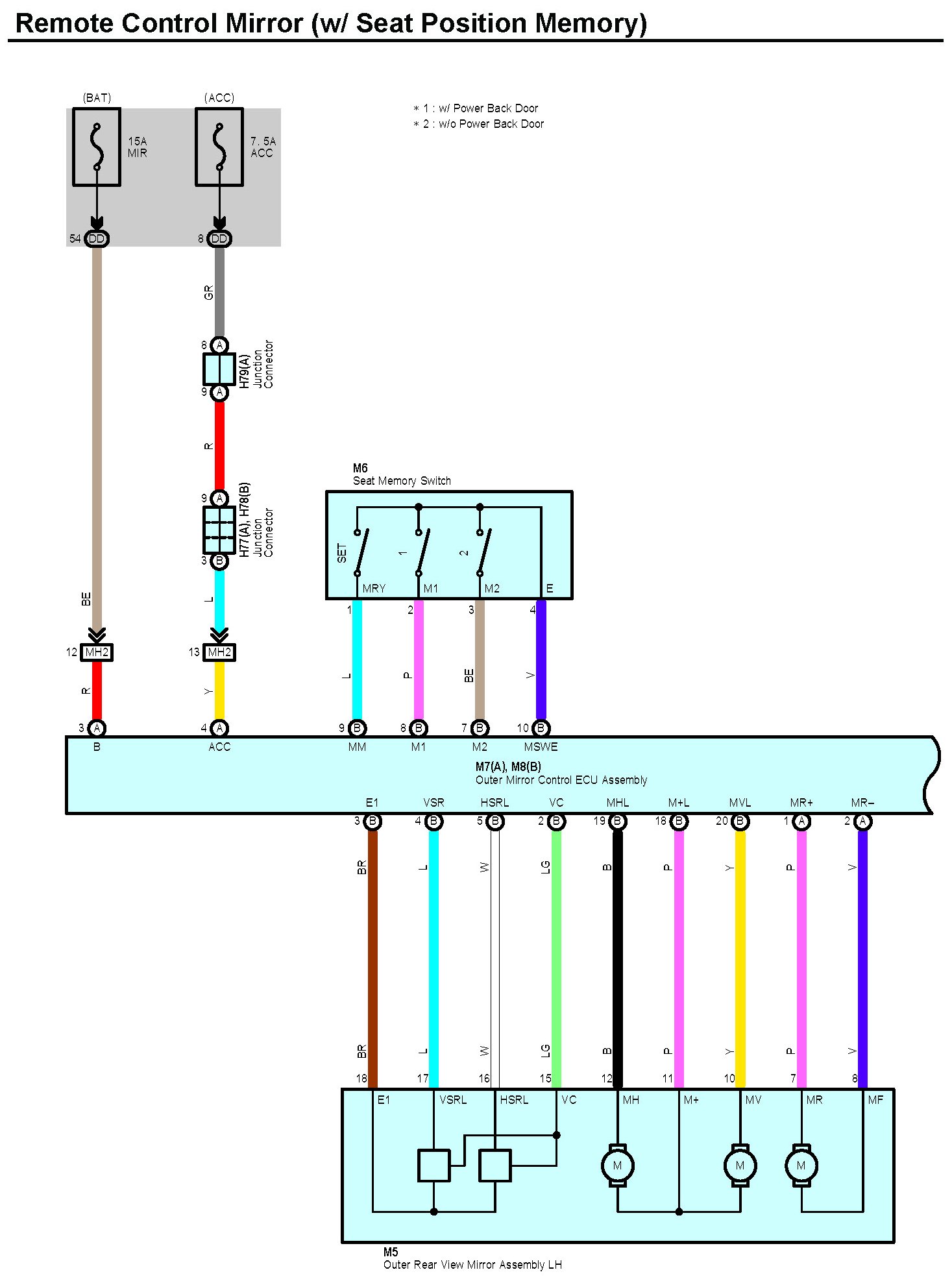

Remote Control Mirror (w/ Seat Position Memory) Part 1:

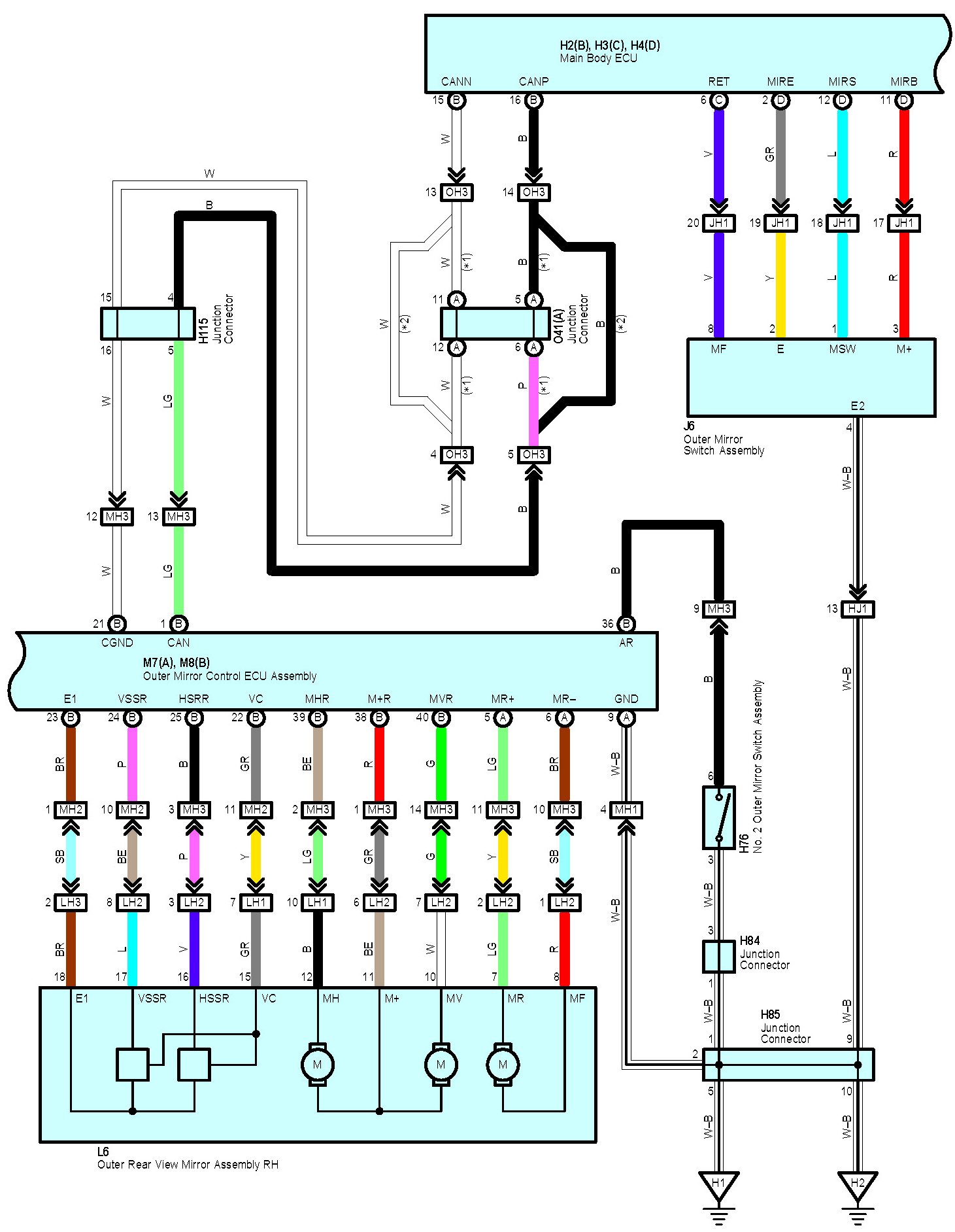

Remote Control Mirror (w/ Seat Position Memory) Part 2:

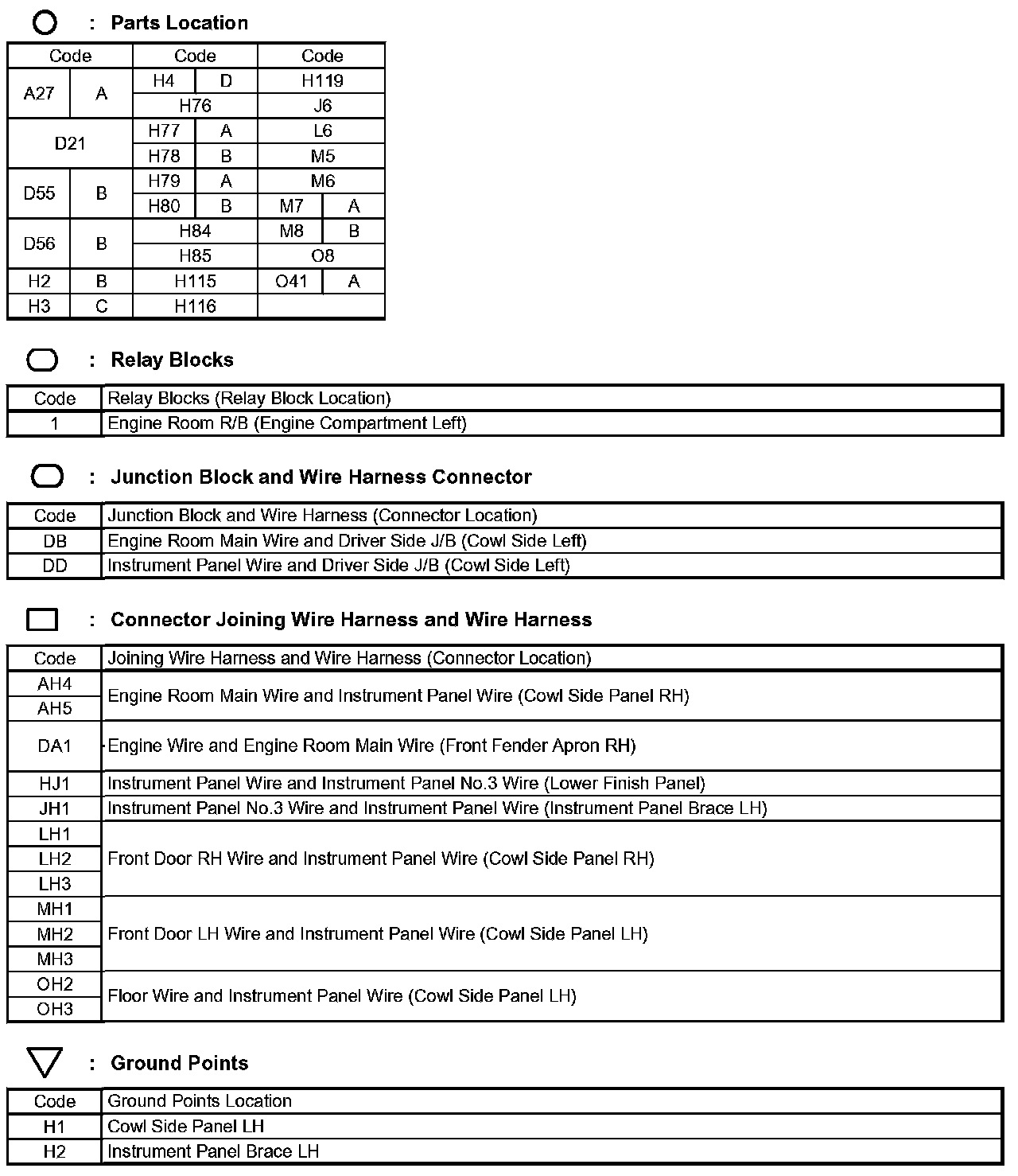

Remote Control Mirror (w/ Seat Position Memory) Part 3:

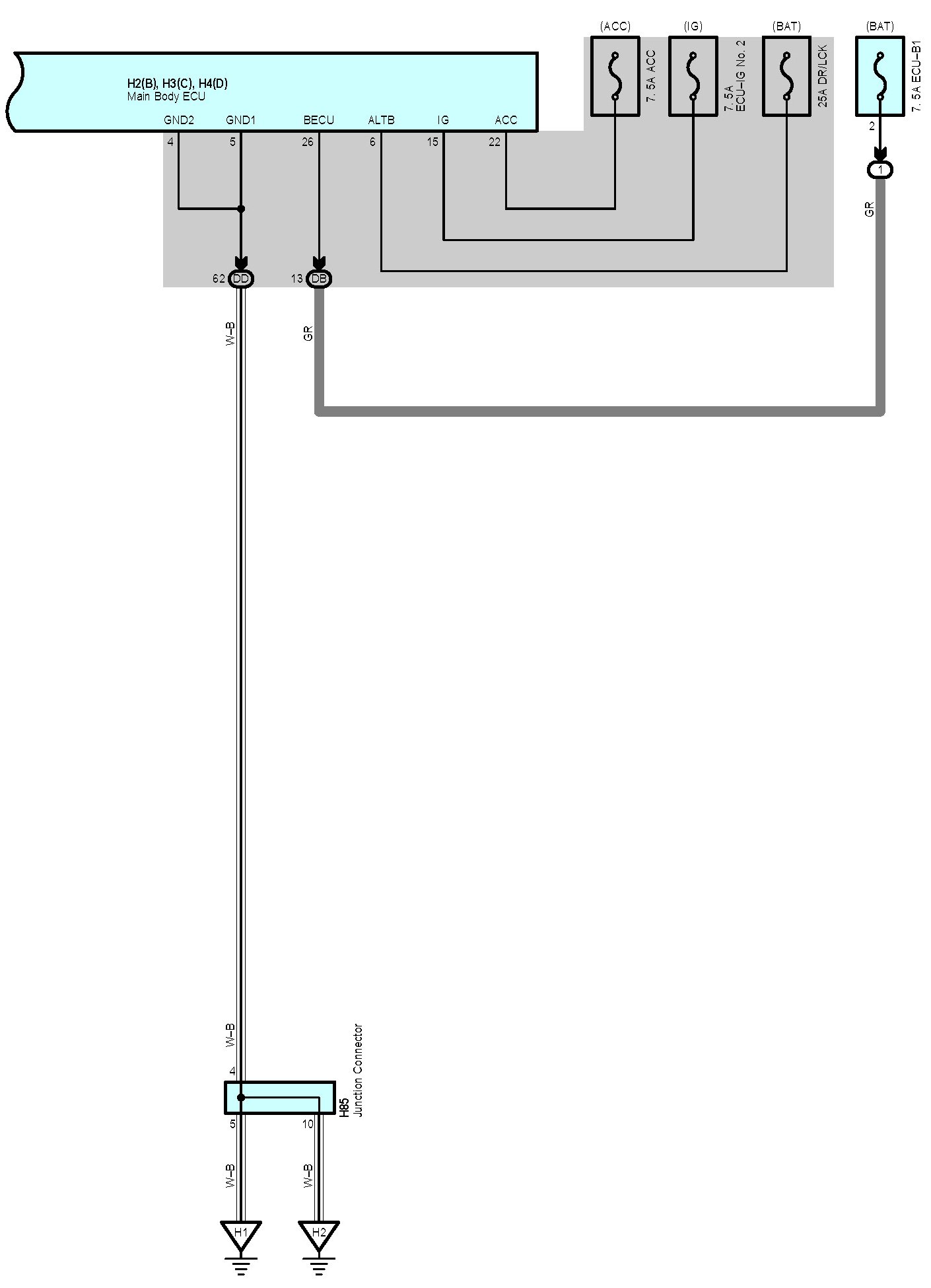

Remote Control Mirror (w/ Seat Position Memory) Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
