Electrical Diagrams

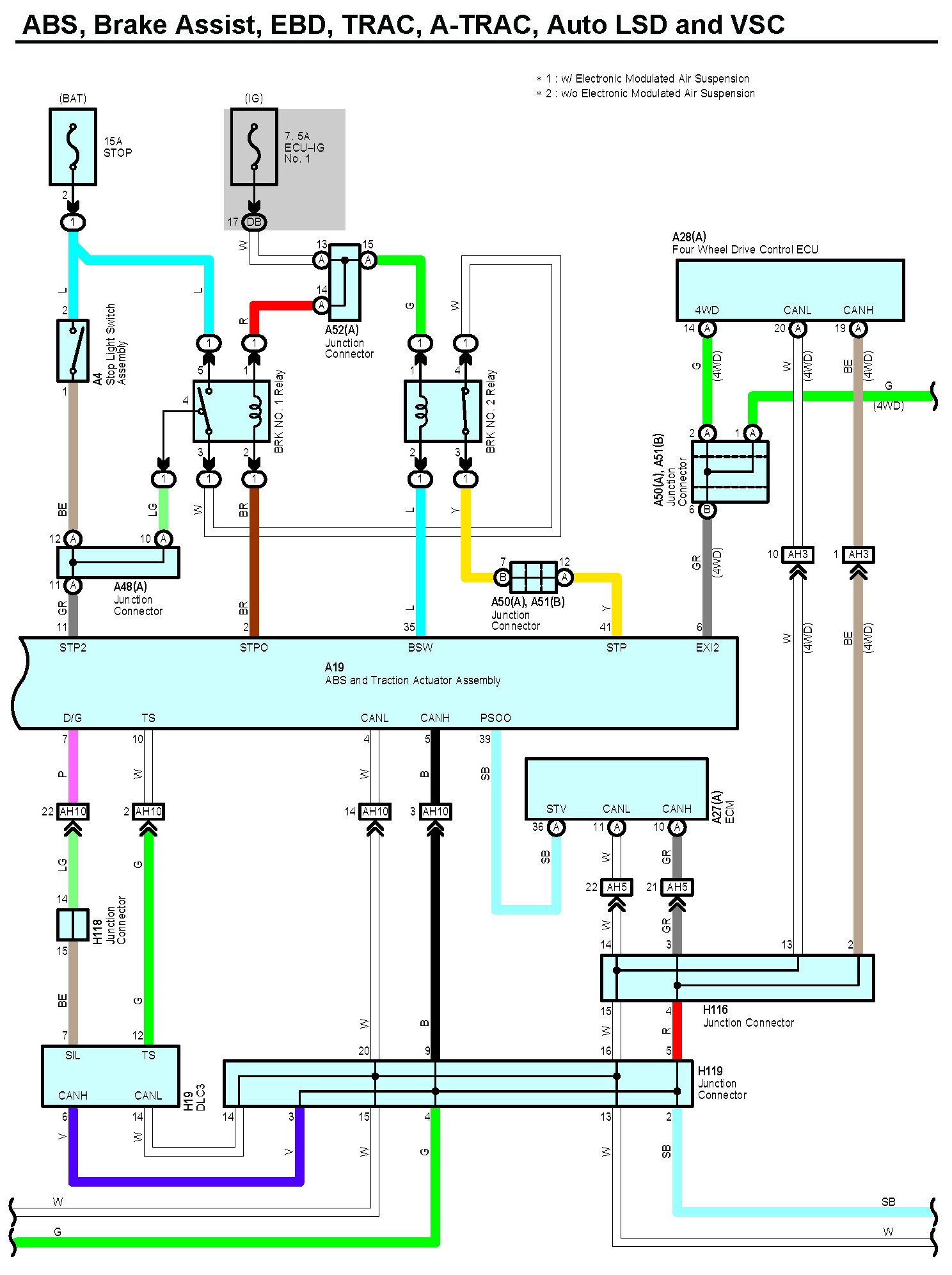

ABS, Brake Assist, EBD, TRAC, A-TRAC, Auto LSD And VSC Part 1:

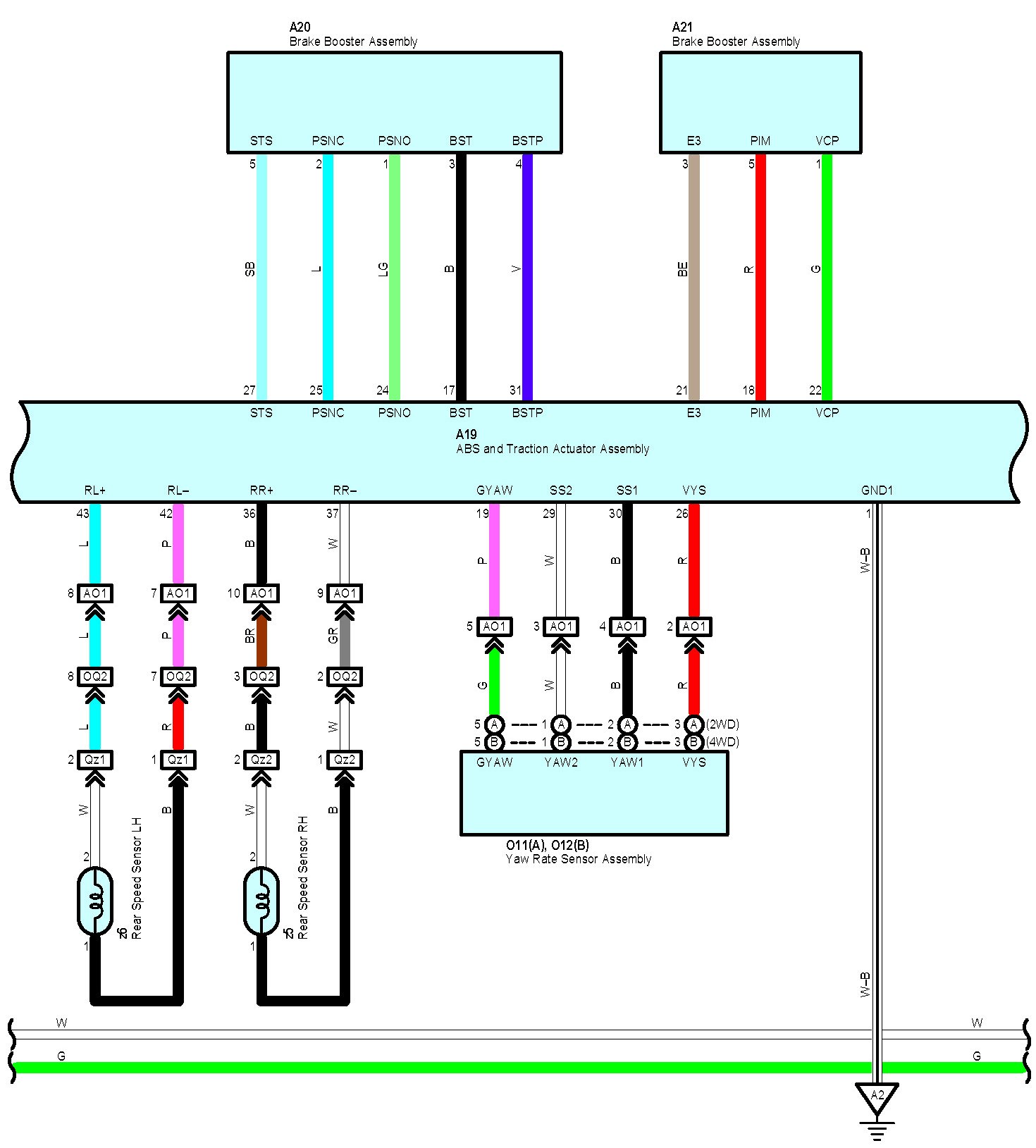

ABS, Brake Assist, EBD, TRAC, A-TRAC, Auto LSD And VSC Part 2:

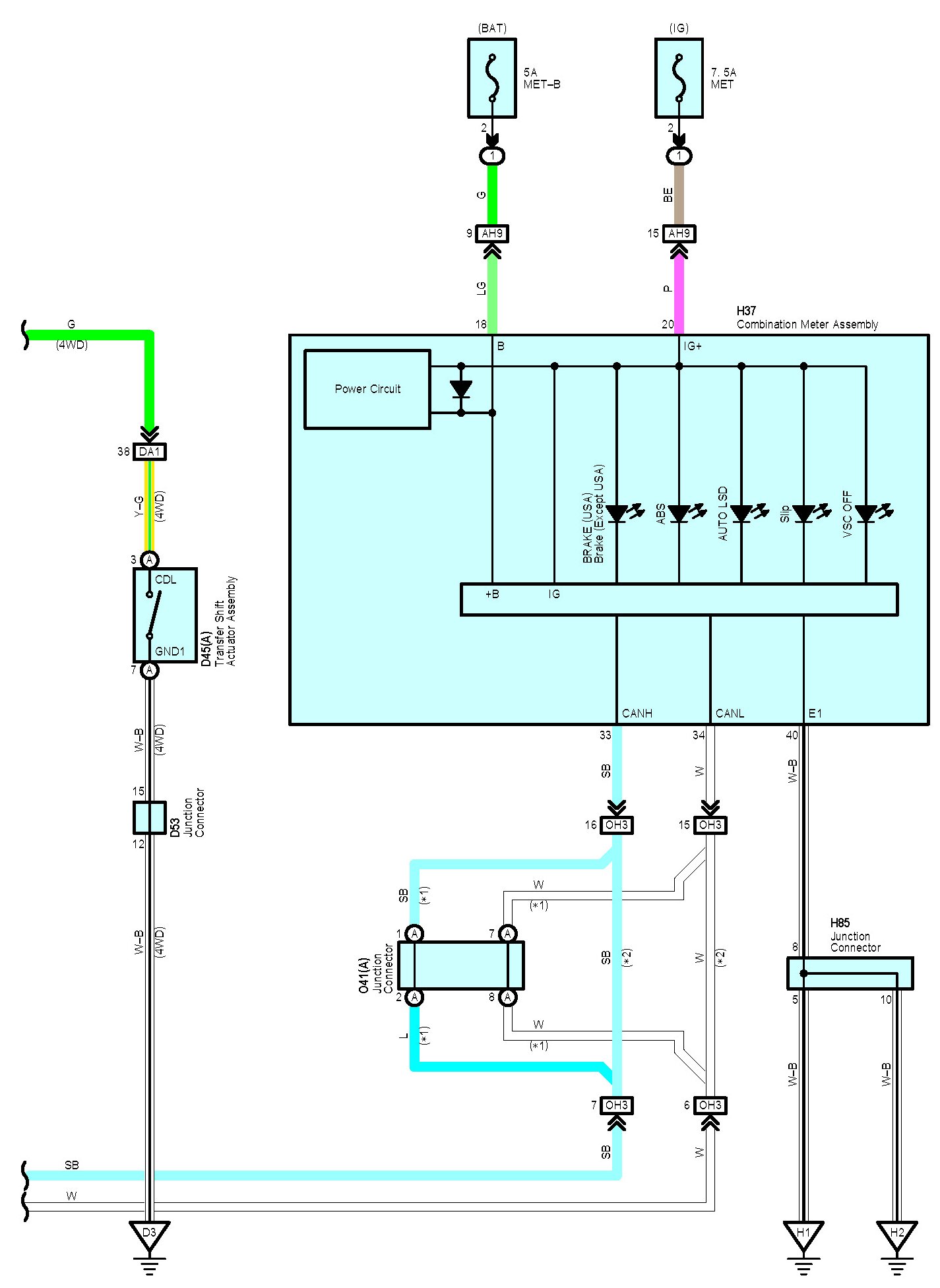

ABS, Brake Assist, EBD, TRAC, A-TRAC, Auto LSD And VSC Part 3:

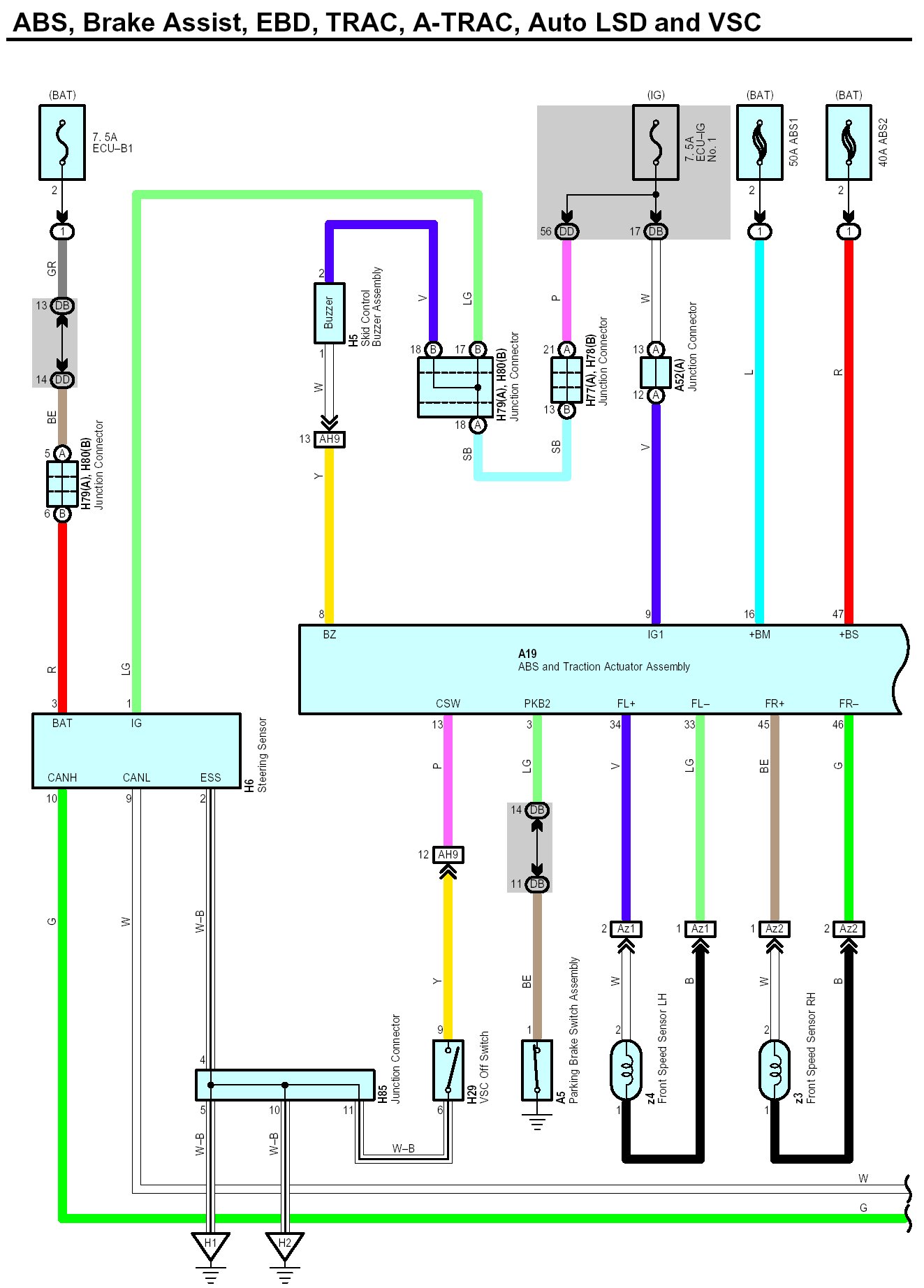

ABS, Brake Assist, EBD, TRAC, A-TRAC, Auto LSD And VSC Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
