Torque Specifications

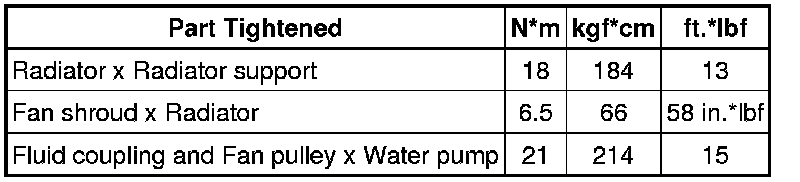

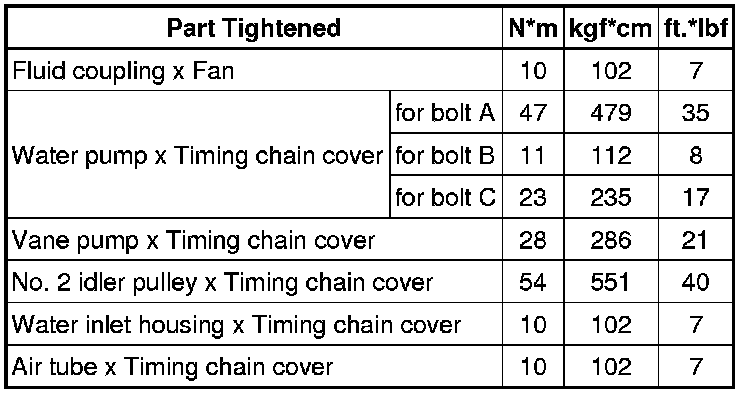

SERVICE SPECIFICATIONS: 1GR-FE COOLING: TORQUE SPECIFICATIONS

Cylinder block drain cock plug





Water pump





Thermostat





Radiator
