Service Data





SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

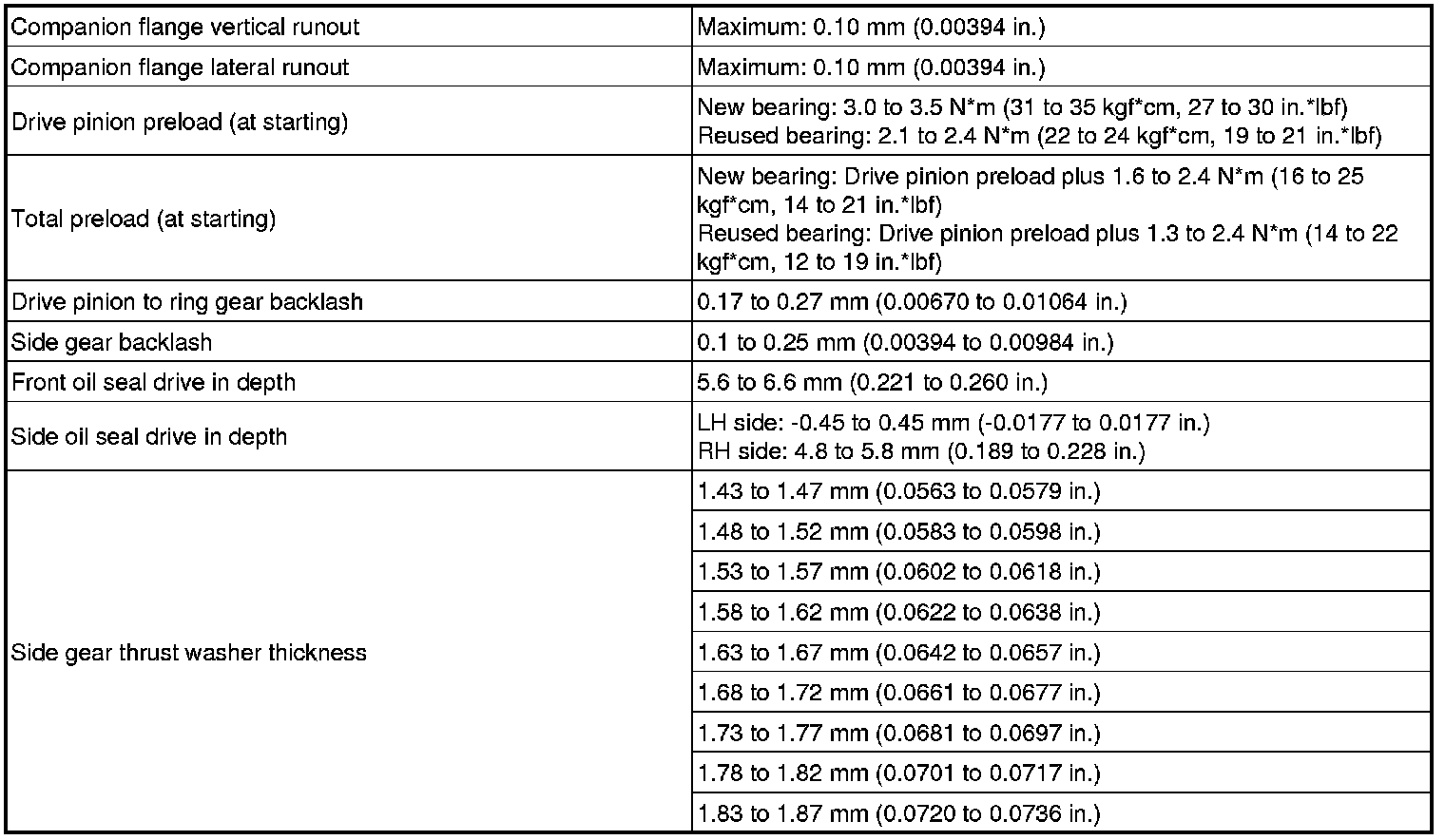

Front Differential

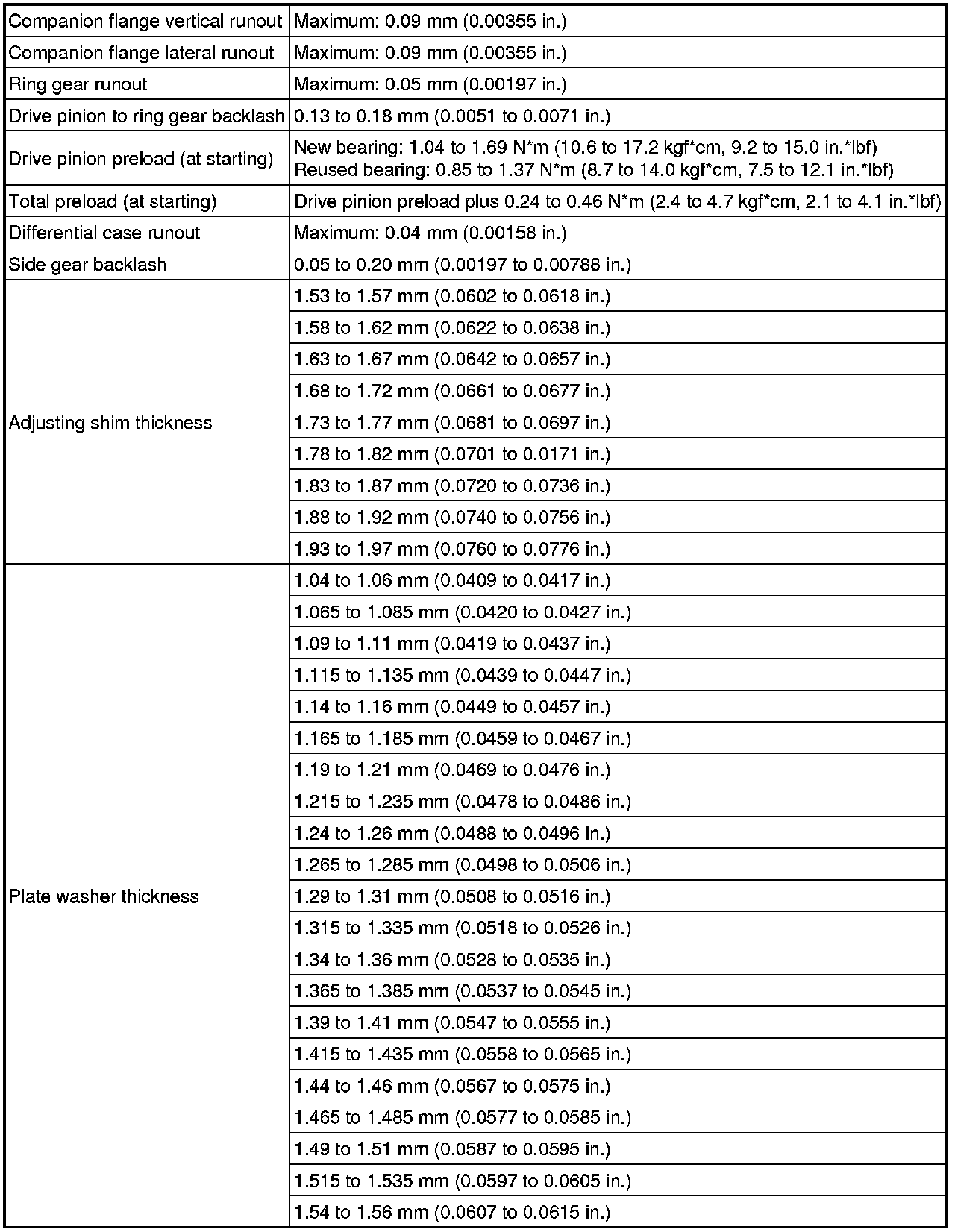

Rear Differential (for 1GR-FE, 1UR-FE)





Rear Differential (for 3UR-FE. 3UR-FBE)
