Relay Box

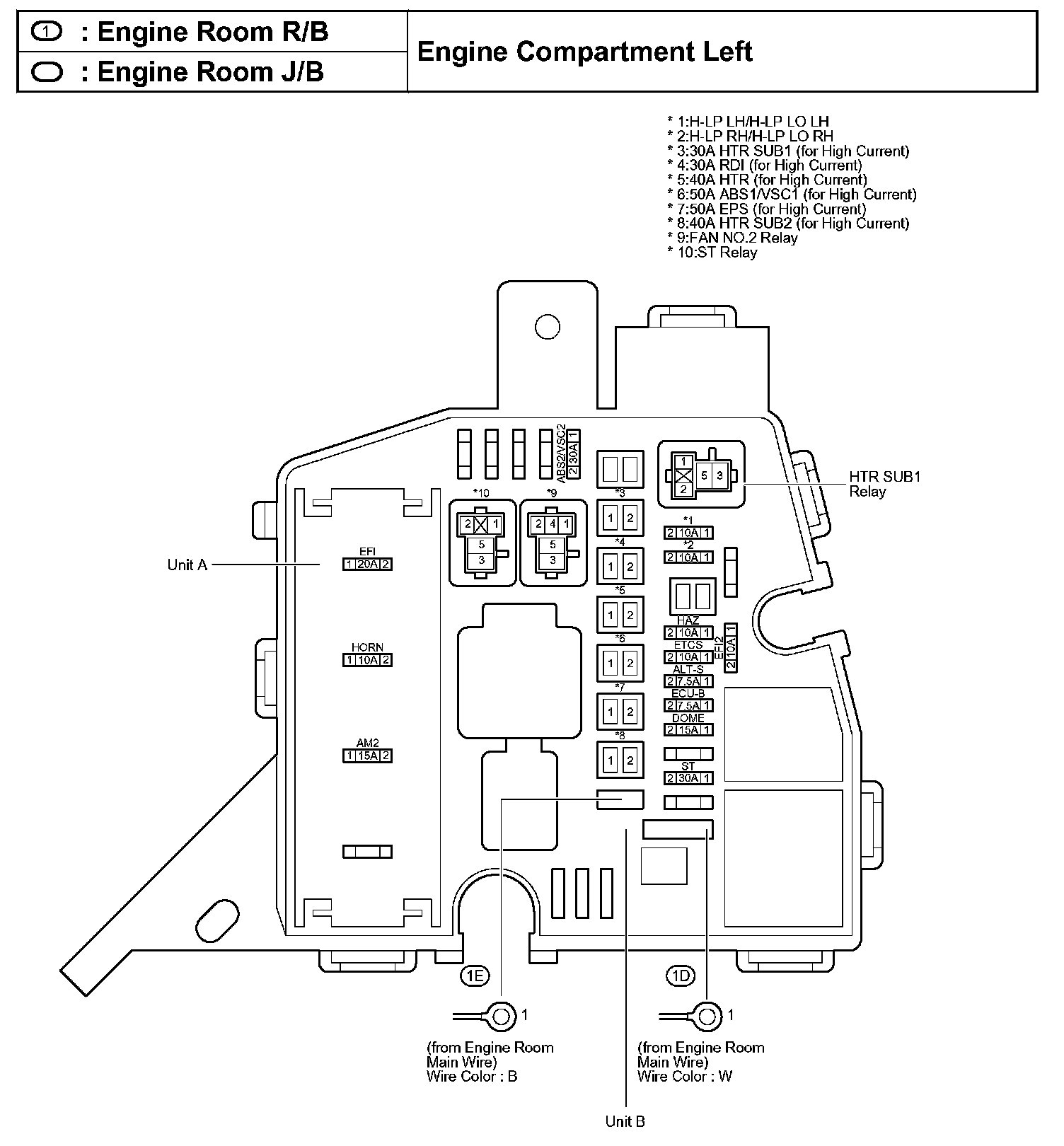

Engine Room R/B, J/B - Engine Compartment Left Part 1:

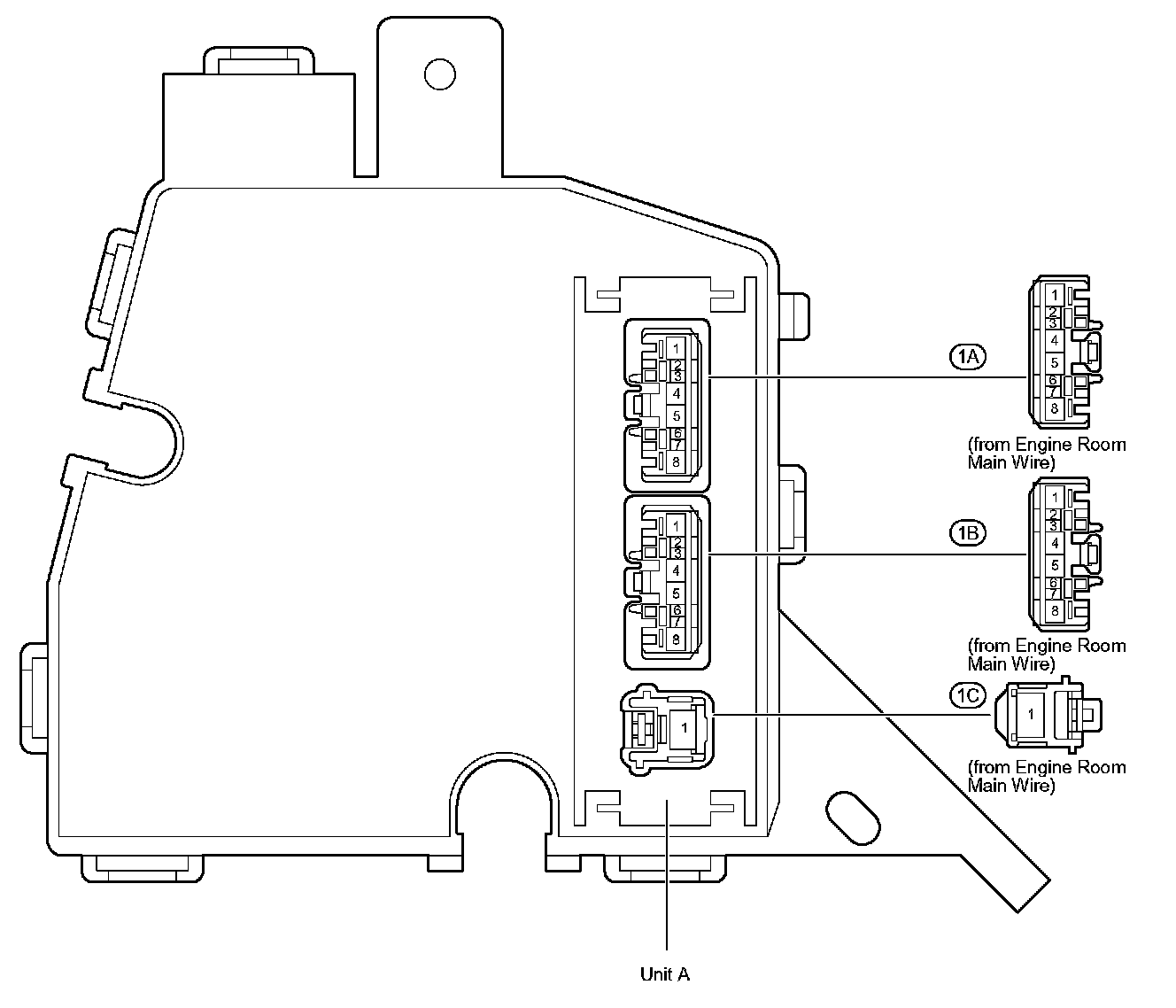

Engine Room R/B, J/B - Engine Compartment Left Part 2:

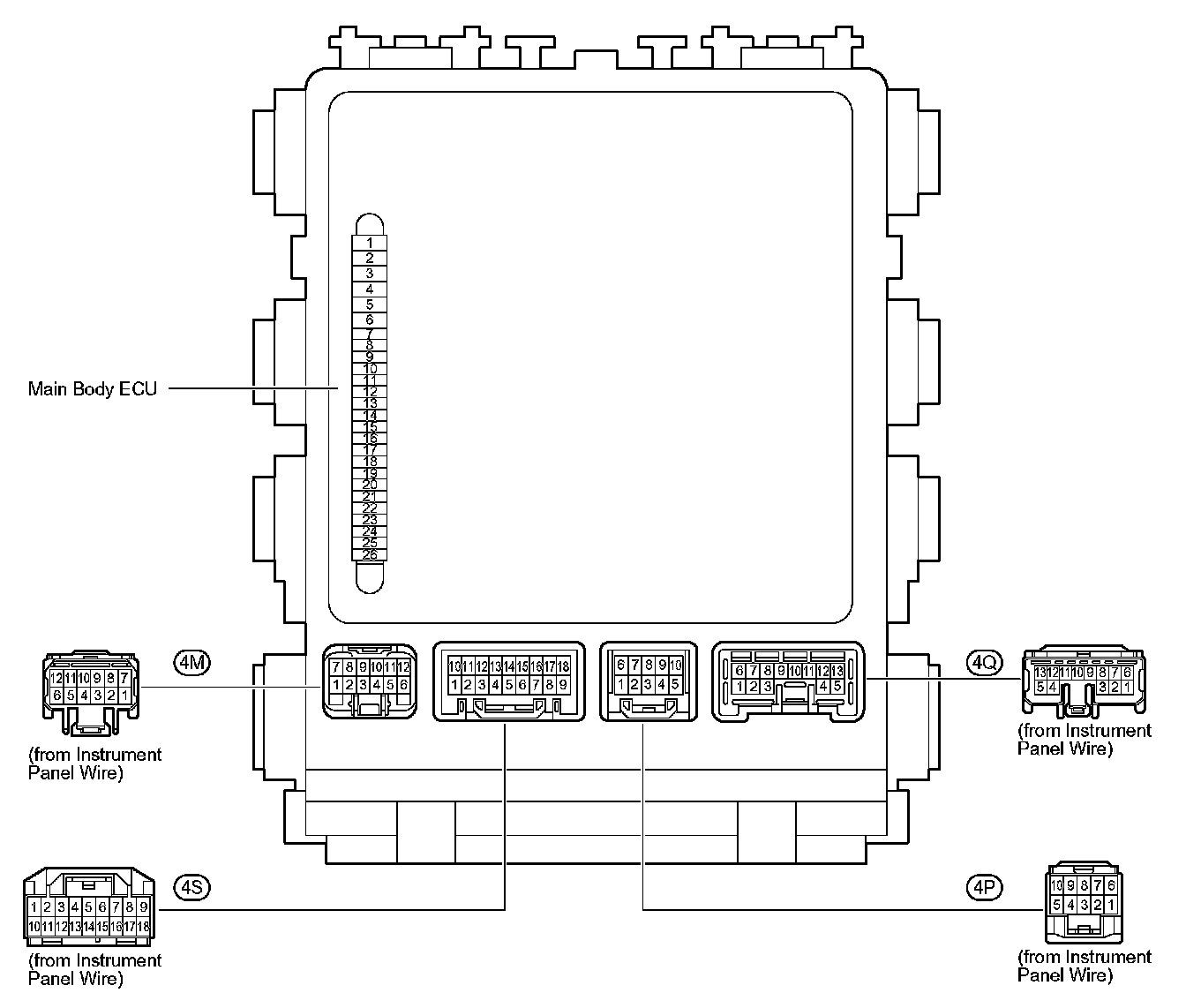

Instrument Panel J/B - Lower Finish Panel Part 1:

Instrument Panel J/B - Lower Finish Panel Part 2:

J/B No.5 - Left Kick Panel:

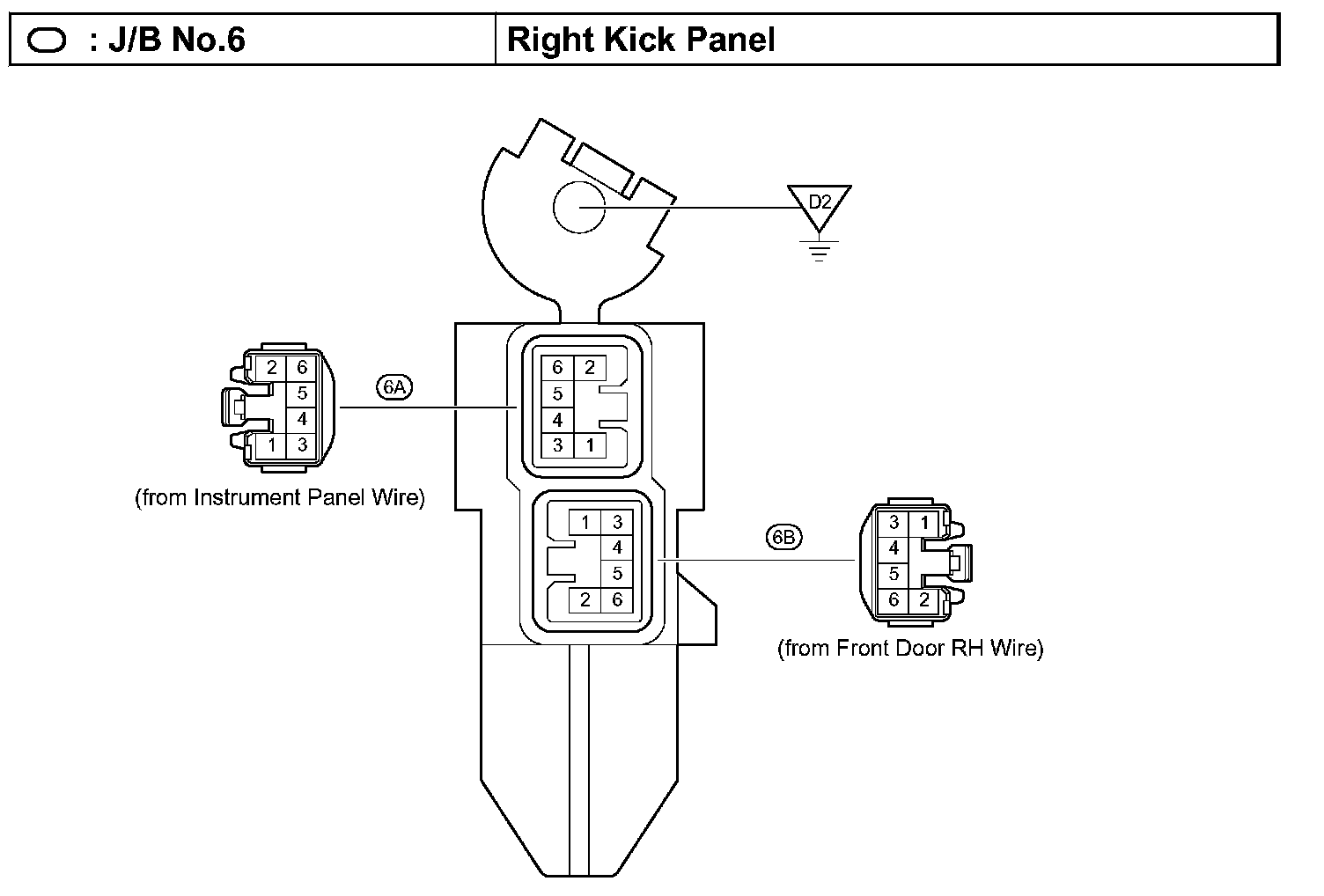

J/B No.6 - Right Kick Panel:

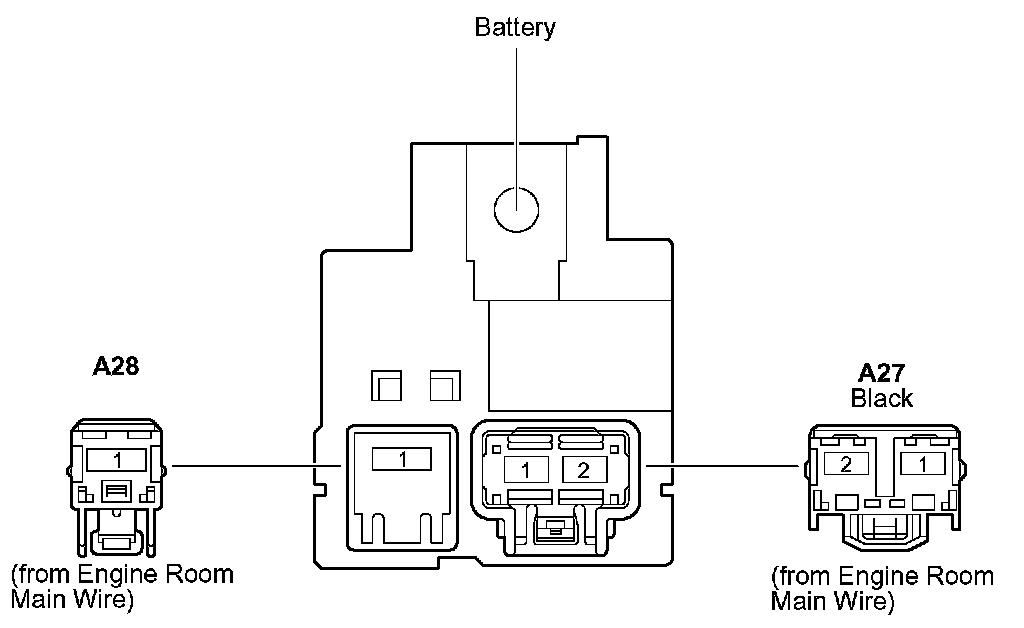

Fusible Link Block - Near The Battery Part 1:

Fusible Link Block - Near The Battery Part 2:

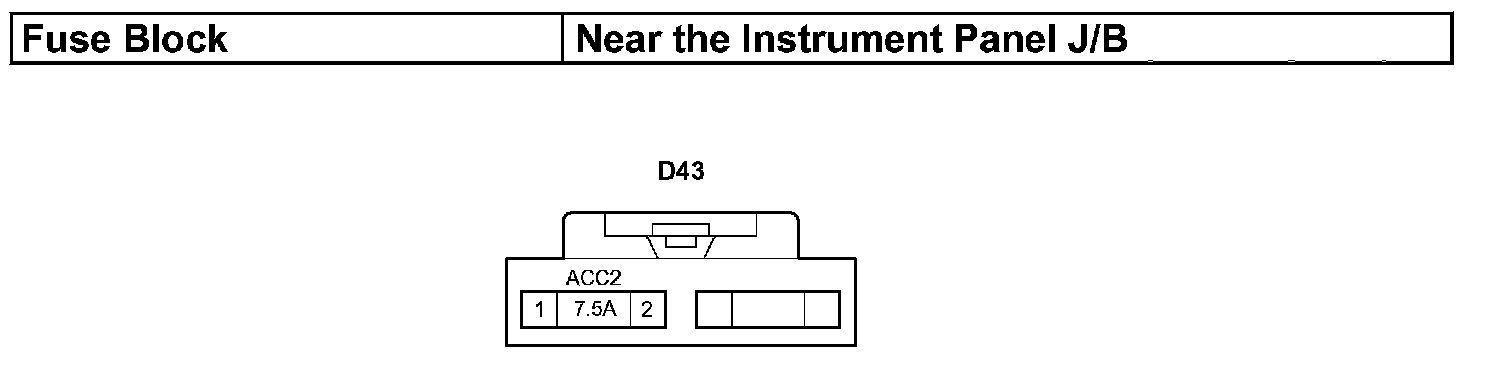

Fuse Block - Near The Instrument Panel J/B:
