Installation

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

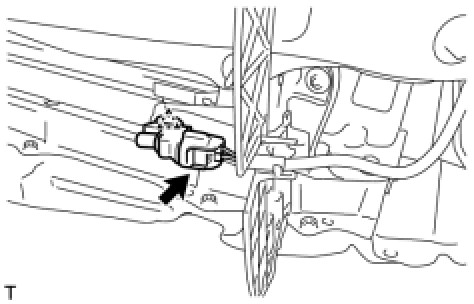

1. INSTALL AMBIENT TEMPERATURE SENSOR





(a) Engage the clamp and install the ambient temperature sensor.

(b) Connect the connector.

2. INSTALL FRONT BUMPER COVER (for Hatchback) Installation

3. INSTALL FRONT BUMPER COVER (for Sedan) Installation

4. INSTALL FRONT SPOILER COVER (for Sedan) Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
