Torque Specifications





SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

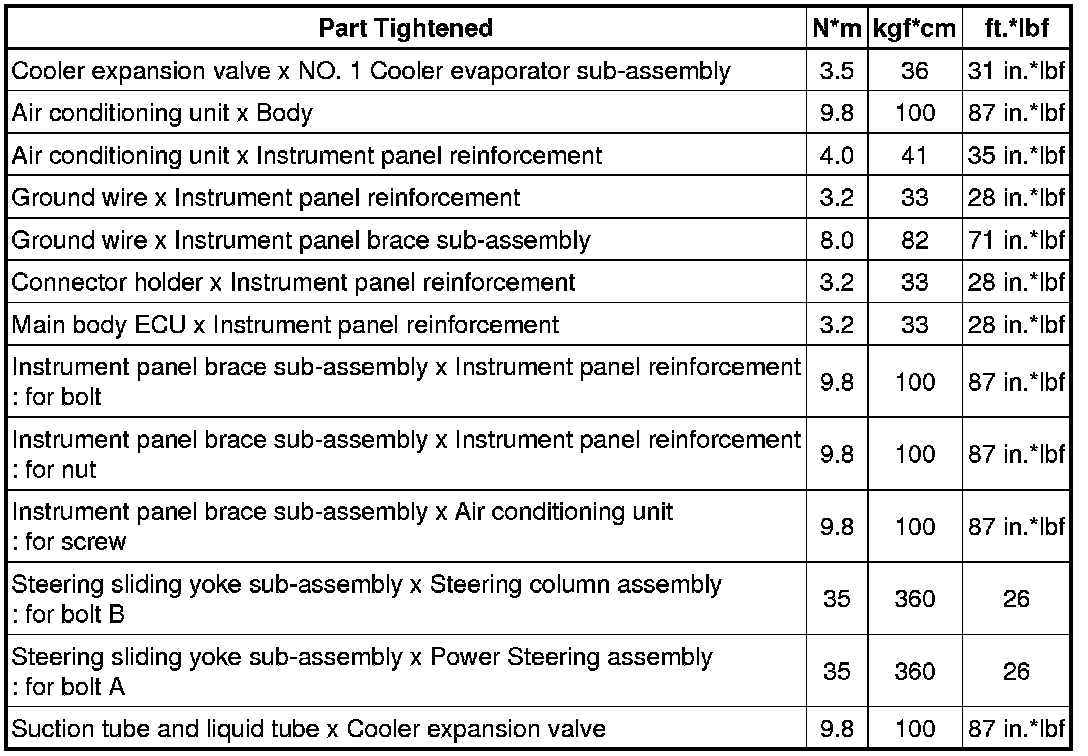

AIR CONDITIONING UNIT (for Hatchback)





AIR CONDITIONING UNIT (for Sedan)

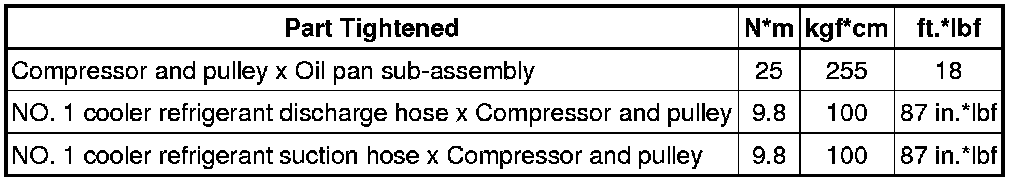

COMPRESSOR AND PULLEY

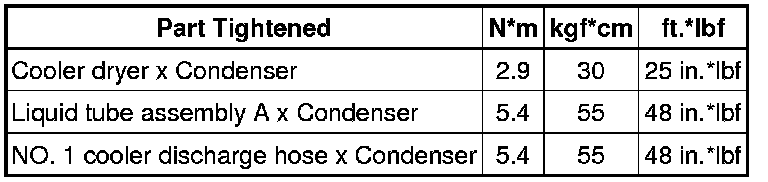

CONDENSER
