Programming and Relearning

LIGHTING: LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT
The following items can be customized.

NOTICE:
* When the customer requests modification of items, first make sure that the functions can be customized.
* Make a note of the current settings before customization.
* When troubleshooting items, first make sure that the functions are set to their default settings.

(a) Connect a Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the tester on.

(d) Enter the following menus: Customize Setting /

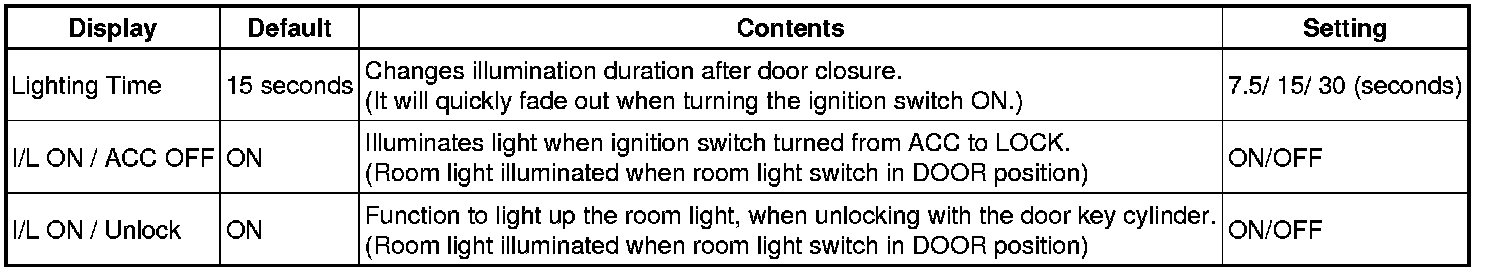

(e) Select the setting by referring to the table below.

Main Body (Main Body ECU):





HINT
Sensitivity adjustments are difficult to confirm. Check by driving the customer's vehicle.
