Connector Locations
Connector Locations

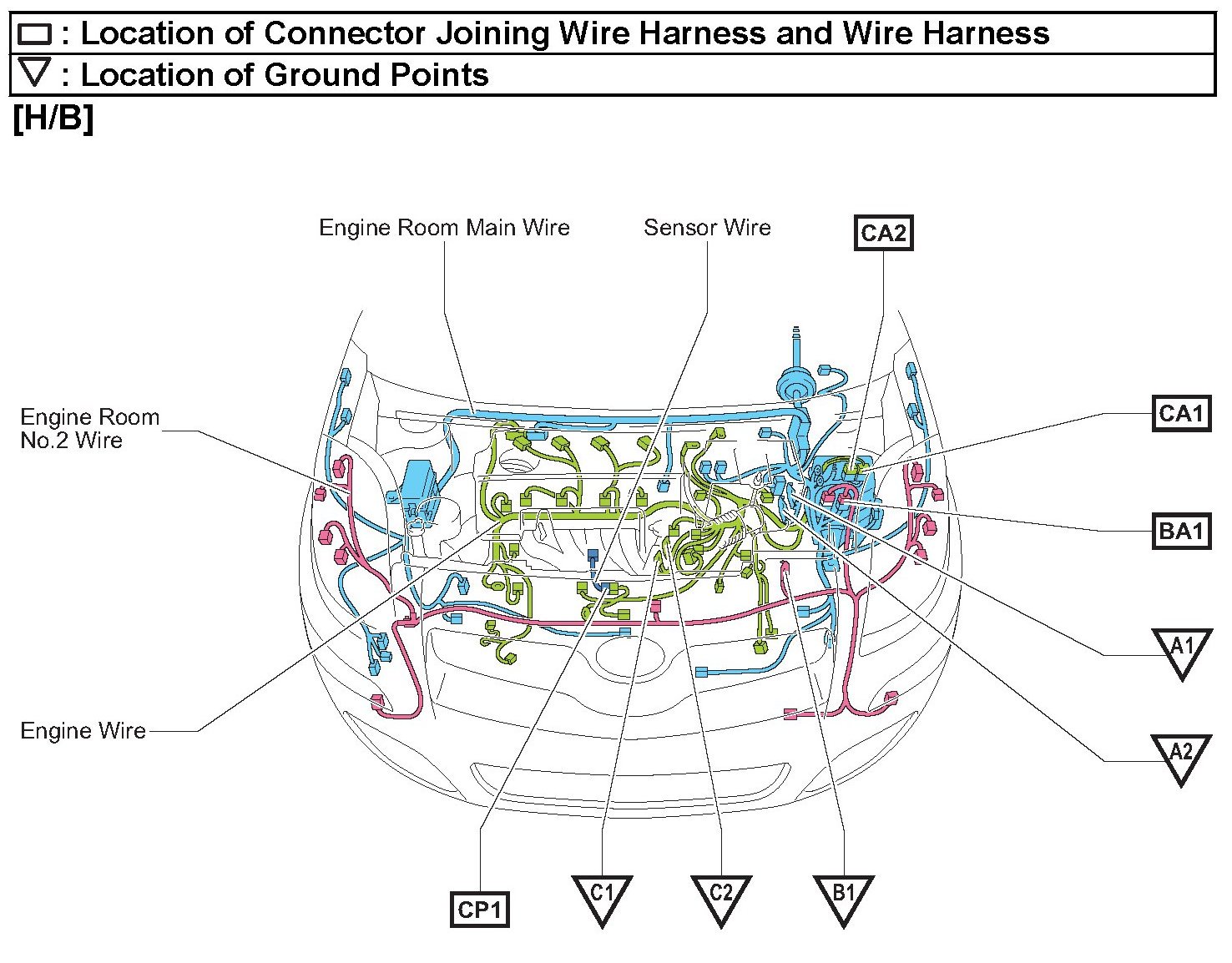

BA1-CP1 / A1-C2:

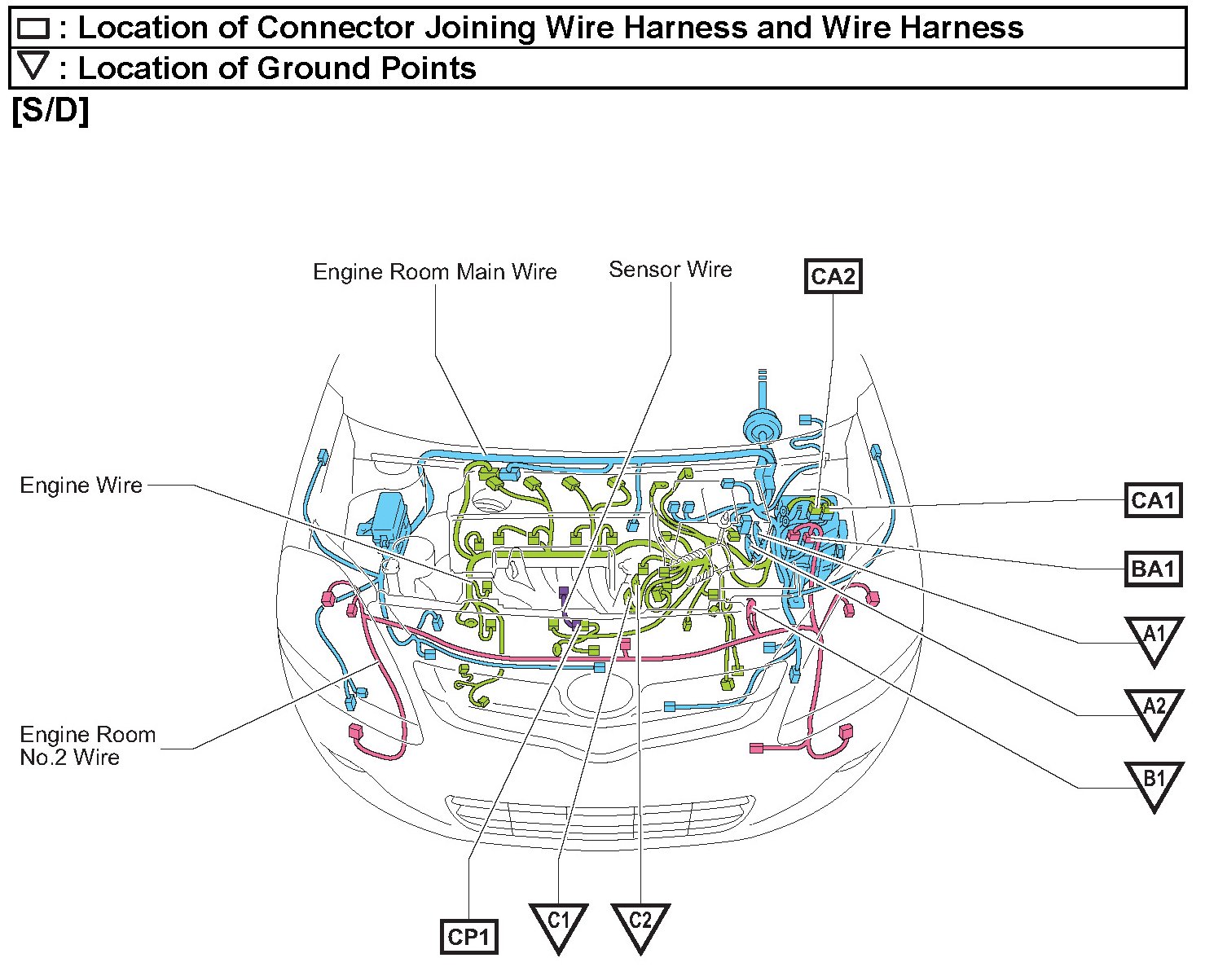

BA1-CP1 / A1-C2:

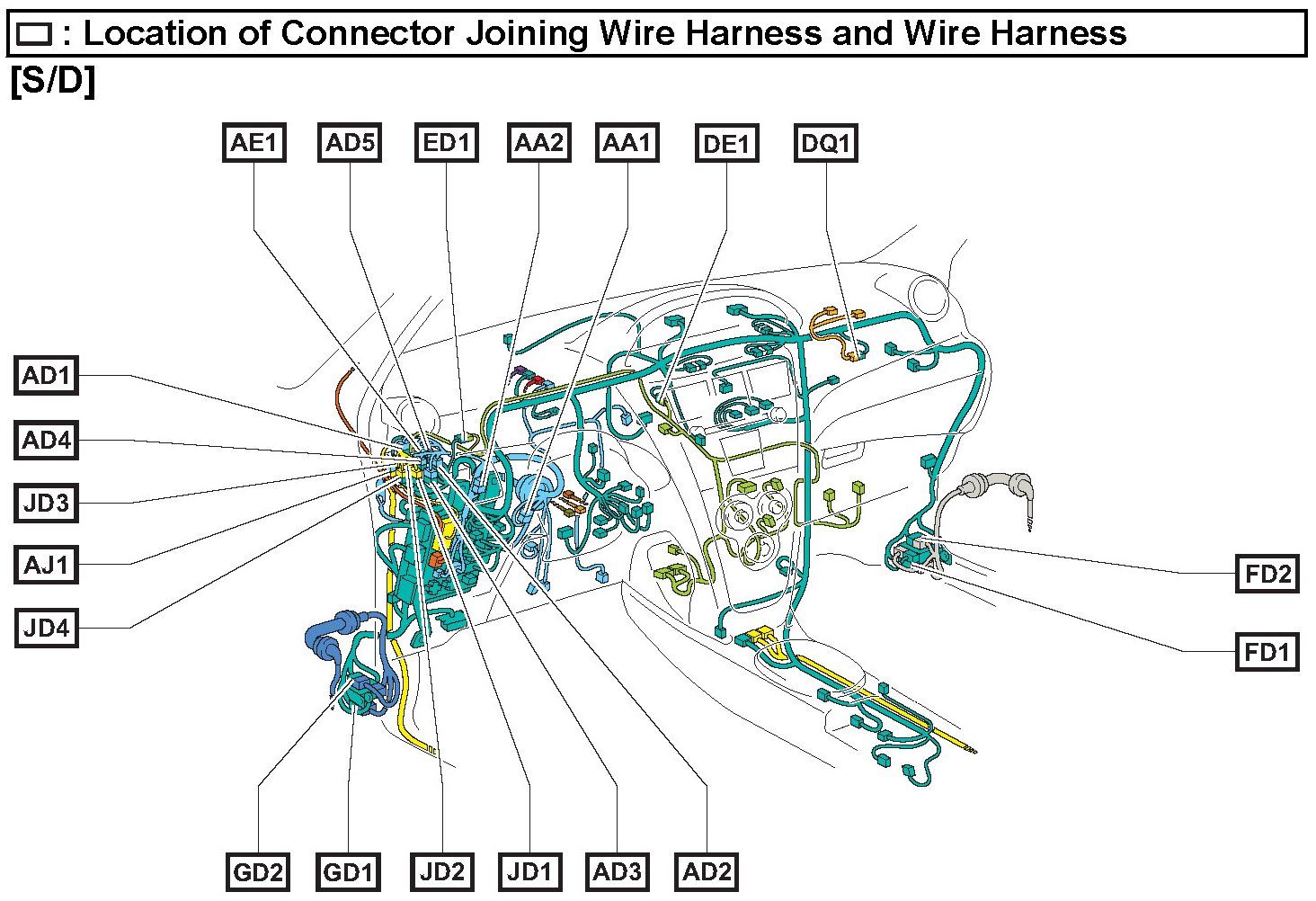

AA2-JD3:

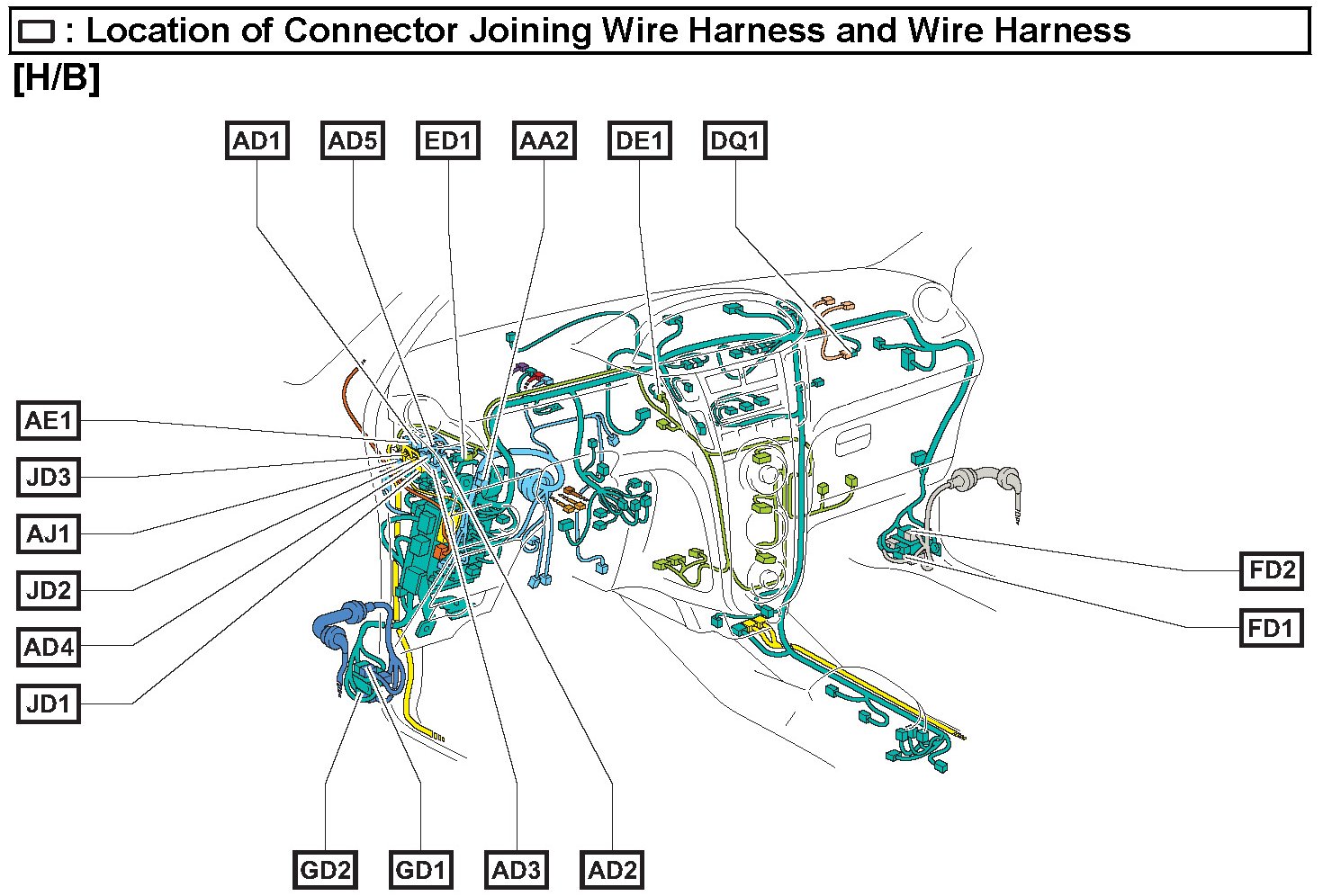

AA1-JD4:

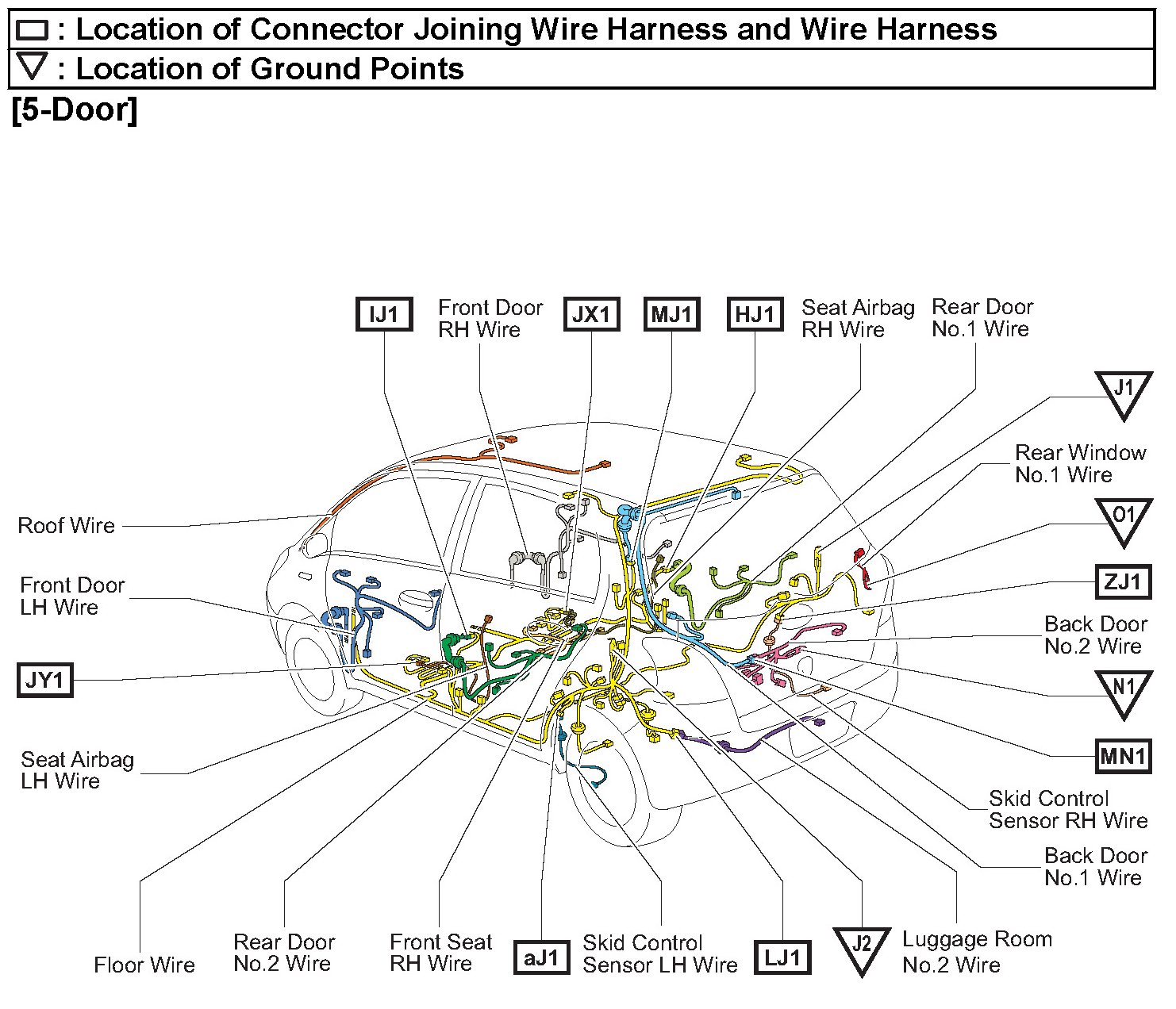

aJ1-ZJ1 / J1-O1:

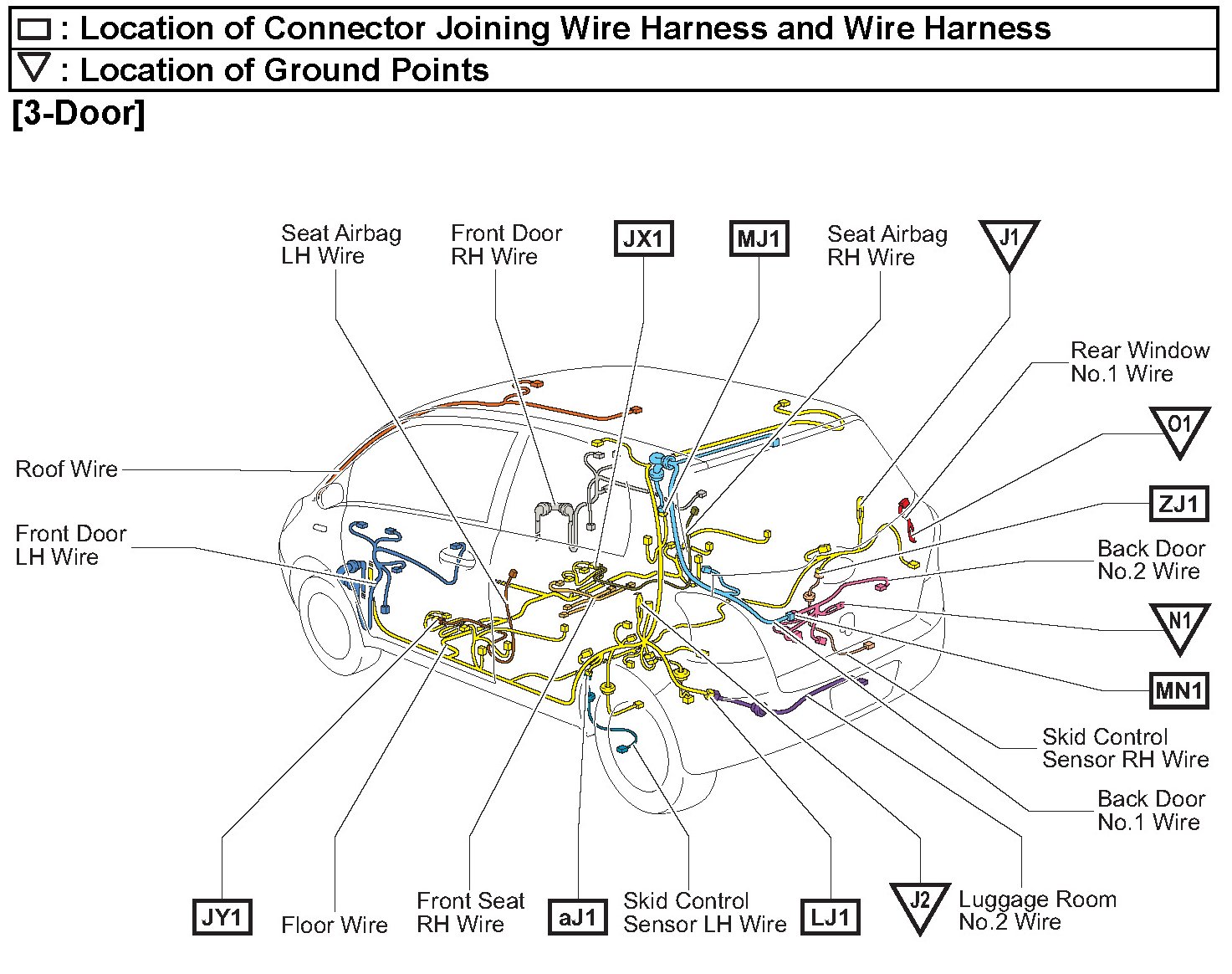

aJ1-ZJ1 / J1-O1:

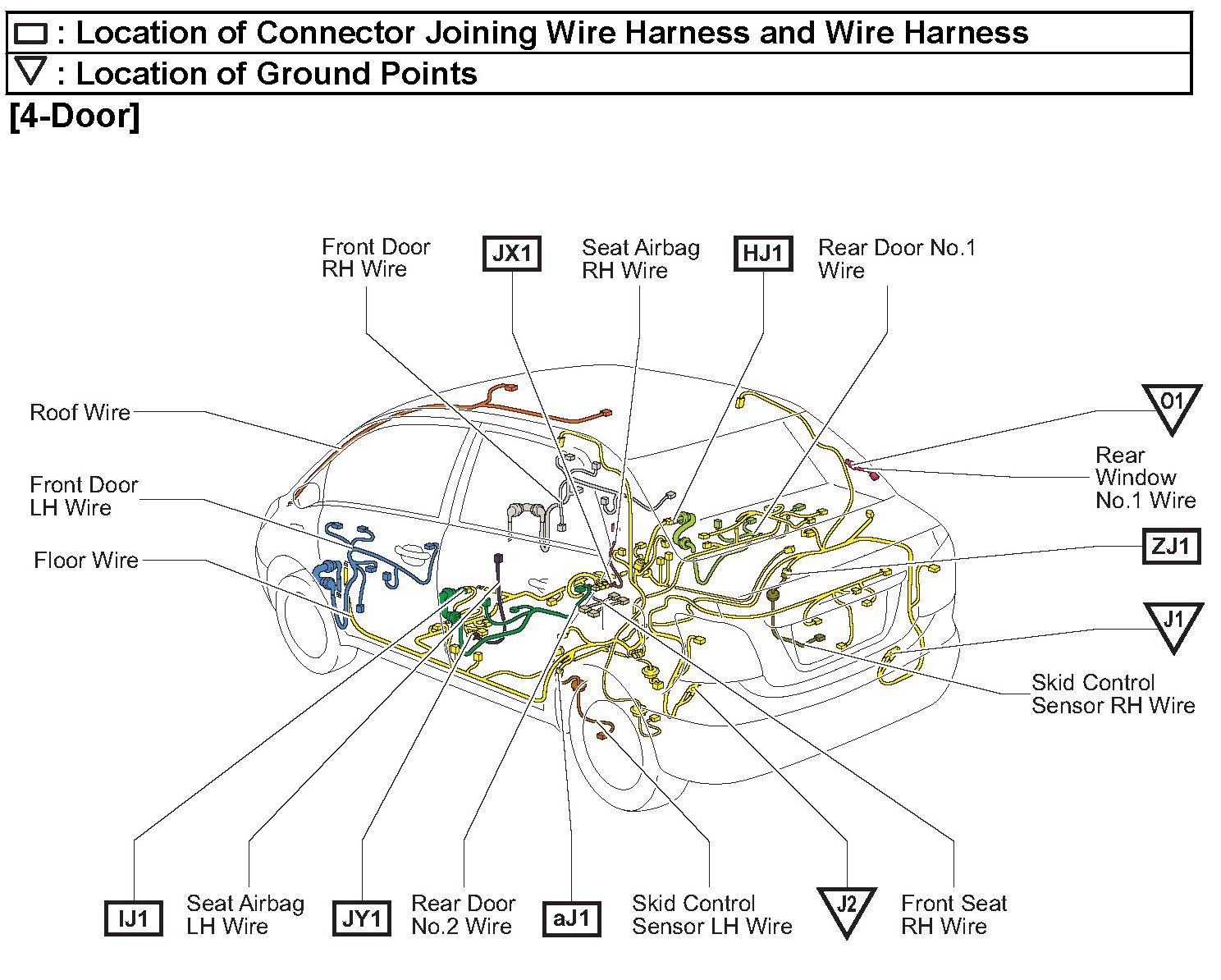

aJ1-ZJ1 / J1-O1:
