Rear Wheel Alignment

SUSPENSION: REAR WHEEL ALIGNMENT: INSPECTION

1. INSPECT TIRES Testing and Inspection

2. MEASURE VEHICLE HEIGHT Front Wheel Alignment

3. INSPECT CAMBER

(a) Install the camber-caster-kingpin gauge and position the rear wheel on the alignment tester.

(b) Inspect the camber.

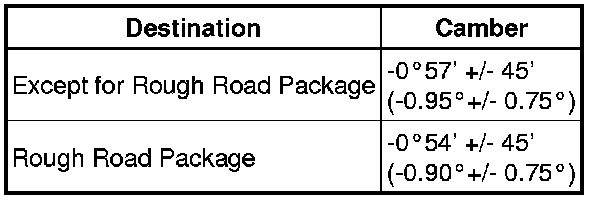

Camber (Unloaded Vehicle):

Hatchback
Sedan










NOTICE:
The tolerance for the difference between the left and right wheels is 0°30' (0.5°) or less for both cambers.

If the camber is not within the specified range, inspect the suspension parts and replace them if necessary.

4. INSPECT TOE-IN

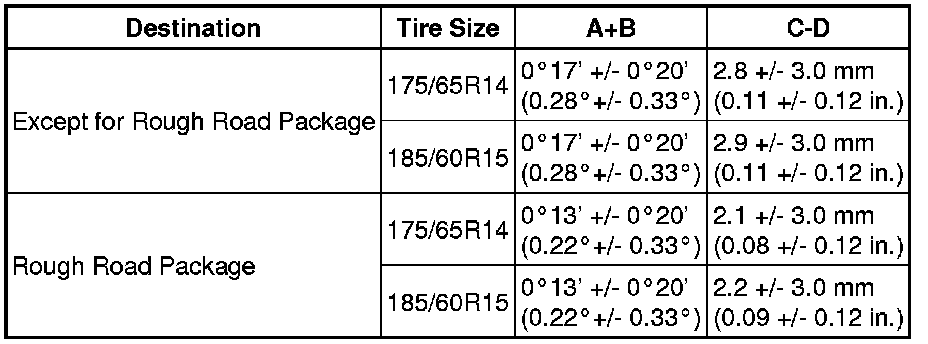

Toe-in (Unloaded Vehicle):

Hatchback
Sedan










HINT
Only measure C-D when A+B can not be measured.
