Installation

1NZ-FE STARTING: ACC CUT RELAY: INSTALLATION

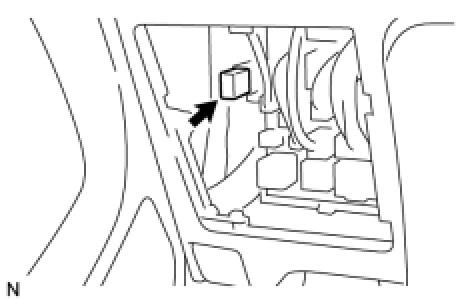

1. INSTALL ACC CUT RELAY





(a) Install the ACC cut relay.

2. INSTALL INSTRUMENT PANEL BOX Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
